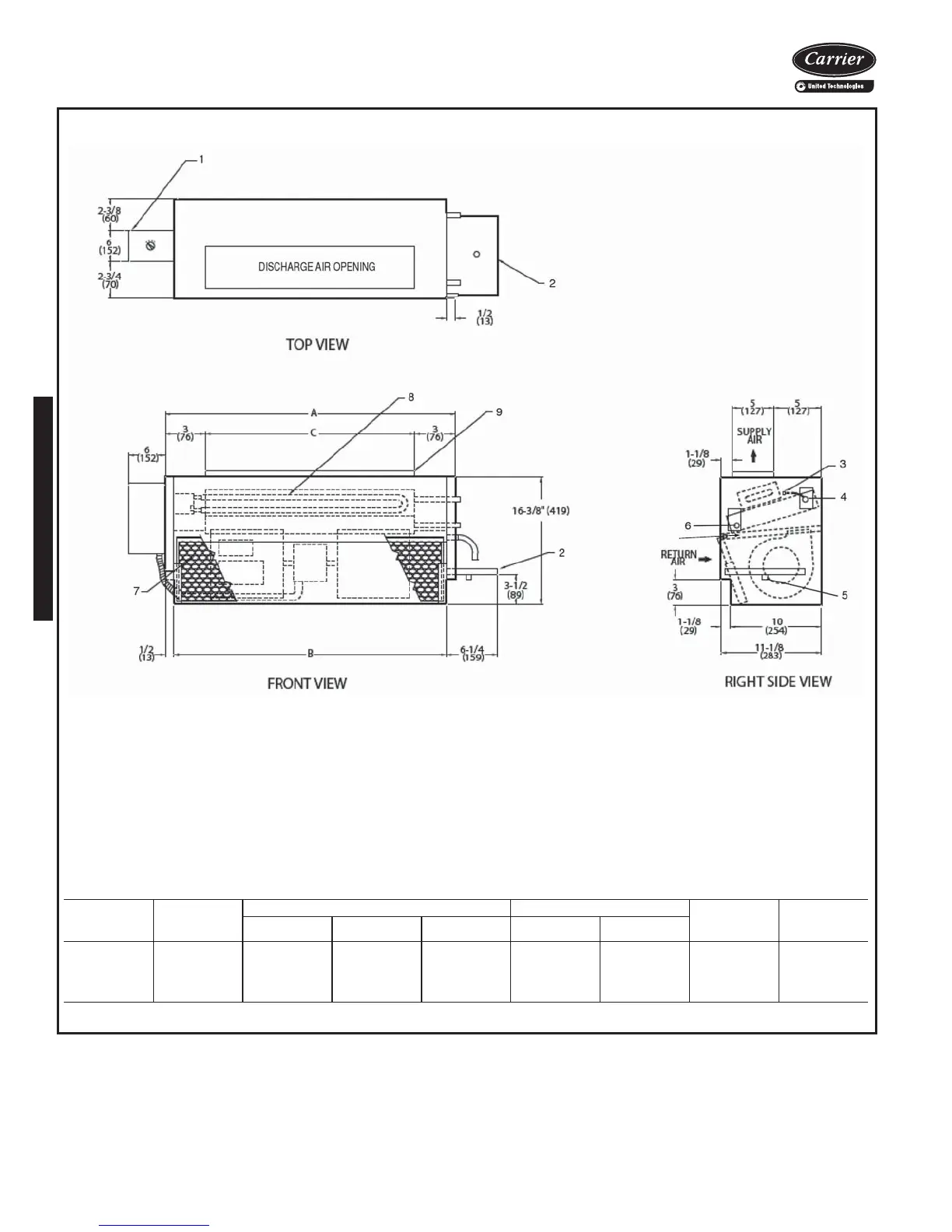

42VC FURRED-IN LOWBOY UNIT WITH ELECTRIC HEAT
LEGEND
1— Unit-Mounted Control Box (Optional)
2— Drain Pan, Auxiliary, Shipped Loose
3— Air Vent,
1
/
8
-in. MPT
4— Supply Conn,
5
/
8
-in. OD
5— Drain,
3
/
4
-in. MPT
6— Return Conn,
5
/
8
-in. OD
7— Filter
8— Electical Sheath Heater Element
9— Discharge Opening
10 — Drain Pan
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT SIZE
NOM
AIRFLOW
(Cfm)
DIMENSIONS (in.) QTY/UNIT
FACE AREA
(sq ft)
UNIT
WEIGHT* (lb)
ABC
Blower Motor
02 200 23 22 17 2 1 1.18 50
03 300 28 27 22 2 1 1.53 60
04 400 36 35 30 2 1 2.08 72
06 600 50 49 44 4 2 3.06 110
NOTES:
1. Right hand unit shown; left hand unit opposite. Coil connection
locations are ±
5
/
8
-inches.
2. Unit sizes 02 through 04 have one motor, 2 blowers; size 06 has
2 motors, 4 blowers.
3. Standard 2-row coil shown.
4. Optional unit-mounted switch box and controls, when specified,
are installed on opposite side from cooling connections.
5. Height increases by 2 in. with electric heat.
6. Not shown: 3-speed fan switch,
1
/
2
-in. fiberglass insulation on
inside of casing, closed cell foam on main drain pan.
7. Units have galvanized finish.
8. See 42VC-203-1 for optional coil connections.
9. Dimensions shown in inches (mm).
A42-4113
Base unit dimensions (cont)
42V Series Units
