Carrier 48HC D17 Series - IGC Wiring Diagram; Typical IGC Wiring Diagram

To Next Page

To Previous Page

Table 12 – Orifice Sizes

ORIFICE

DRILL

SIZE

CARRIER

PART NUMBER

DRILL

DIA. ( in.)

#30 LH32RF129 0.1285

1/8 LH32RF125 0.1250

#31 LH32RF120 0.1200

#32 LH32RF116 0.1160

#33 LH32RF113 0.1130

#34 LH32RF111 0.1110

#35 LH32RF110 0.1100

#36 LH32RF105 0.1065

#37 LH32RF104 0.1040

#38 LH32RF102 0.1015

#39 LH32RF103 0.0995

#40 LH32RF098 0.0980

#41 LH32RF096 0.0960

#42 LH32RF094 0.0935

#43 LH32RF089 0.0890

#44 LH32RF086 0.0860

#45 LH32RF082 0.0820

#46 LH32RF080 0.0810

#47 LH32RF079 0.0785

#48 LH32RF076 0.0760

#49 LH32RF073 0.0730

#50 LH32RF070 0.0700

#51 LH32RF067 0.0670

#52 LH32RF065 0.0635

#53 LH32RF060 0.0595

#54 LH32RF055 0.0550

#55 LH32RF052 0.0520

#56 LH32RF047 0.0465

#57 LH32RF043 0.0430

#58 LH32RF042 0.0420

C10339

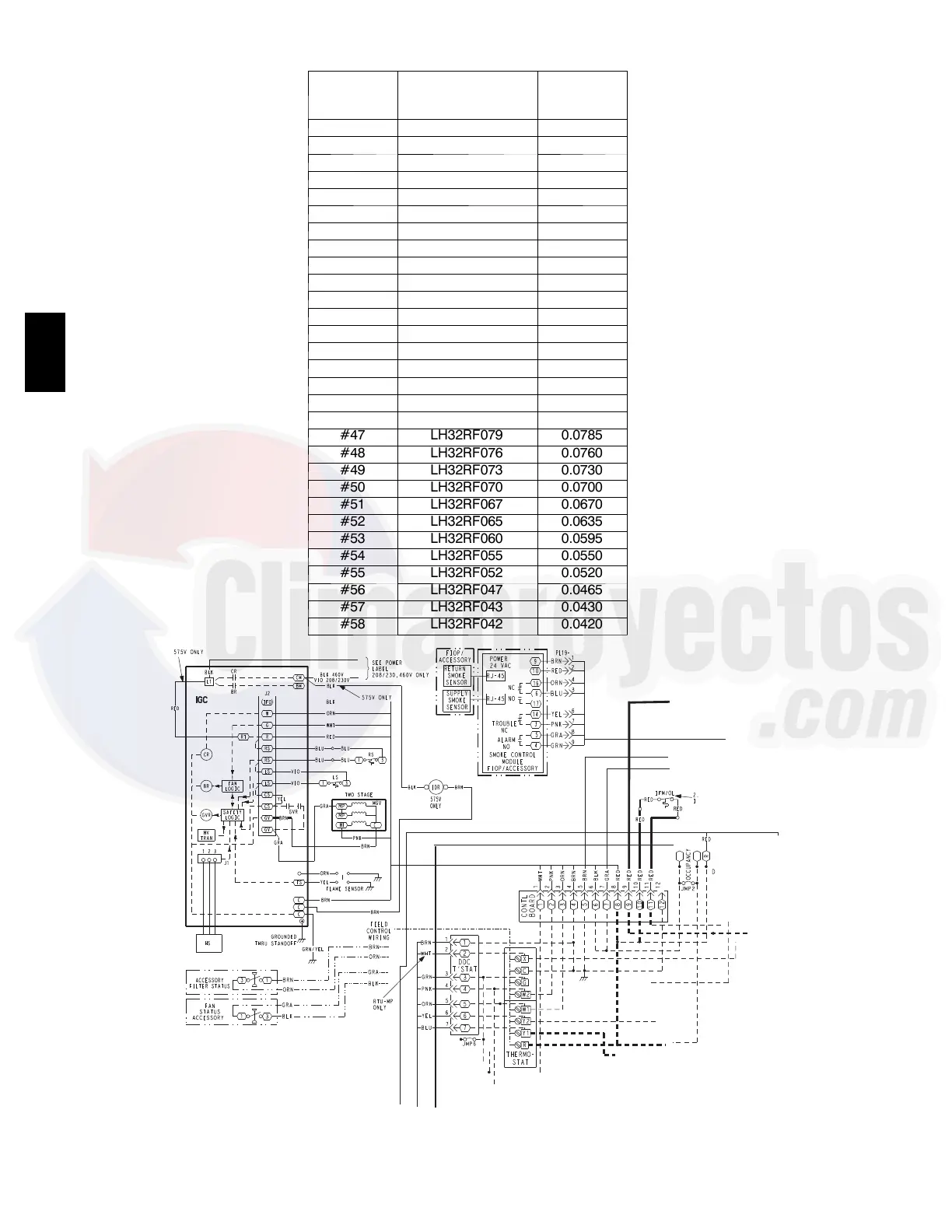

Fig. 60 -- Typical IGC Wiring Diagram
