Carrier 48HC D17 Series User Manual

70
APPENDIX III. FAN PERFORMANCE
TABLE 23 – 48HC*D17 VERTICAL SUPPLY / RETURN 15 TON
CFM
Available External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
4500 490 0.76 575 1.07 653 1.41 724 1.79 791 2.19
4900 517 0.92 597 1.24 671 1.60 740 1.99 804 2.41
5250 541 1.08 618 1.42 688 1.79 754 2.19 817 2.62
5600 566 1.26 639 1.61 707 2.00 770 2.42 831 2.86
6000 595 1.49 664 1.86 729 2.27 790 2.70 848 3.15
6400 624 1.75 690 2.14 751 2.56 810 3.01 866 3.48
6750 650 2.00 713 2.41 772 2.84 829 3.30 883 3.79
7100 676 2.27 736 2.70 793 3.15 848 3.63 901 4.13
7500 706 2.62 763 3.06 819 3.54 871 4.03 922 4.55
CFM
Available External Static Pressure (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
4500 854 2.63 913 3.09 970 3.57 1024 4.09 1077 4.62
4900 865 2.86 923 3.33 978 3.83 1031 4.35 1082 4.89
5250 876 3.08 932 3.56 986 4.07 1038 4.60 --- --- --- --- --- --- --- ---
5600 888 3.33 943 3.82 995 4.34 1046 4.88 --- --- --- --- --- --- --- ---
6000 903 3.64 956 4.14 1008 4 . 6 7 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
6400 920 3.98 971 4 . 5 0 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
6750 935 4.30 986 4 . 8 3 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
7100 952 4 . 6 5 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
7500 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
Std Static Motor and Drive --- 514--- 680 RPM, Max BHP 2.2 Medium Static Motor and Drive --- 679--- 863 RPM, Max BHP 3.3
High Static Motor and Drive --- 826--- 1009 RPM, Max BHP 4.9 --- --- --- --- Outside operating range
Boldface --- F i e l d --- s u p p l i e d D r i v e

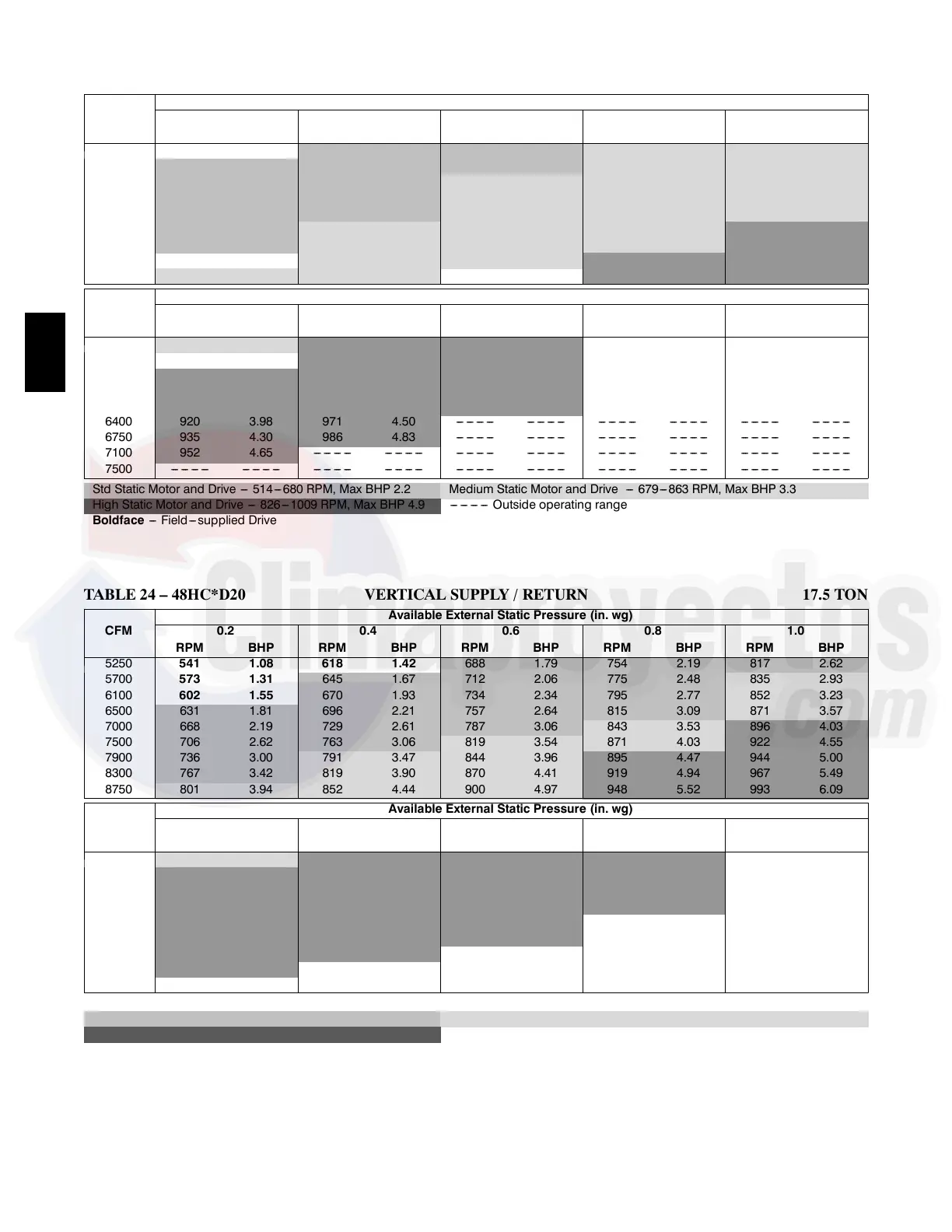

TABLE 24 – 48HC*D20 VERTICAL SUPPLY / RETURN 17.5 TON
CFM
Available External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
5250 541 1.08 618 1.42 688 1.79 754 2.19 817 2.62
5700 573 1.31 645 1.67 712 2.06 775 2.48 835 2.93
6100 602 1.55 670 1.93 734 2.34 795 2.77 852 3.23
6500 631 1.81 696 2.21 757 2.64 815 3.09 871 3.57
7000 668 2.19 729 2.61 787 3.06 843 3.53 896 4.03
7500 706 2.62 763 3.06 819 3.54 871 4.03 922 4.55
7900 736 3.00 791 3.47 844 3.96 895 4.47 944 5.00
8300 767 3.42 819 3.90 870 4.41 919 4.94 967 5.49
8750 801 3.94 852 4.44 900 4.97 948 5.52 993 6.09
CFM
Available External Static Pressure (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
5250 876 3.08 932 3.56 986 4.07 1038 4.60 1088 5.15
5700 892 3.40 946 3.90 998 4.42 1049 4.96 1097 5.52
6100 907 3.72 960 4.23 1011 4.76 1060 5.31 1107 5.89
6500 924 4.07 975 4.59 1025 5.13 1072 5.70 1119 6.28
7000 947 4.55 996 5.09 1044 5.65 1090 6.23 --- --- --- --- --- --- --- ---
7500 971 5.08 1019 5.64 1064 6 . 2 2 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
7900 992 5.55 1038 6 . 1 3 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
8300 1013 6 . 0 6 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
8750 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
Std Static Motor and Drive --- 622--- 822 RPM, Max BHP 3.3 Medium Static Motor and Drive --- 713--- 879 RPM, Max BHP 4.9
High Static Motor and Drive --- 882--- 1078 RPM, Max BHP 6.5 --- --- --- --- Outside operating range
Boldface --- F i e l d --- s u p p l i e d D r i v e
