Carrier 48HC D17 Series User Manual

71
APPENDIX III. FAN PERFORMANCE (cont.)
TABLE 25 – 48HC*D24 VERTICAL SUPPLY / RETURN 20 TON
CFM
Available External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
6000 605 1.48 674 1.77 738 2.08 798 2.41 854 2.74
6500 644 1.82 709 2.14 770 2.47 827 2.81 881 3.17
7000 683 2.22 744 2.56 802 2.91 857 3.28 908 3.65
7500 722 2.68 781 3.04 836 3.41 888 3.80 938 4.19
8000 762 3.20 818 3.58 870 3.97 920 4.38 968 4.79
8500 803 3.78 855 4.19 905 4.60 953 5.02 999 5.46
9000 843 4.43 893 4.86 941 5.30 987 5.74 1032 6.19
9500 884 5.15 932 5.61 978 6.06 1022 6.53 1065 7.01
10000 925 5.95 970 6.43 1015 6.91 1057 7.40 1098 7.89
CFM
Available External Static Pressure (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
6000 907 3.10 958 3.46 1006 3.84 1052 4.23 1097 4.63
6500 932 3.54 981 3.92 1027 4.31 1073 4.72 1116 5.14
7000 958 4.04 1005 4.43 1051 4.84 1094 5.27 1137 5.70
7500 985 4.59 1031 5.01 1075 5.44 1118 5.87 1159 6.32
8000 1014 5.21 1058 5.65 1101 6.09 1142 6 . 5 5 --- --- --- --- --- --- --- ---
8500 1044 5.90 1087 6.35 1128 6.82 1168 7 . 2 9 --- --- --- --- --- --- --- ---
9000 1075 6.66 1116 7.13 1156 7 . 6 1 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
9500 1106 7.49 1146 7 . 9 8 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
10000 1139 8.40 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
Std Static Motor and Drive --- 690--- 863 RPM, Max BHP 4.9 Medium Static Motor and Drive --- 835---1021 RPM, Max BHP 6.5
High Static Motor and Drive --- 941--- 1176 RPM, Max BHP 8.7 --- --- --- --- Outside operating range
Boldface --- F i e l d --- s u p p l i e d D r i v e

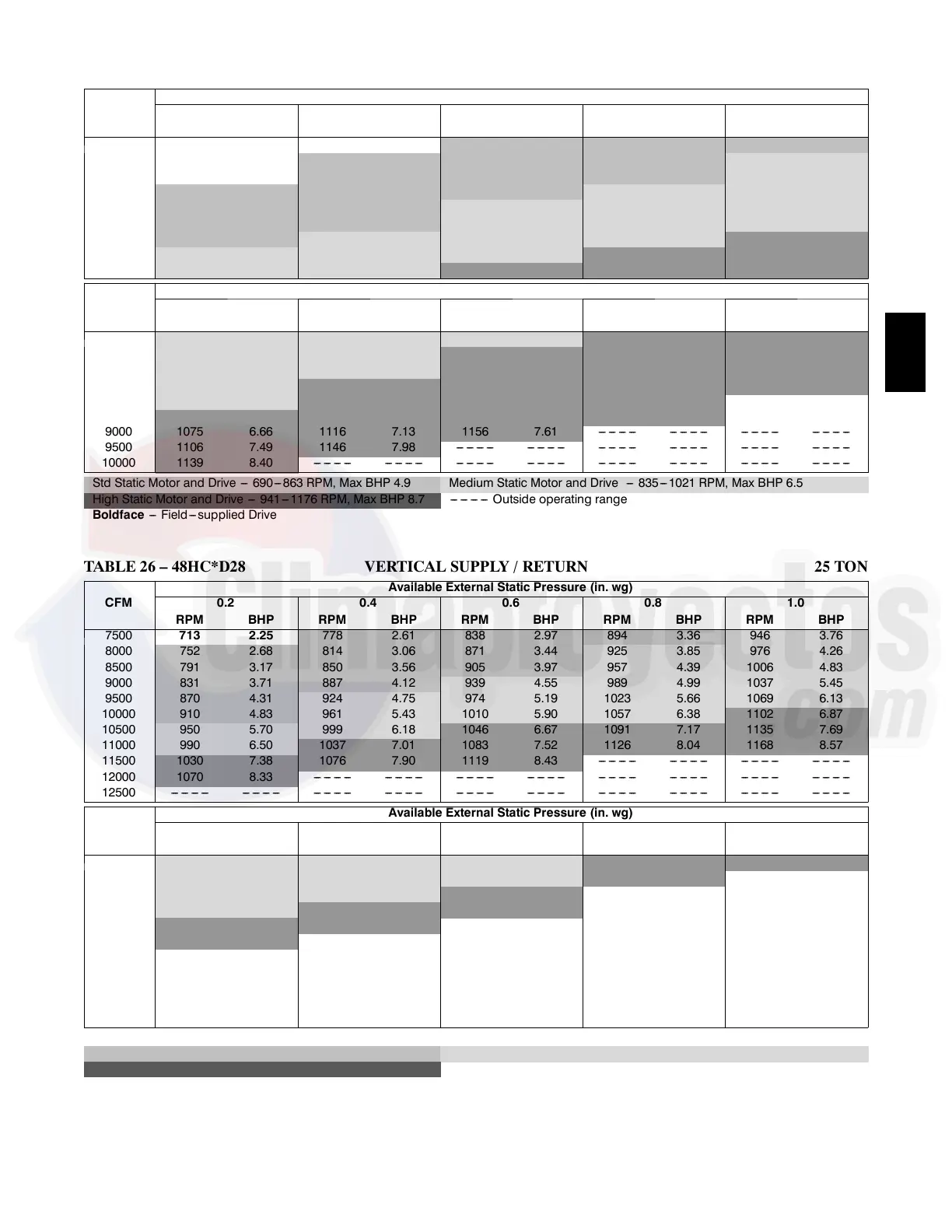

TABLE 26 – 48HC*D28 VERTICAL SUPPLY / RETURN 25 TON
CFM
Available External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
7500 713 2.25 778 2.61 838 2.97 894 3.36 946 3.76
8000 752 2.68 814 3.06 871 3.44 925 3.85 976 4.26
8500 791 3.17 850 3.56 905 3.97 957 4.39 1006 4.83
9000 831 3.71 887 4.12 939 4.55 989 4.99 1037 5.45
9500 870 4.31 924 4.75 974 5.19 1023 5.66 1069 6.13
10000 910 4.83 961 5.43 1010 5.90 1057 6.38 1102 6.87
10500 950 5.70 999 6.18 1046 6.67 1091 7.17 1135 7.69
11000 990 6.50 1037 7.01 1083 7.52 1126 8.04 1168 8.57
11500 1030 7.38 1076 7.90 1119 8 . 4 3 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
12000 1070 8 . 3 3 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
12500 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
CFM
Available External Static Pressure (in. wg)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
7500 996 4.17 1044 4.60 1089 5.05 1133 5.51 1175 5.98
8000 1024 4.70 1071 5.14 1115 5.60 1158 6 . 0 7 --- --- --- --- --- --- --- ---
8500 1053 5.27 1098 5.74 1141 6 . 2 1 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
9000 1083 5.91 1127 6.39 1169 6 . 8 8 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
9500 1113 6.61 1156 7 . 1 1 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
10000 1145 7 . 3 8 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
10500 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
11000 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
11500 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
12000 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
12500 --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
Std Static Motor and Drive --- 717--- 911 RPM, Max BHP 4.9 Medium Static Motor and Drive --- 913---1116 RPM, Max BHP 6.5
High Static Motor and Drive --- 941--- 1176 RPM, Max BHP 8.7 --- --- --- --- Outside operating range
Boldface --- F i e l d --- s u p p l i e d D r i v e
