13 - MAINTENANCE
Size W115

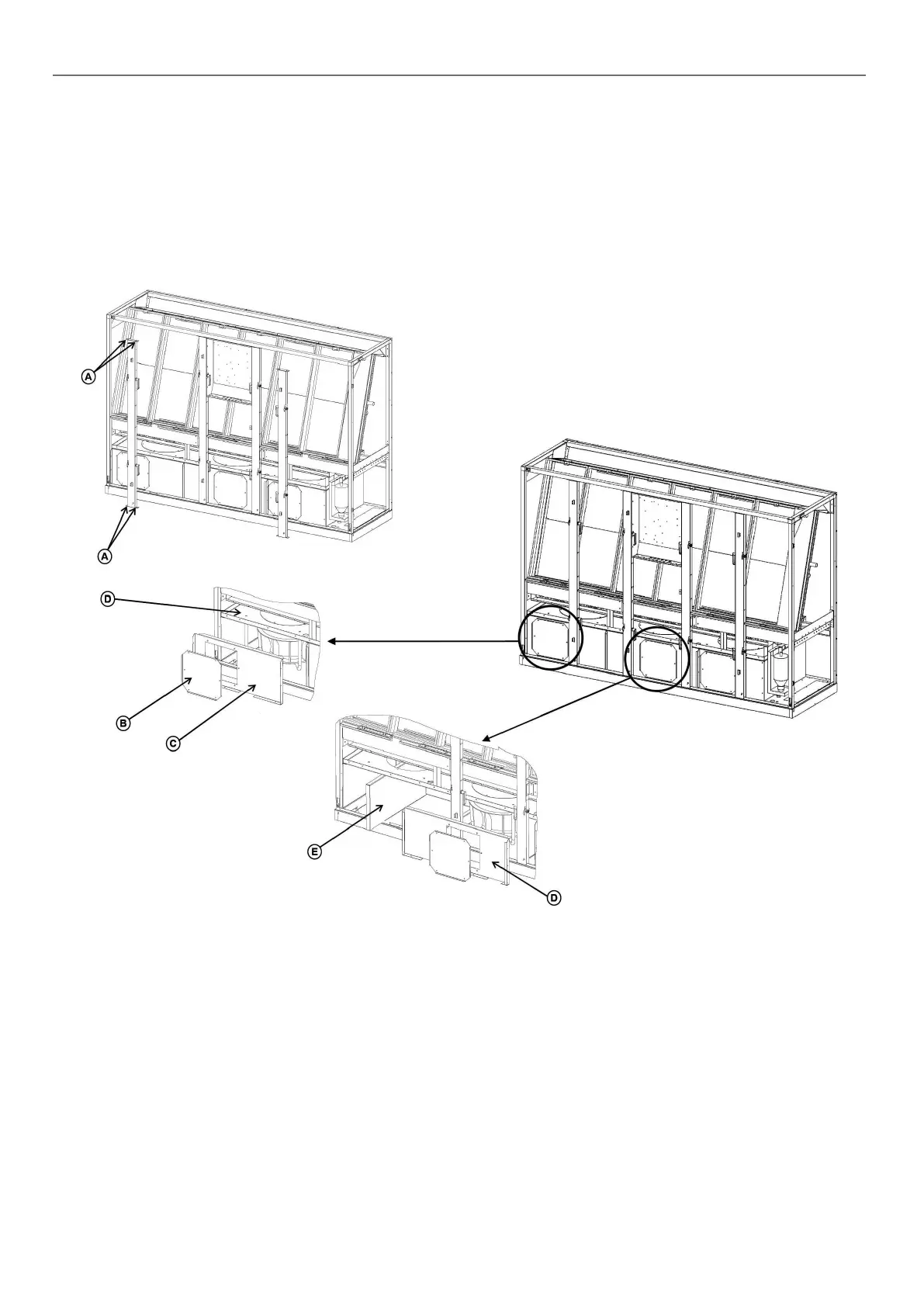

- Fan access: remove the 6 screws from the fan access hatch (B)
- Removing the lateral panels from the fans (close-up A):
- Remove the 4 screws (A) from the uprights then remove the uprights
- Remove the screws from the fan removal hatch (C),
- Remove the fan attachment screws (D).
- Removing the central fan (close-up B):
- Remove the 4 screws (A) on the left upright then remove the upright
- Remove the central and left fan removal hatches
- Remove the fan divider partition (E)
- Slide the central fan to the left and pull it out.
Detail A
Detail B
13.6 - Electrics box
Retighten the connections twice a year.
Visually inspect the components, wires and cables.
