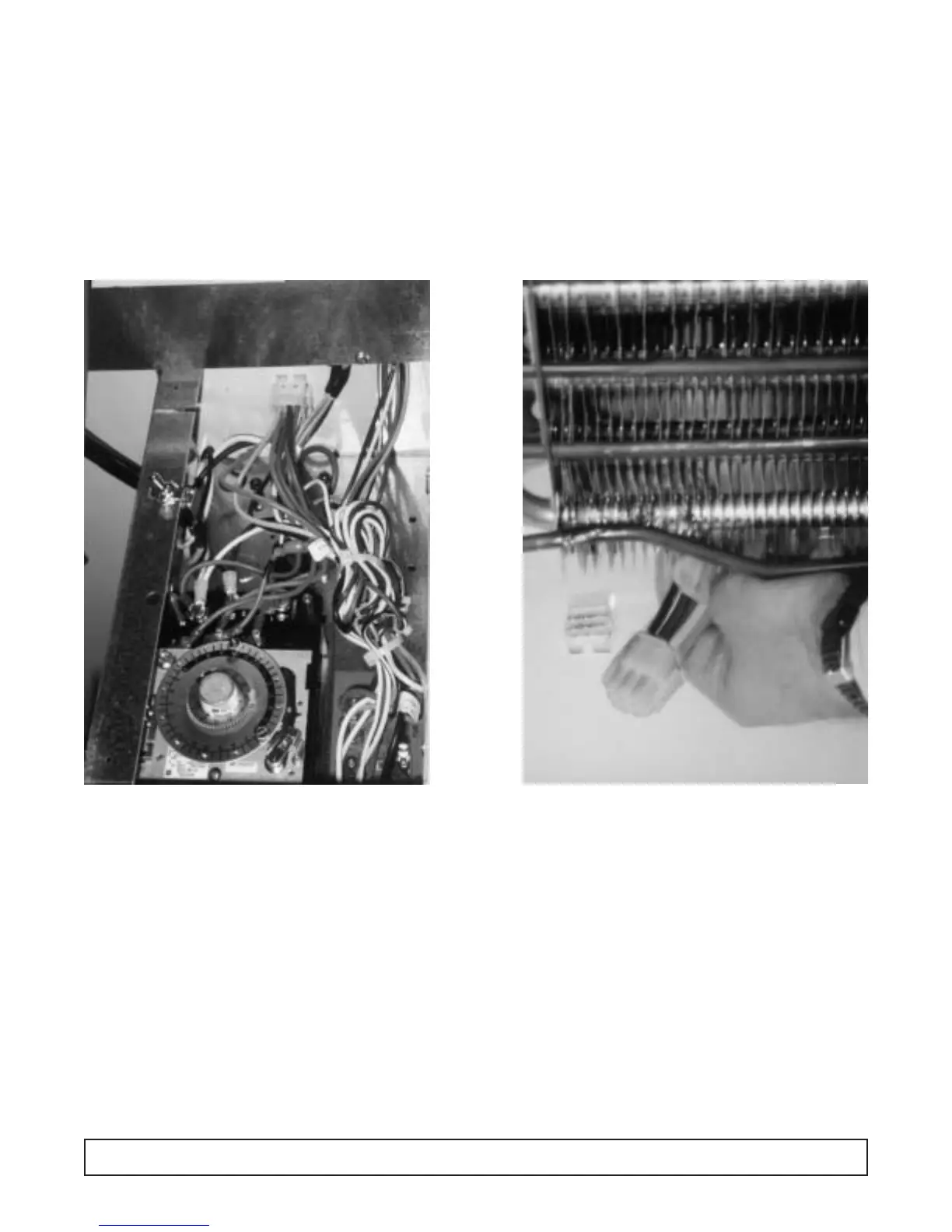

A nine pin wiring harness has been added to the
upright models (med & low).
1. Electrical Box to cabinet
2. Main wiring harness to evaporator area.
ELECTRICAL BOX / QUICK CONNECT
11
11
22
22
46 MAINTENANCE & REPAIR
