CABINET REAR VIEW BT30RF-EXPR

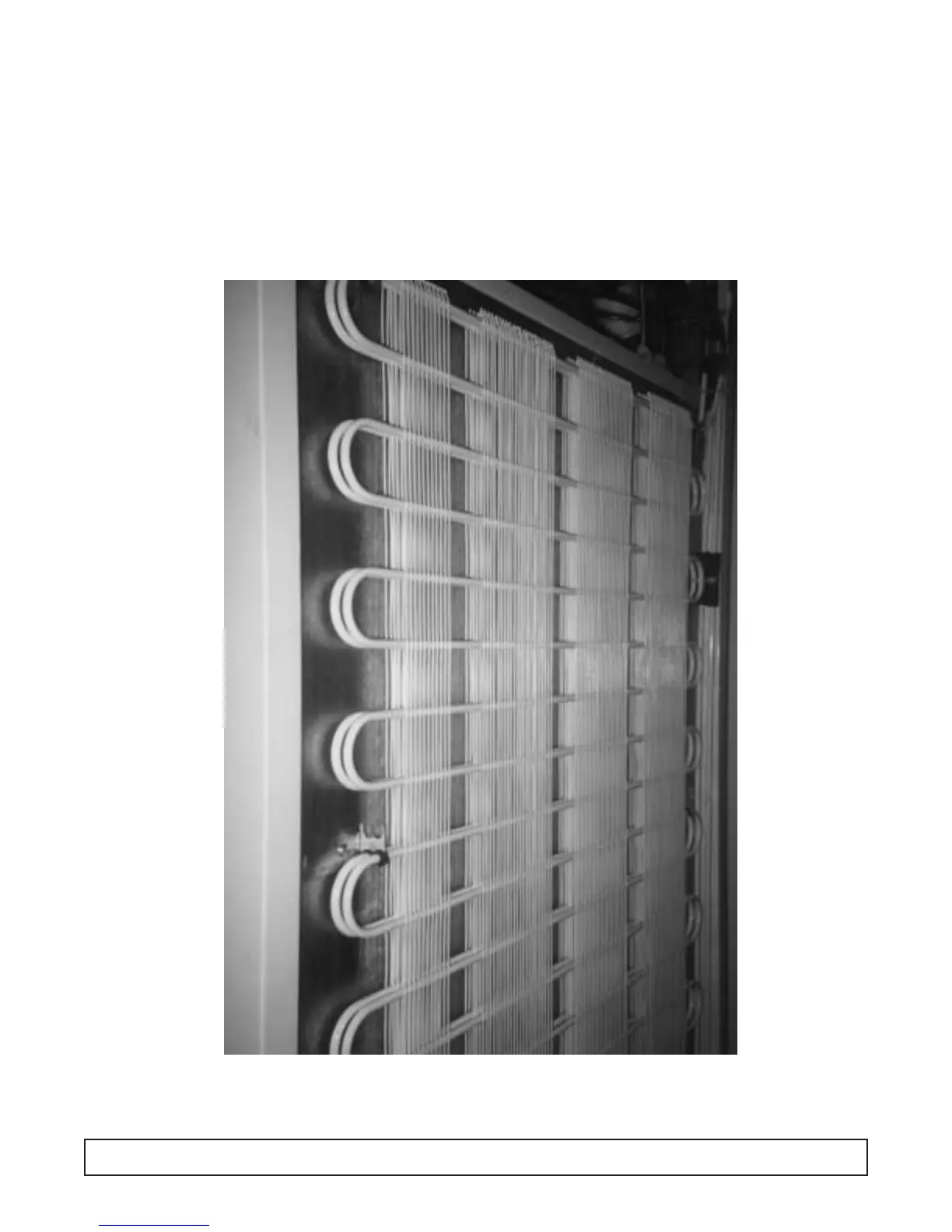

The Condenser is attached to the rear of the cabinet
via the hold down brackets as shown. The condensor
consists of a 2-piece series circuit arrangement. It uti-
lizes natural convection to dissipate heat generated by
the refrigerant cycle. This condenser should be
checked periodically and cleaned as necessary.
CABINET REAR VIEW 75
