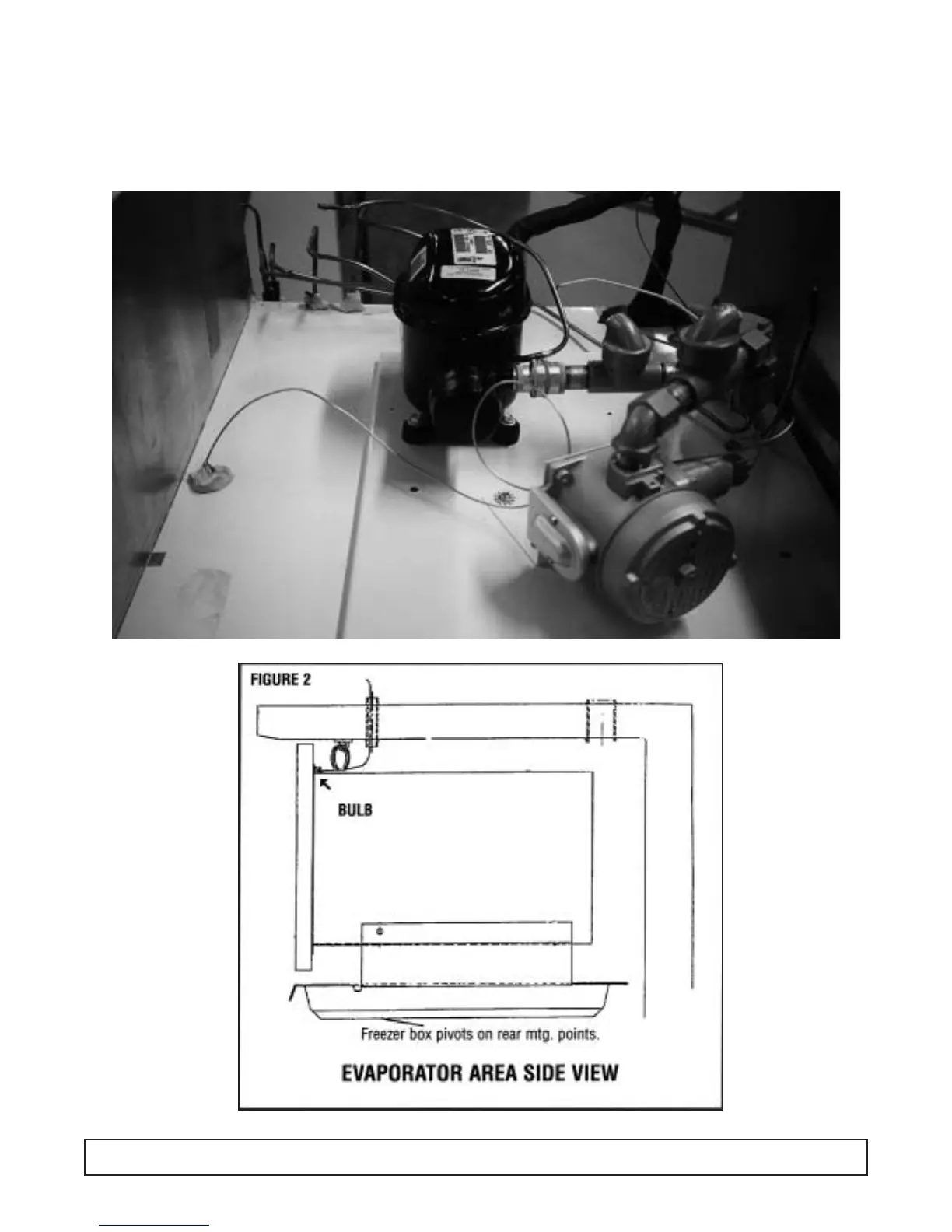

THERMOSTAT BULB PLACEMENT BT30RF-EXPR
The Thermostat Bulb is routed through a hole provid-
ed on the top, lefthand side of the unit compartment
(1). The bulb is then inserted into a clamp located on
top of the stainless steel evaporator as shown in
Figure 2.
11
THERMOSTAT BULB PLACEMENT 77
