EVAPORATOR LAYOUT BT30RF-EXPR

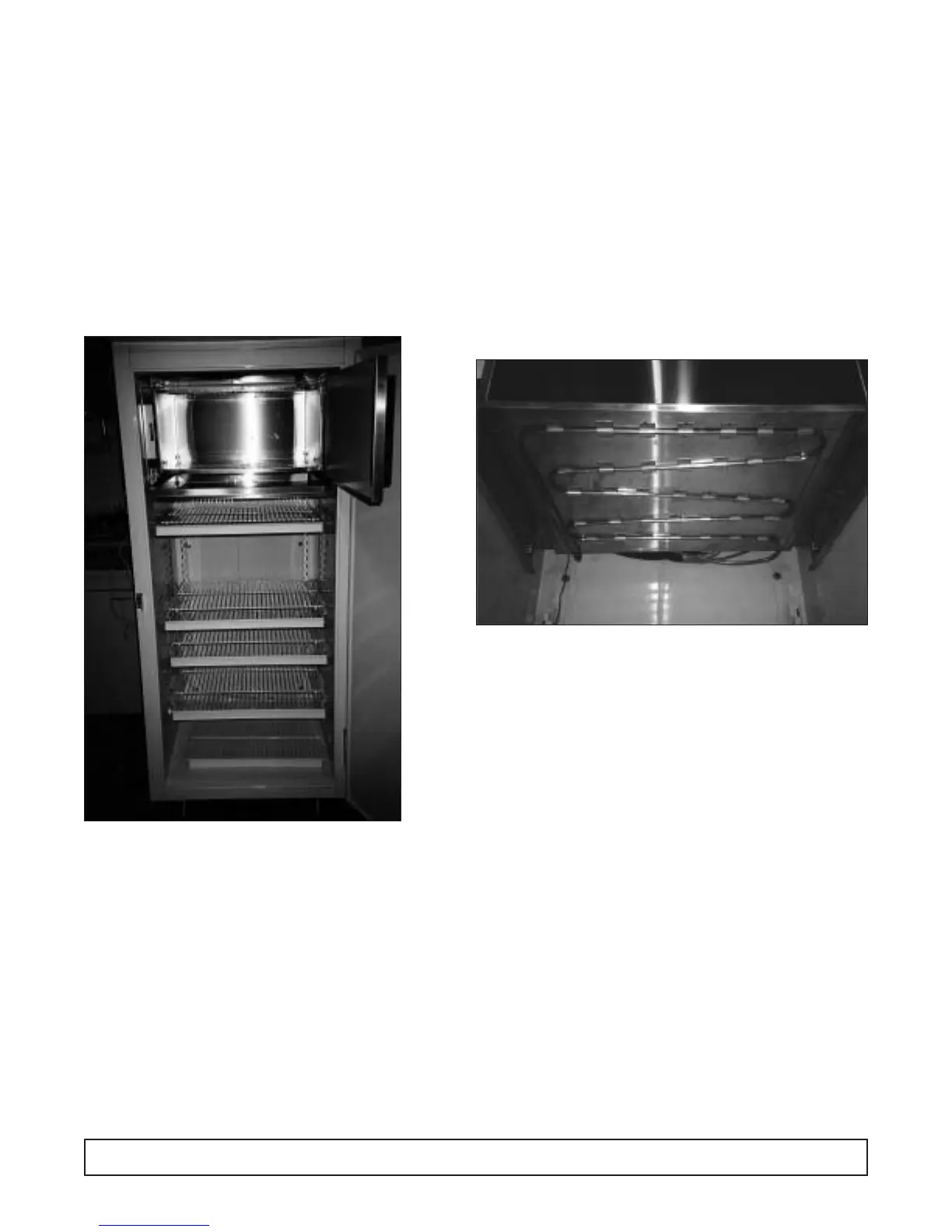

This cabinet is of standard design with the exception
of a freezer compartment located at the top interior of
the cabinet: “A”. Refrigeration is accomplished by tub-
ing being attached to the freezer compartment hous-
ing: “B”.
Depending on the application and number of door
openings, this cabinet will need to be manually
defrosted. A stainless steel pan has been provided to
collect the water during a manual defrost.
