1Evaporator Coil
2Cap Tube (14' x .042)
3Thermodisc
(open 140°F / close 130°F)
4 Heater Calrod
(800 Watts / 16.5 Ohms)
5R.T.D.Temperature Probe

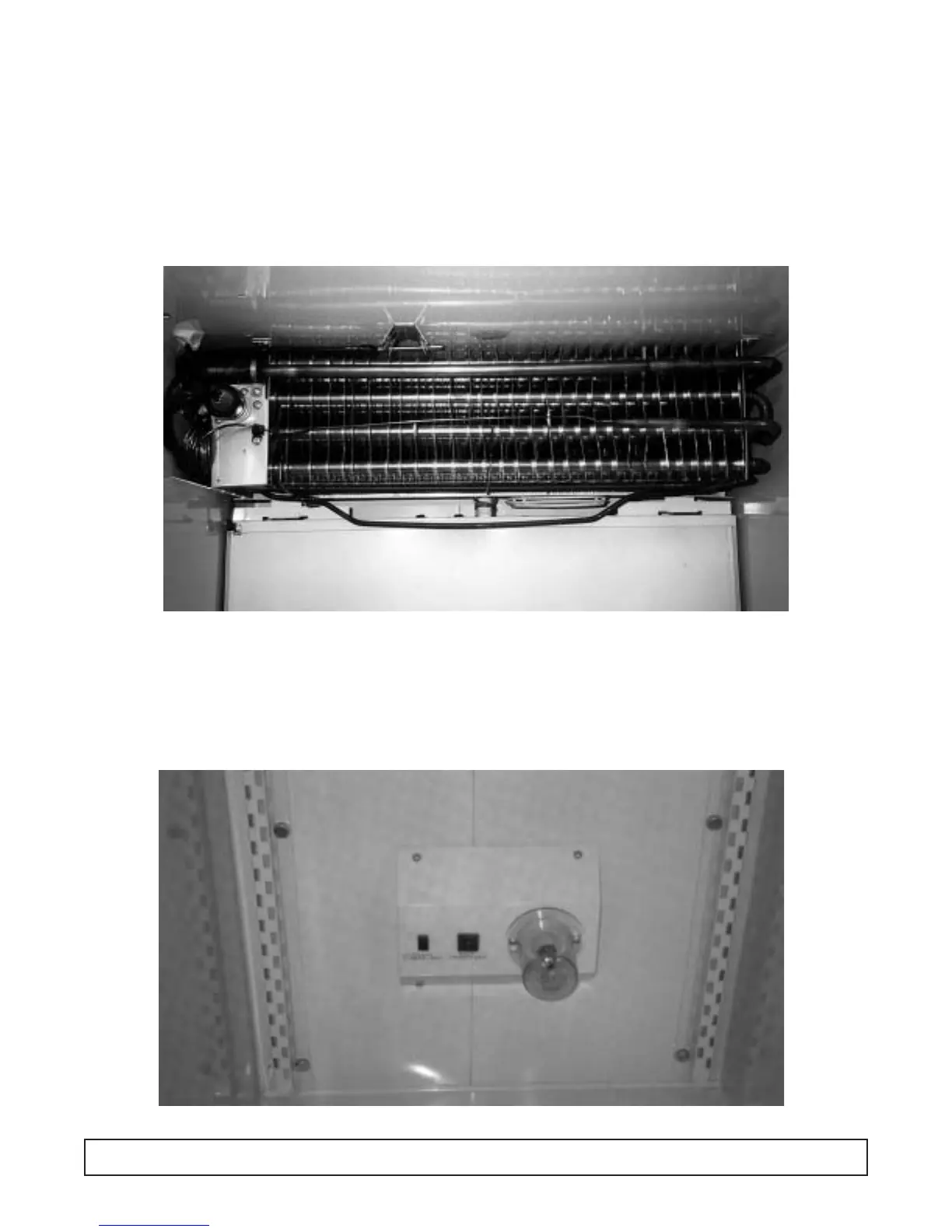

INCUBATOR EVAPORATOR LAYOUT
CABINET INTERIOR LAYOUT
1 Receptacle Box
22 Amp Fuse
3Electrical Outlet
4Incandescent Light
11
33
55
33
22
44
22
44
11
INCUBATOR EVAPORATOR & CABINET INTERIOR LAYOUTS 91
