SELECTING INSTALLATION LOCATION OF TOP DISCHARGE - OUTDOOR UNIT
CONSIDERATIONS FOR SELECTING INSTALLATION LOCATION
Select installation location which allows the minimum clearances shown in the figures
for free air circulation and easy accessibility for service and maintenance :
The top of outdoor unit ( air outlet )
should be away from any obstacle by 150 cm or more to ensure free air circulation.
The front, back, right and left of outdoor unit ( air inlet )
should be away from any obstacle by 30 cm or more to ensure free air circulation and easy access
to refrigerant and electrical connections.

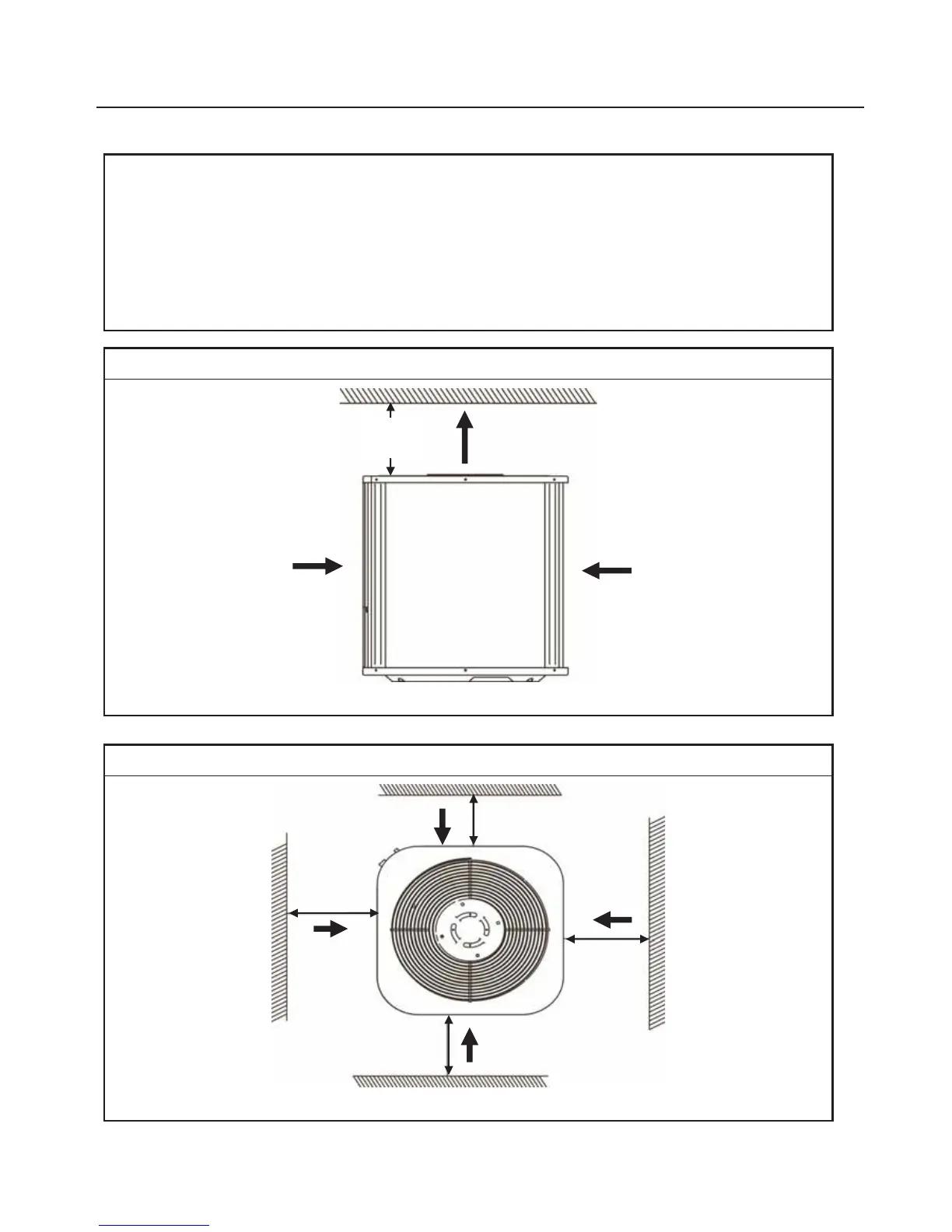

Obstacles at outdoor unit top ( air outlet )
No obstacle at front or back or right or left
Obstacles at outdoor unit front & back & right and left sides ( air inlets )
