i-Vu® XT Router (drv_gen5) CARRIER CORPORATION ©2022
Installation and Start-up Guide 14 All rights reserved
To set a default IP address
Default IP addressing assigns the following to the router:
• IP address = fd01::192:168:168:x
where x is the setting on the rotary switches in the range from 1 to 253
• Prefix Length = 64
• Default Gateway = fd01::192:168:168:254
1 Set the router's three rotary switches to a unique address on the network. Set the left rotary switch to the
hundreds digit, the middle switch to the tens digit, and the right switch to the ones digit.

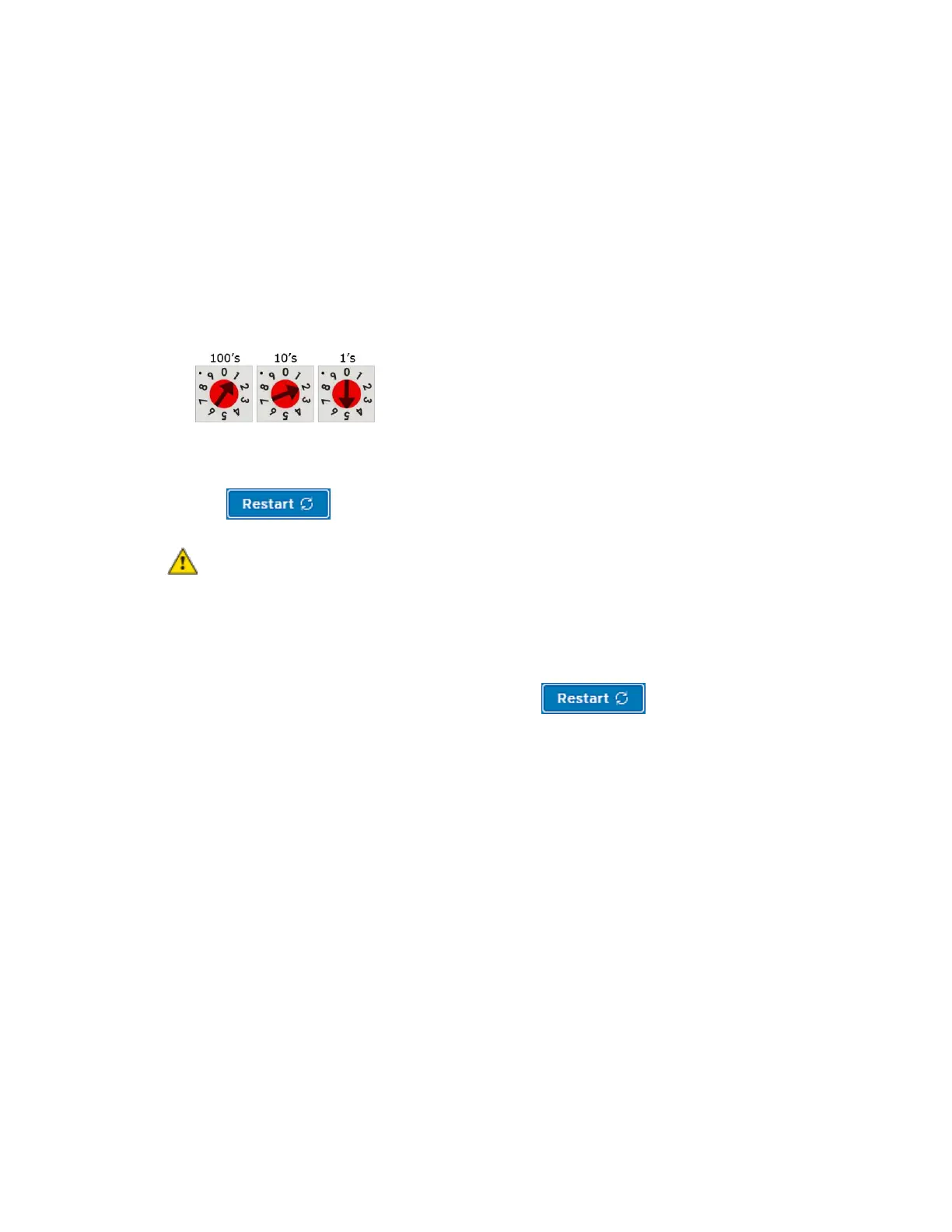

EXAMPLE The switches below are set to 125.
2 In the Service Port controller setup pages on the Connections page, under the Gig-E Port tab > BACnet/IPv6,
select Default IP Address in the drop-down list for Address Mode.
3 Click .
CAUTIONS
• If you configure your i-Vu® XT Router to use link-local addressing, then your IPv6 connection must also be
configured to use link-local addressing. The i-Vu® Server address must start with fe80 and the Multicast
Address must start with ff02.
• If you set the Default IP address on the controller setup Connections page > Gig-E Port tab and then change
the rotary switches, you must do one of the following to correct the IP address in the router:
• Go to the controller setup Connections page and click .
• Cycle the router's power.
You will then need to correct the IP address in SiteBuilder.
NOTE The default address is an intranet address. Data packets from this address are not routable to the Internet.
