Carrier i-Vu XT Router - Troubleshooting; Leds

i-Vu® XT Router (drv_gen5) CARRIER CORPORATION ©2022
Installation and Start-up Guide 36 All rights reserved
If you have problems mounting, wiring, or addressing the i-Vu® XT Router, contact Carrier Controls System
Support.
LEDs

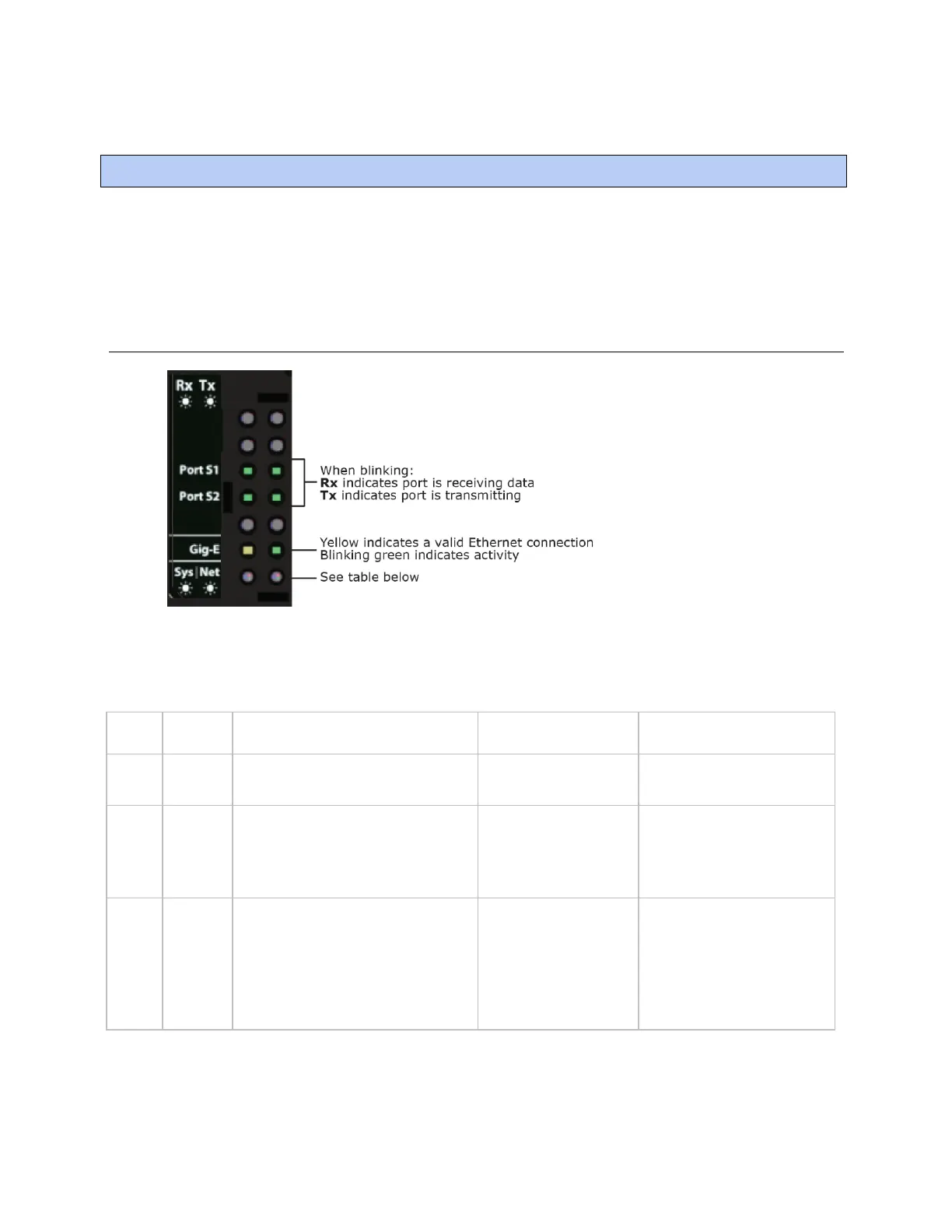

NET (Network Status) Tricolor LED
Color
Pattern
Condition
Message in Module
Status
Possible Solutions
Red
On
Ethernet connection problem
No Ethernet Link
• Connect Ethernet Cable
• Check other network
components
Red
1 blink
One of the following BACnet/IP
(Ethernet) DLL reporting issue:
• Unable to create tasks
• Unable to open socket for BACnet
port
BACnet/IP error
Cycle power
Red
2 blink
Current default IP address does not
match the current rotary switch setting
Default IP address
mismatch
• Use the controller setup
Ports tab to set the IP
address
• Cycle power to accept new
IP address
• Change rotary switches to
match current default IP
address
Troubleshooting
