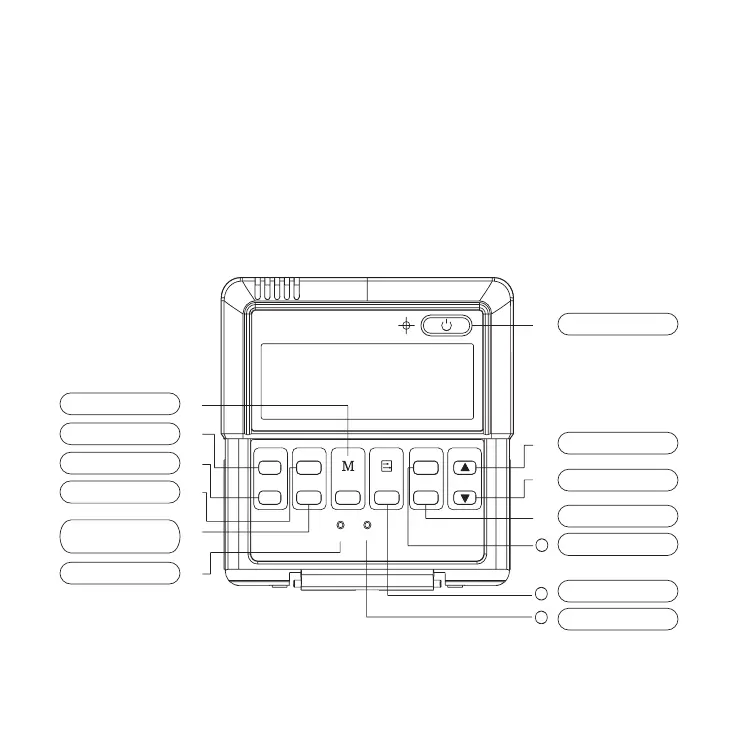

6. NAME AND OPERATION OF THE BUTTON ON THE
WIRE CONTROLLER
When a wire controller is needed, a small 5-way terminal should be added,fix an
infrared emitter with gumwater near the receiver on the switch board. Connect its
anode and cathode to A and B,and +5V, GND, RUN to C, D, E on the switch board.
MODE BUTTON
TIMER ON BUTTON
FOLLOW ME BUTTON
TIMER OFF BUTTON
ELECTRICAL
HEATER BUTTON
RESET BUTTON
ON / OFF BUTTON
ADJUST BUTTON ▲
ADJUST BUTTON ▼
SWING BUTTON
ECONOMY BUTTON
FAN SPEED BUTTON
LOCK BUTTON
TIMER
ON
TIMER
OFF
FOLLOW
ME
AUXIL
HEATER
MODE
RESET
LOCK
FAN SPEED
ECO
SWING
TEMP
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
12
13
11
