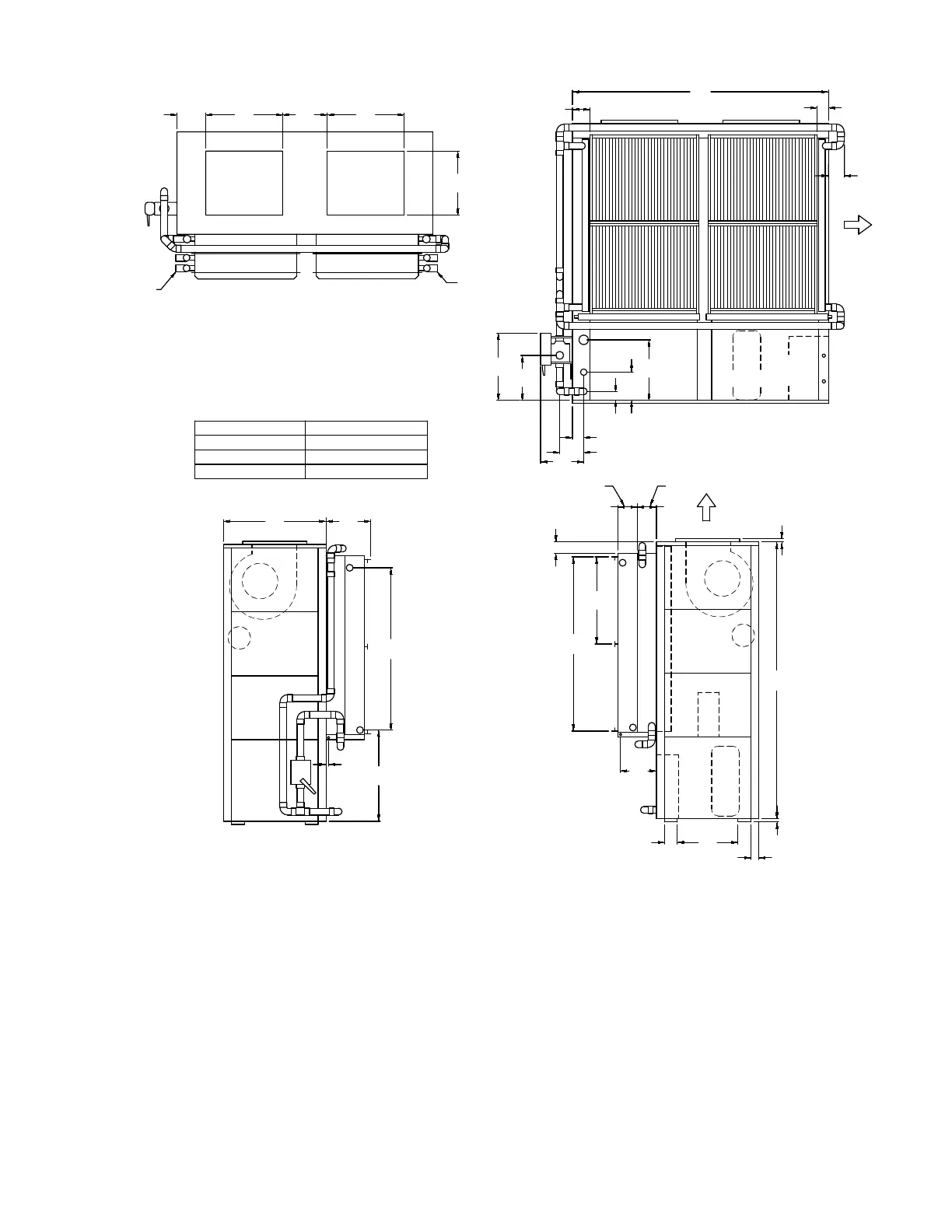

Fig. 15 — 50BVC,J,Q 034 Front Return, Top Supply with Waterside Economizer and Hot Water Coil
50.75
TOP VIEW
2-1/8" OD. (2 PLCS)
SWEAT CONNECTIONS
2-1/8" OD. (2 PLCS)
SWEAT CONNECTIONS
9.00
[229]
24.00
[610]
14.00
[355]
24.00
[610]
20.00
[508]
AIRAIR
CONTROL BOX
AND
CONTROLLER
ACCESS
13.50
[343]
7.50
[190]
FRONT VIEW
14.00
[356]
21.00
[533]
18.88
[479]
3.50
[89]
2.75
[70]
5.50
[140]
8.75
[222]
80.00
[2032]
3.50
[89]
5.00
[127]
COMPRESSOR
ACCESS
HIGH
VOLTAGE
LOW
VOLTAGE
WATER
OUT
DRAIN
WATER
IN
LEFT SIDE VIEW
32.00
[813]
14.00
[356]
28.50
[724]
[1289]
0.75
[19]
DRAIN
AIR
MOTOR AND BELT ACCESS
(BOTH SIDES)
6.00
[152]
86.50
[2197]
27.25
[692]
54.50
[1384]
3.50
[89]
6.00
[152]
PRE-COOLING COIL
HOT WATER COIL
1.00
[25]
RIGHT SIDE VIEW
2.50
[64]
19.00
[483]
4.00
[102]
1.00
[25]
11.25
[286]
DRAIN
VFD
WATER CONN. 2" FPT
CONDENSATE CONN. 1-1/4" FPT
FILTER QTY. & SIZE
(4) 27" x 34-1/2" x 1"
SIZEDESCRIPTION
NOTES:
1. Dimensions in inches [mm].
2. Refer to base unit certified drawing for additional unit dimensions,
service clearance, and alternate airflow configurations.
3. For all other airflow configuration drawings see SCUBuilder program.
4. 50BVJ are Rear Return, Top Supply only.

Carrier Omnizone 50BVC Specifications

General

Brand	Carrier
Model	Omnizone 50BVC
