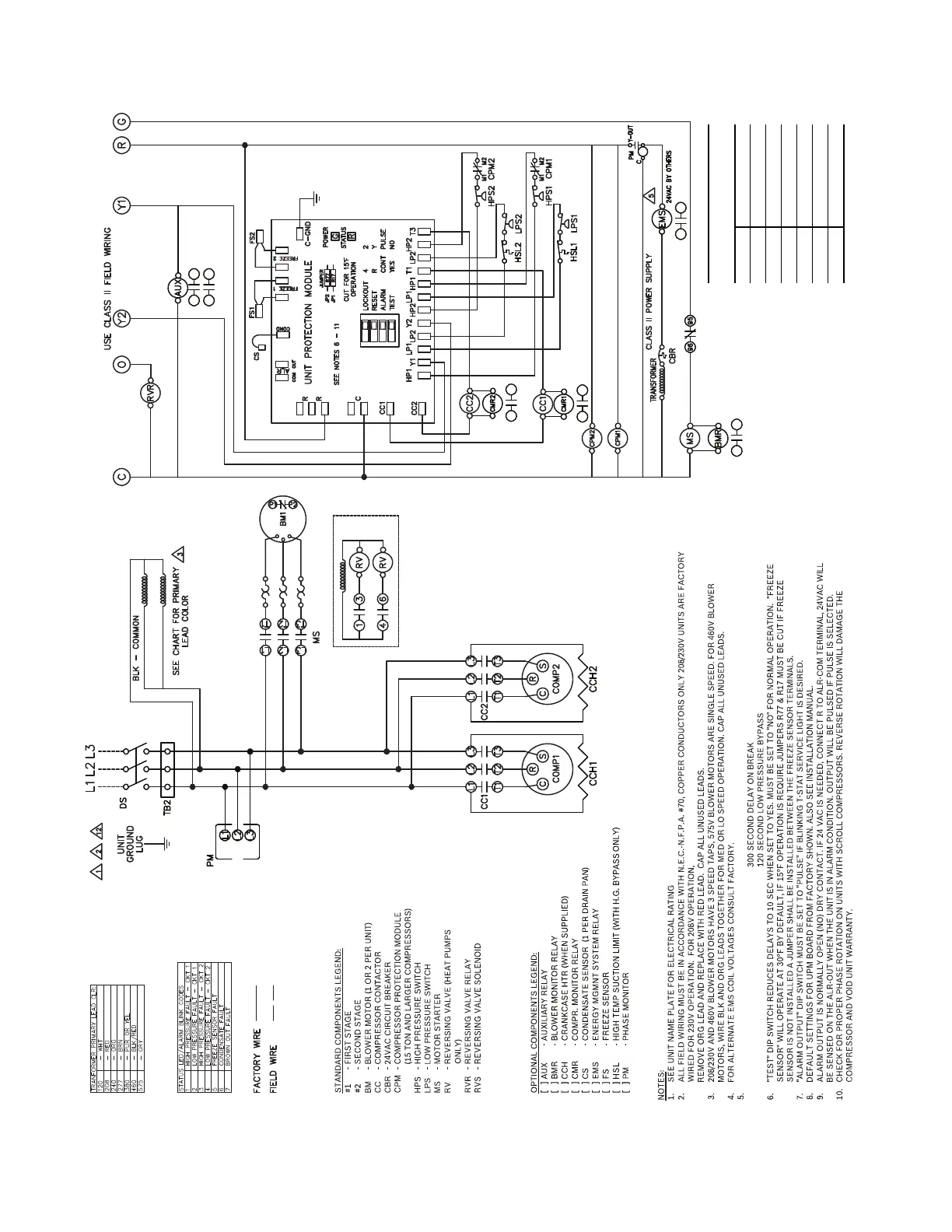

Fig. 89 — 50BVC,Q,T,V020-034 Constant Volume Wiring Schematic
UNIT PROTECTION MODULE (UPM-II) INCLUDES BUILT-IN: 270-300 SECOND RANDOM STAR T
TRANSFORMER PRIMARY
LEAD COLOR
120 White 208 Red 240 Orange 277 Brown 380 Purple or Yellow 460 Black/Red 575 Gray
