PG96MSA: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
32
A13305

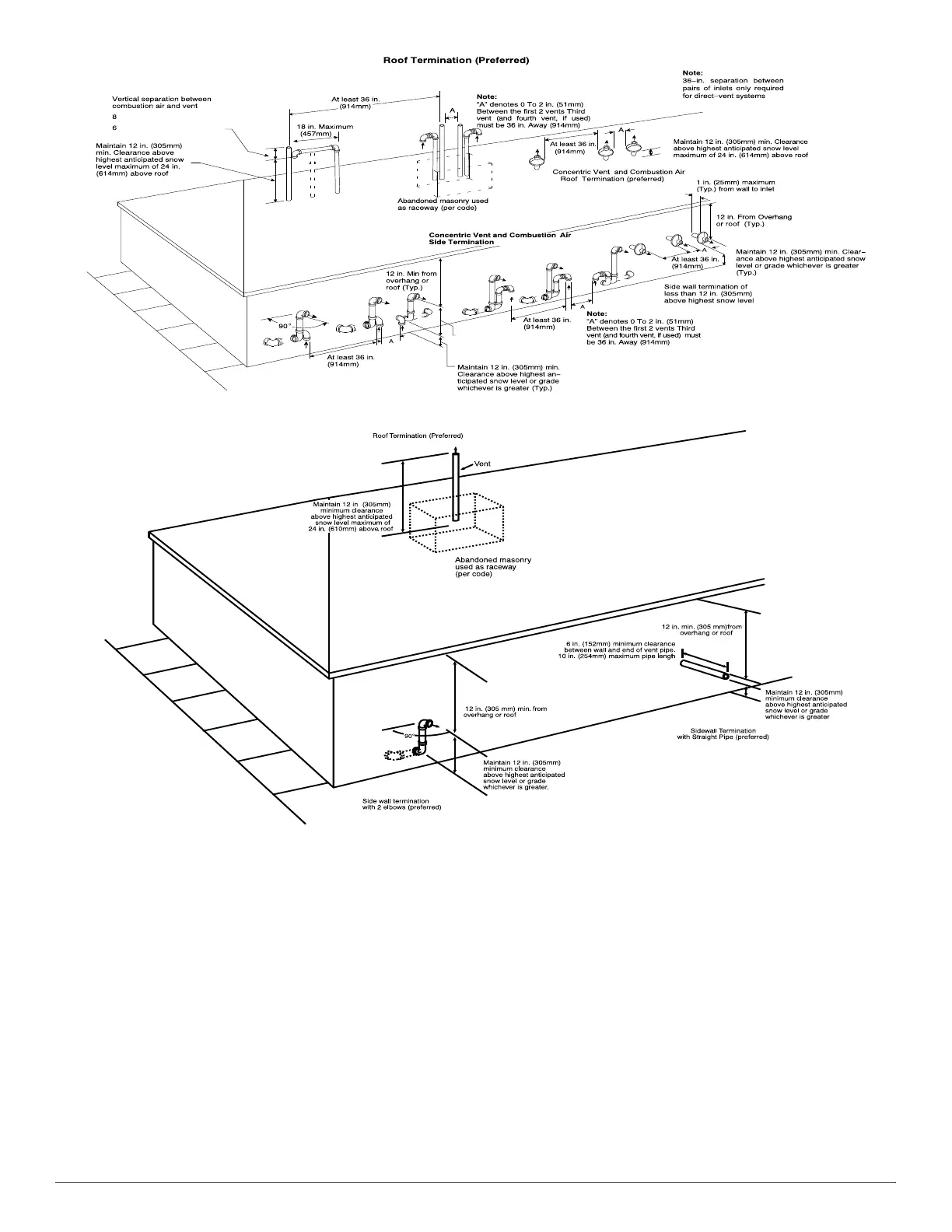

Fig. 39 – Combustion Air and Vent Pipe Termination for Direct Vent (2-Pipe) System
A05091
Fig. 40 – Vent Pipe Termination for Non-Direct Vent and Ventilated Combustion Air System
LQPPIRULQPP
12 in. (305mm) min. separation
between bottom of combustion
air and bottom of vent (Typ.)
LQPPIRULQPP
