Carrier X-POWER Series User Manual

Carrier service manual R410a DC Inverter 60Hz
Specification & Performance 23
2. Dimensions

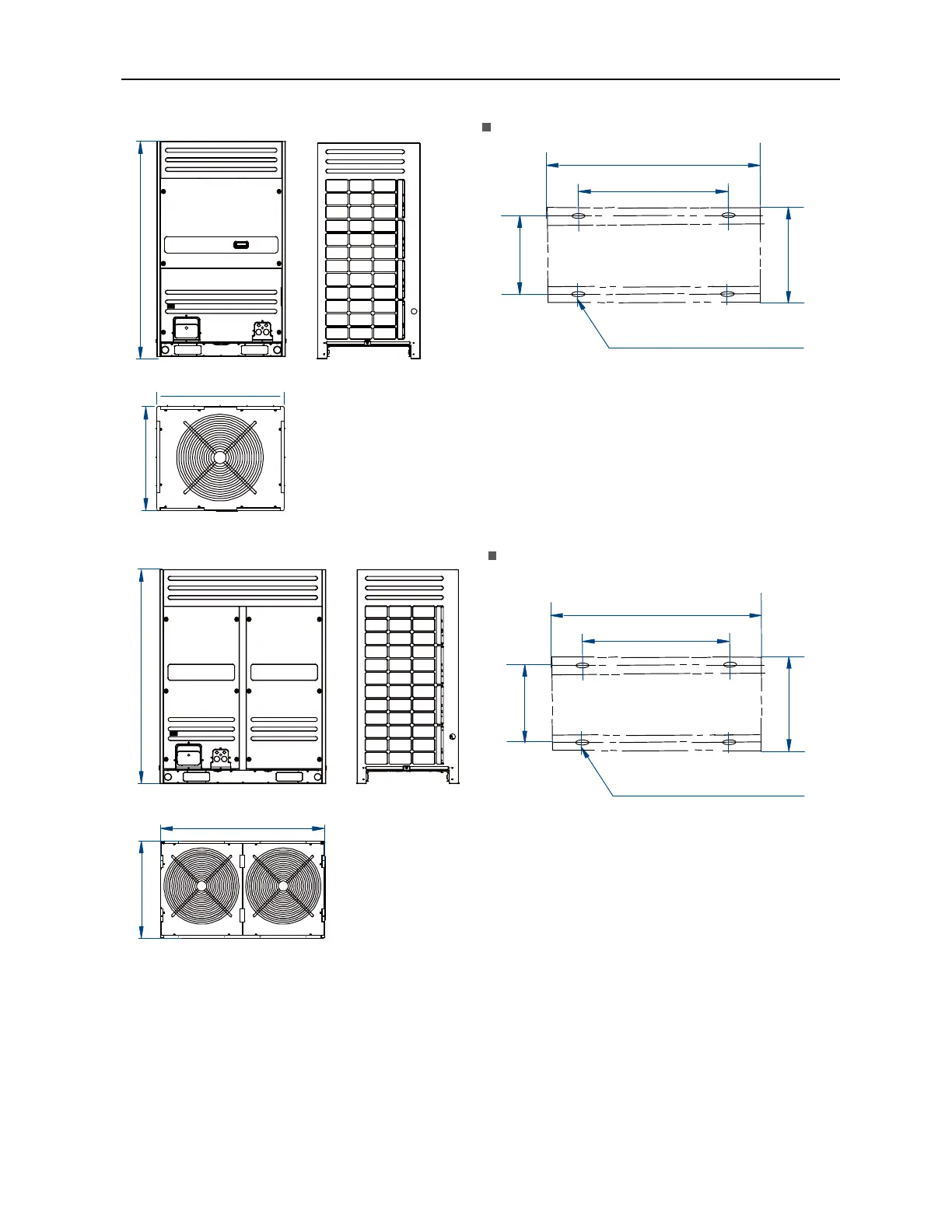

2.1 Units Dimension
8
,
10 HP
Unit:in.(mm)
63-9/16(1615mm)
30-1/8(765mm)
37-25/32(960mm)
Position illustration of screw bolts .
Unit: in.(mm)
15×23long U-shape hole
32-43/64(830mm)
37-25/32(960mm)
28-31/32 (736mm)
30-1/8(765mm)
12, 14, 16HP Unit:in.(mm)
49-7/32(1250mm)
49-7/32(1250mm)
63-9/16(1615mm)
30-1/8(765mm)
Position illustration of screw bolts.
Unit: in.(mm)
28-31/32 (736mm)
30-1/8(765mm)
15×23long U-shape hole
44-19/64(1120mm)
12，14，16、18HP

Carrier X-POWER Series Specifications

General

Type	Inverter
Refrigerant	R410A
Operating Temperature Range (Heating)	-15°C to 24°C
Power Supply	220 - 240V, 50/60Hz
Operating Temperature Range (Cooling)	5°C to 46°C
