ZS zone sensors
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation Guide All rights reserved
10
Motion sensor
specifications
Detector distance:

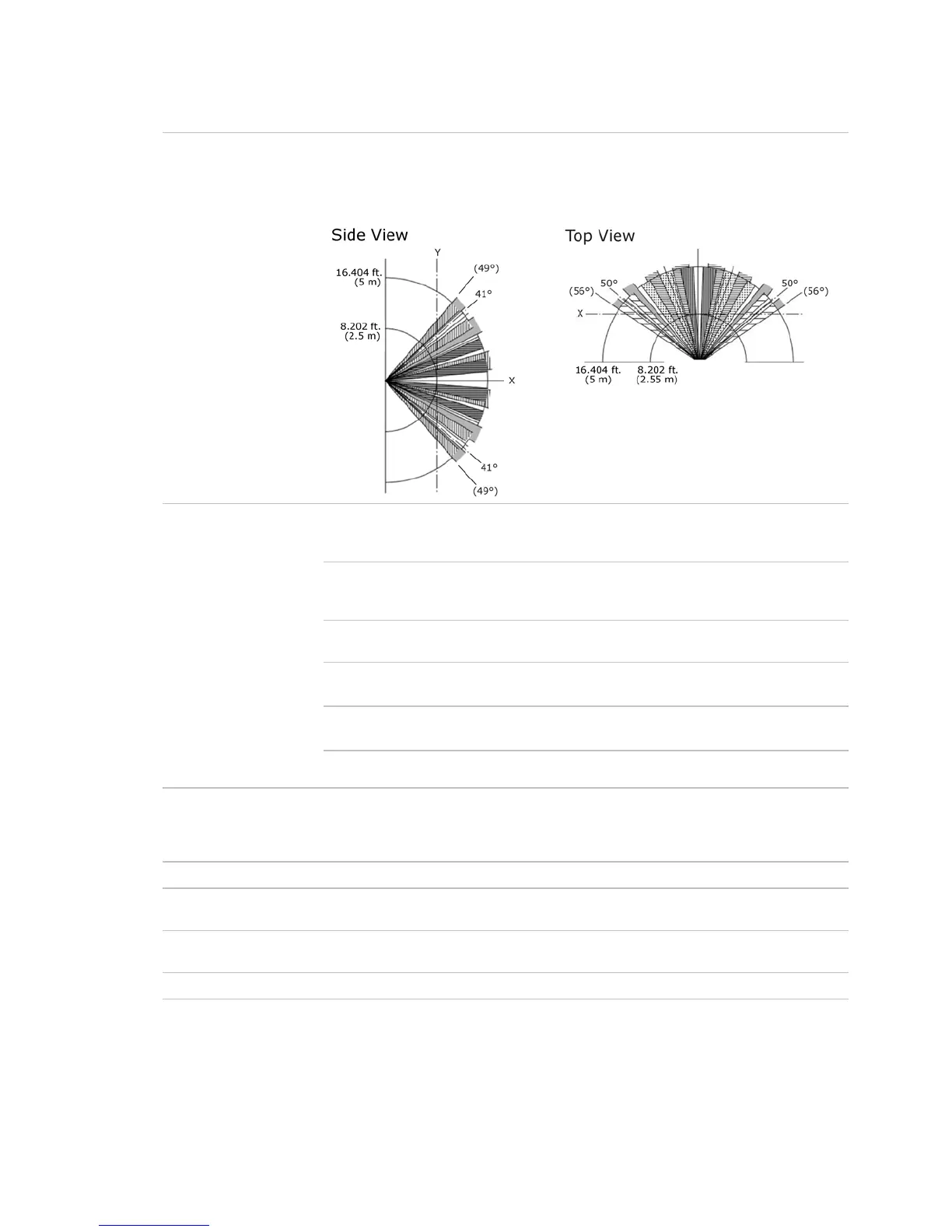

Detection range (HxV):
Movement speed:
Detection object:
16.4 in. (5 m)
100° x 82°
2.62 to 3.94 ft/s (0.8 to 1.2 m/s)
27.56 x 9.84 in. (700 x 250 mm)
Power requirements * Temperature only
ZS Standard or ZS Plus:
ZS Pro or Pro-F:
12 Vdc @ 6 mA
12 Vdc @ 7 mA
Temperature with humidity
ZS Standard or ZS Plus:
ZS Pro or Pro-F:
12 Vdc @ 7 mA
12 Vdc @ 8 mA
Temperature with humidity
and VOC - All models
12 Vdc @ 60 mA
Temperature with humidity
and CO
2
- All models
12 Vdc @ 15 mA (idle) to
190 mA (CO
2
measurement cycle)
Temperature and CO
2
-
All models
12 Vdc @ 15 mA (idle) to
190 mA (CO
2
measurement cycle)
* A ZS Pro with motion sensor has the same power requirements as a ZS Pro without a
Power supply The 4-conductor Rnet cable from a controller supplies +12 Vdc @ 210 mA. For
additional power, use an external power supply. Use the above power requirements to
calculate the size of the external power supply. The controller and the external power
supply must share a common ground.
Communication 115 kbps
Local access
port
For local access to start up and troubleshoot the system
Environmental operating
range
32 to 122°F (0 to 50°C), 10 to 90% relative humidity, non-condensing
Mounting Standard 4x2-in. electrical box using the 6-32 x 1/2" mounting screws provided
