ZS outdoor air temperature sensors
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation Guide All rights reserved
35

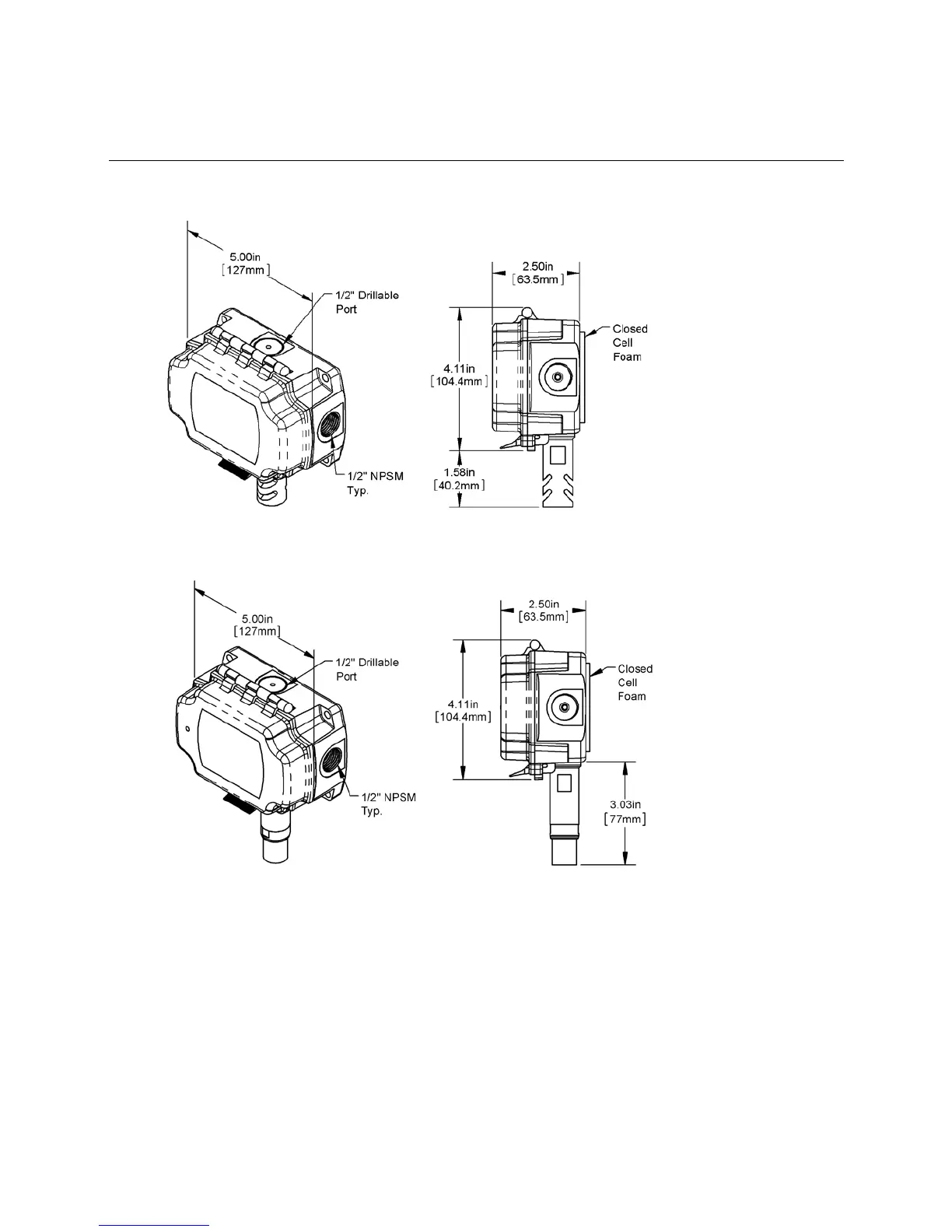

To mount a ZS outdoor air temperature sensor
Outside Air Temperature sensor
Outside Air Temperature/Humidity sensor
1 Determine the best location for the sensor. Mount the sensor:
• In the shade, never in the sunlight or you will have higher than expected temperature readings by as
much as +30%.
• Away from building windows, doors, or vents.
• At least one foot below the eave to prevent measurement of trapped heat under the eave.
• At least four feet about ground level.
