Troubleshooting a ZS Pro or ZS Pro-F
Incorrect or missing
values

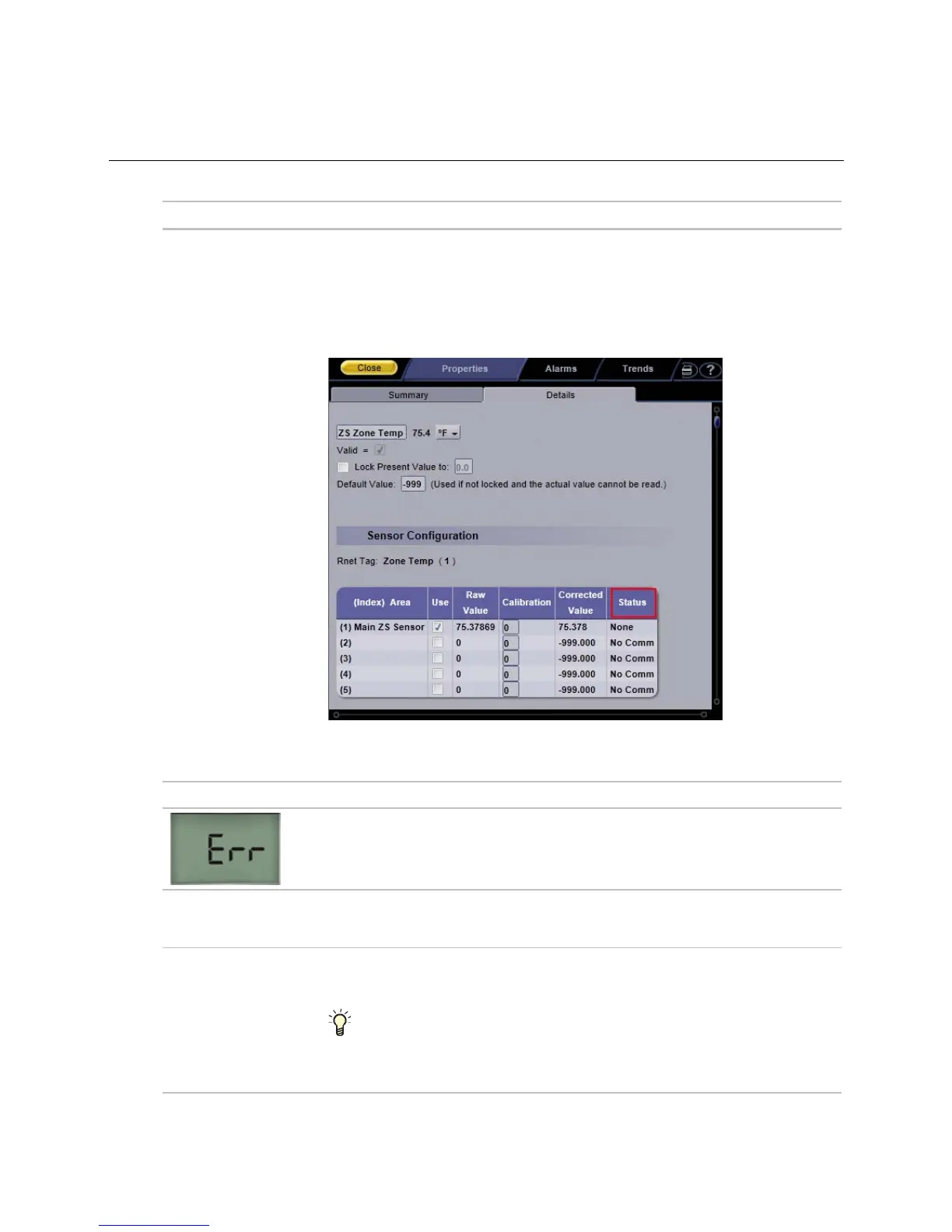

Check for errors in the i-Vu® application and Snap.
On the control program's
page, select the
tab. Verify that
values coming in from the sensors and those going out to the sensors are expected
values.
In the i-Vu® application, double-click the Sensor Binder and ASVI microblocks to
check for problems in the
and/or
columns.
If the
column shows
, try formatting the sensor. If the error is
not corrected by formatting, the control program engineer should reduce the number
of items that the sensor is trying to display.
Nothing The sensor has no power.
The sensor is not communicating with the network. Check:
• Software/addressing setup
• Wiring connections
• Controller operating status
Characters that
seem out
of place
The sensor may have a memory problem. Try formatting the sensor.
Effective setpoints fields These fields display the effective setpoint values. They can display a maximum value
of 99 or 99.5 if the
is set to 0.5. If the effective setpoint exceeds this
maximum value or if the
is set to 0.1, the value will flash.
If you need an Edit Increment of 0.1, put the effective setpoints on the
Information screen in the Primary Value field. Hide the effective setpoints on the
Home screen by selecting
Sensor Setpoint Adjust Option 4
on the
microblock's
tab.
