ZS pipe clamp-on temperature sensor
ZS Sensors Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation Guide All rights reserved
27
1 Turn off the controller's power.

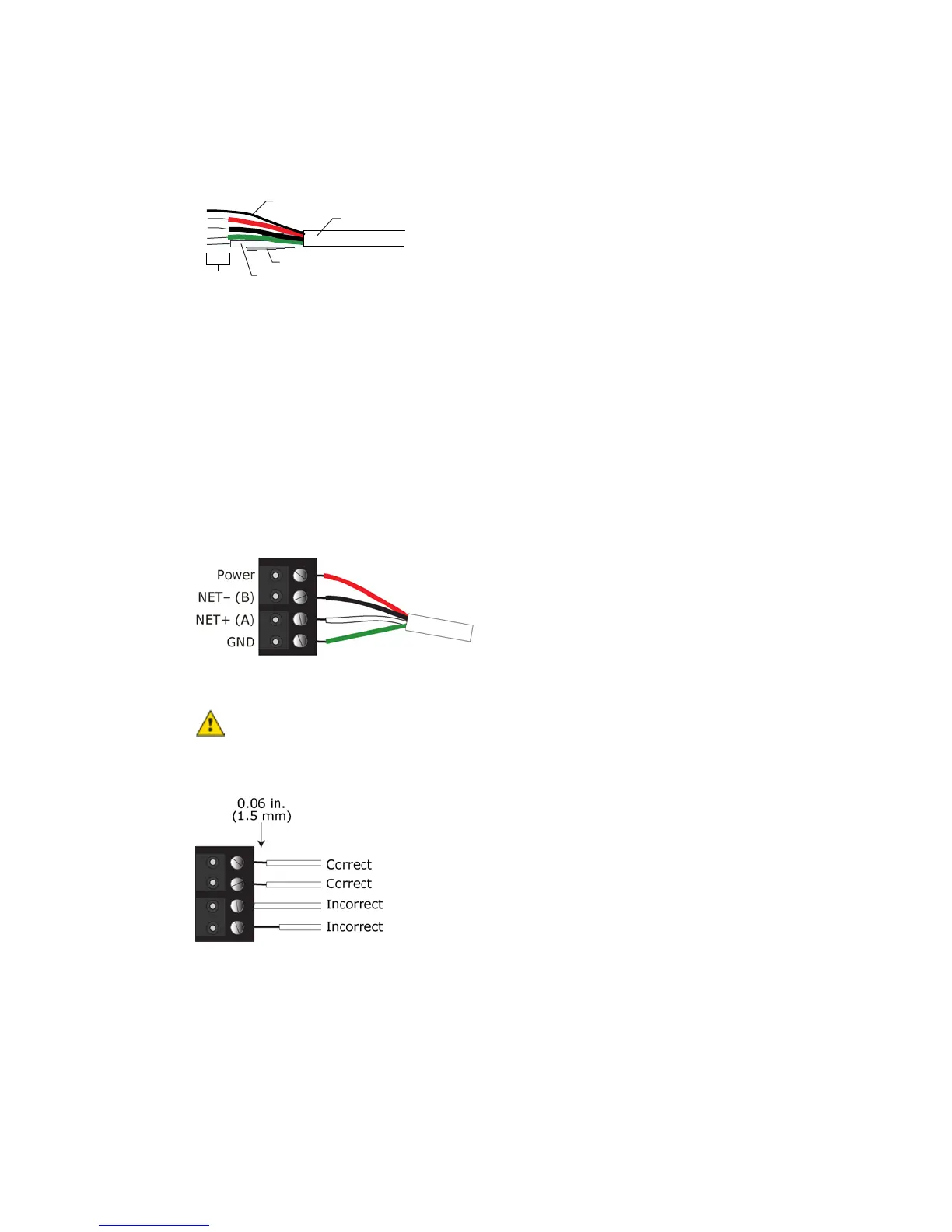

2 Partially cut, then bend and pull off the outer jacket of the Rnet cable(s). Do not nick the inner insulation.
Inner insulation
Outer jacket
Foil shield
.25 in.
(.6 cm)
Shield wire
3 Strip about .25 inch (.6 cm) of the inner insulation from each wire.
4 Unlatch and open the hinged door on the sensor's enclosure.
5 Pull the Rnet communication cable through the knockout hole.
6 If wiring 1 cable to the sensor, cut the shield wire off at the outer jacket, then wrap the cable with tape at the
outer jacket to cover the end of the shield wire.
If wiring 2 cables in a daisy-chain configuration, twist together the shield wires, then wrap the shield wires
with tape.
7 Insert the other 4 wires into the sensor's screw terminal connector. If wiring 2 cables, insert like-colored wires
into each terminal.
Carrier recommends that you use the
following Rnet wiring scheme:
Red
Black
White
Green
Power
NET-
NET+
GND
Allow no more than 0.06 inch (1.5 mm) bare communication wire to protrude. If bare
communication wire contacts the cable's foil shield, shield wire, or a metal surface other than the terminal
block, the device may not communicate correctly.
8 Close and latch the sensor's door.
9 Turn on the controller's power.
Use the same polarity throughout the Rnet.
