INSTALLATION
● Disassembly is the reverse of assembly.
● Be careful not to damage the wire when removing the display connector.

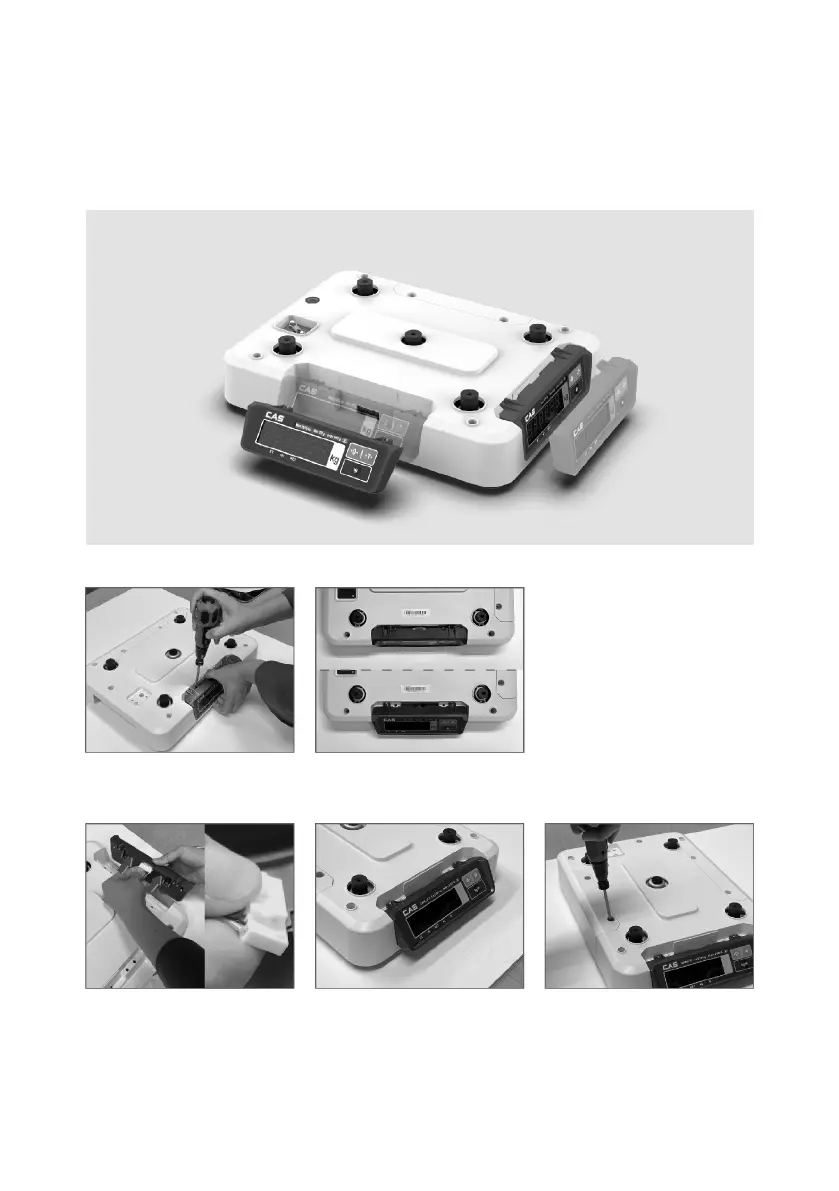

■How to move the ‘DIS PL AY ’
1)How to adjust the angle
① Detach the display.
②
Adjust the angle if necessary.
2) How to move
① Move the display & Connect
the wire connector.
②
Attach the display.
③
Complete by combining
bolts.
