PoE device
User Guide
User Guide
2-21
PoE device
The Network Extender provides the ability to be powered with an ultra-high Power
over Ethernet (Class 5 PoE++) source (see Figure 2-22).

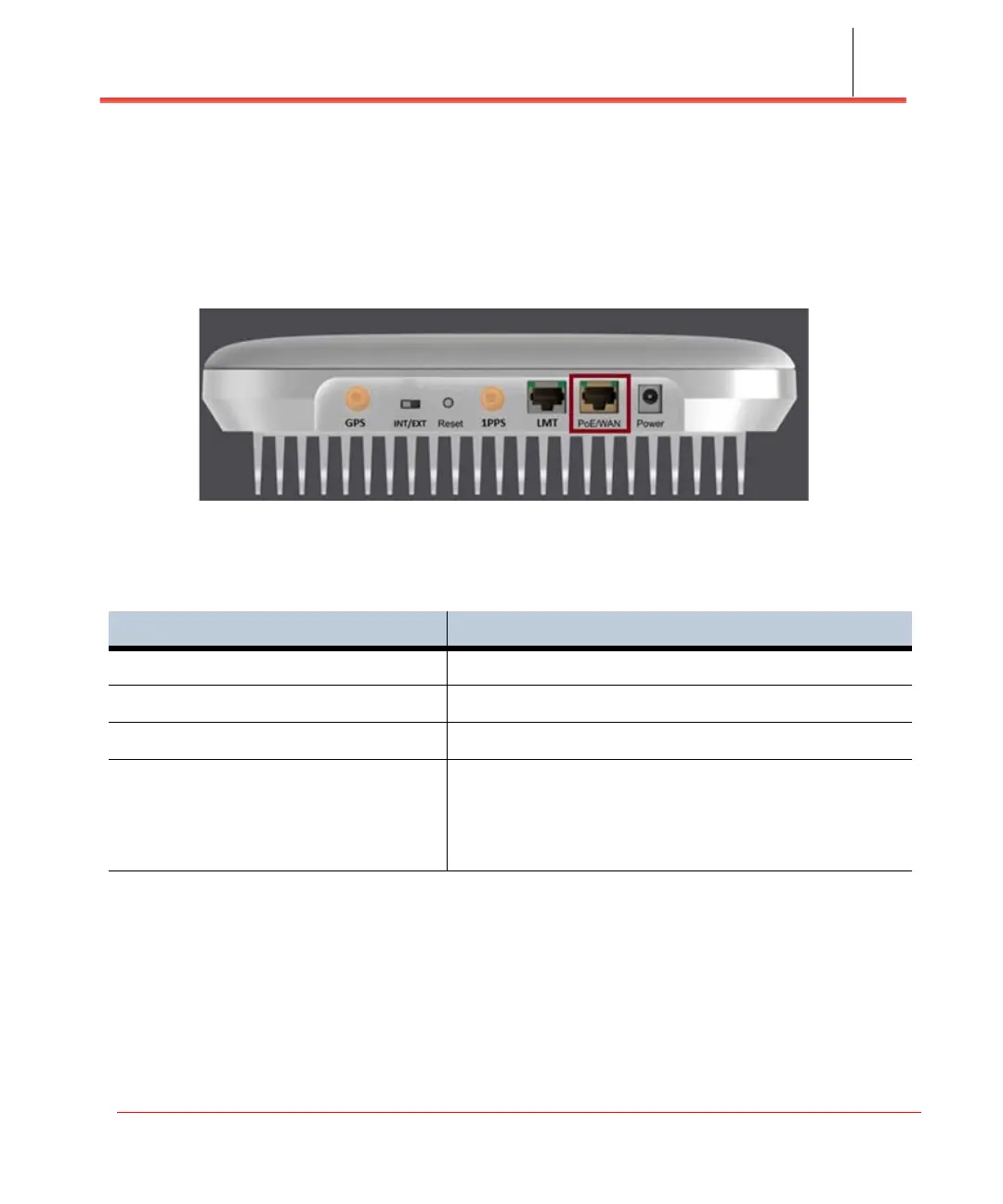

Figure 2-22. PoE/WAN port
Table 2-1 provides the recommended PoE specifications for the Network Extender.
Table 2-1. Recommended PoE specifications
Characteristic Recommendation
Maximum Output Power 60W
Output Current 960mA ~ 1.1A
Minimum Voltage 50V
Ethernet Output Interface Specification CAT5e or better
4-pair powering:
(Pin 3,4,5,6(+) Pins 1,2,7,8(-))
