Chapter 4
20 Case IH 91xx, 92xx and 93xx Series SmarTrax™ Installation Manual
2. Route the valve harness cable outside the cab through the access hole located in the right rear of the cab to
the SmarTrax valve (P/N 334-0003-089).

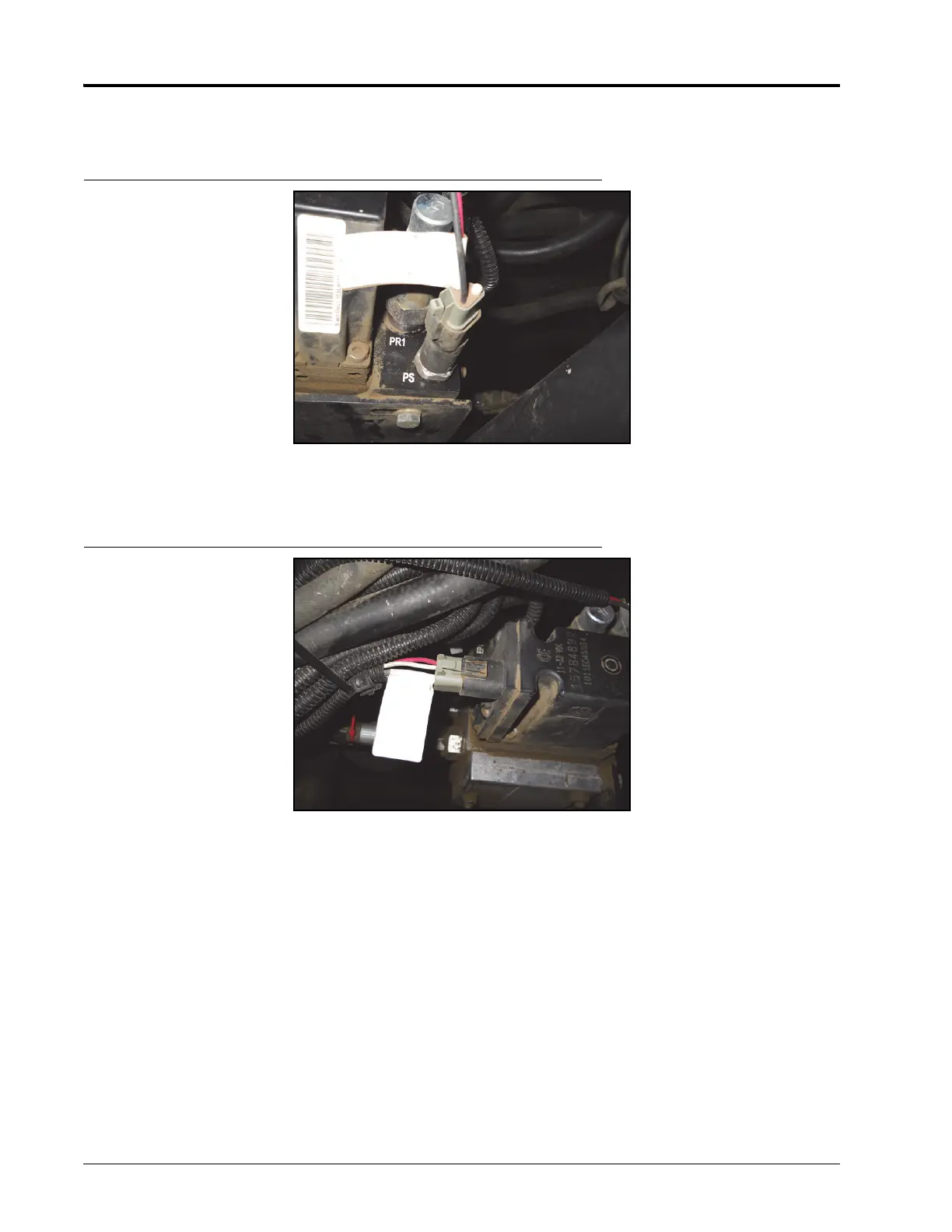

FIGURE 5. Pressure Transducer Connection
3. Connect the TRANSDUCER connector to the pressure transducer (P/N 422-0000-086) installed in Port PS
of the SmarTrax valve.
FIGURE 6. Valve Connection to PVE Port
4. Connect the VALVE connector to the open PVE connector of the SmarTrax valve.
