CDP-120
– 18 –
A-1. Insert the two tools between the rib of the chassis and a key.
A-2. When the tools are inserted to a certain depth, the key begins to be lifted and can then be
removed.

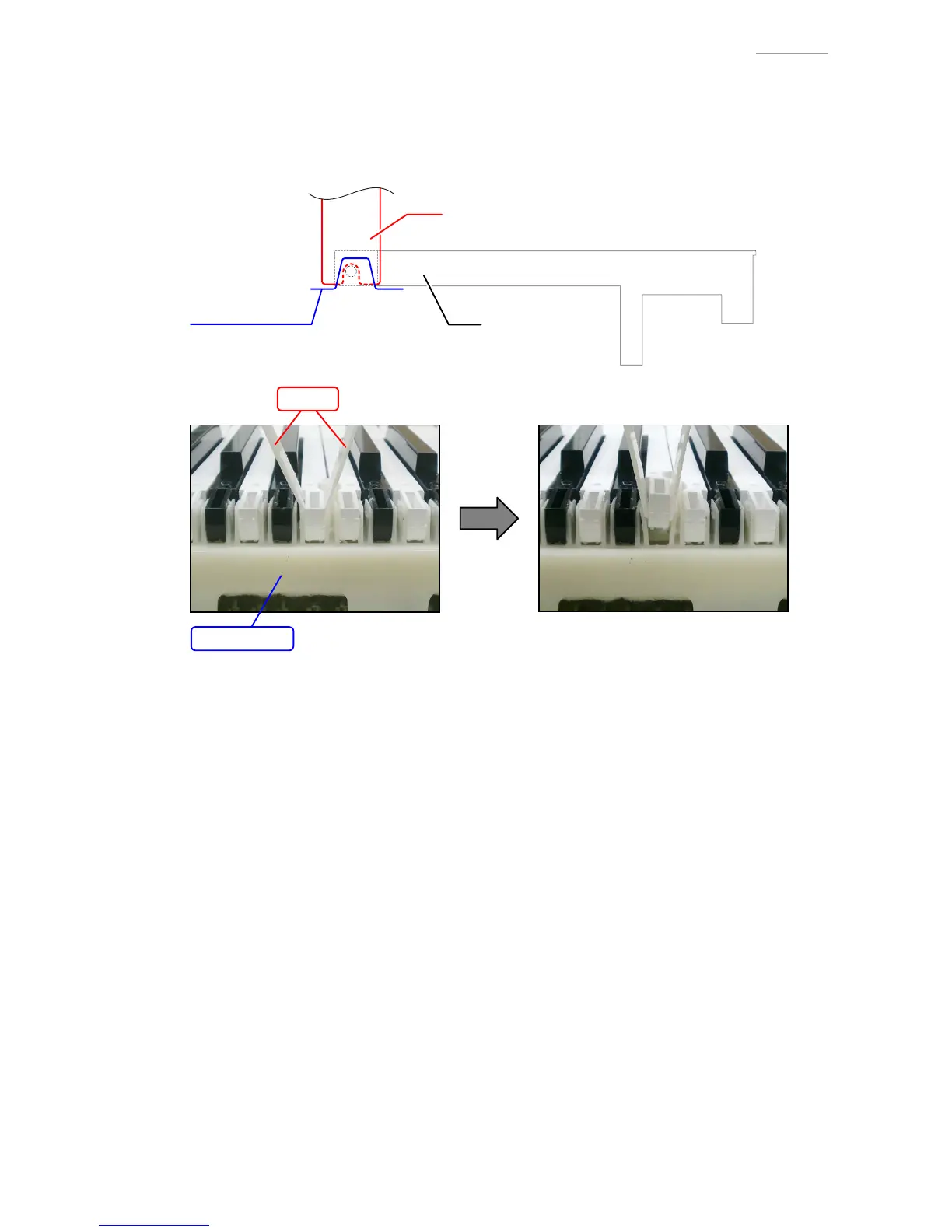

<Cross-section image>
Tools
Chassis
Tool
Key
Rib of the chassis
