Casio CDP-120 Service Manual

CDP-120
– 21 –

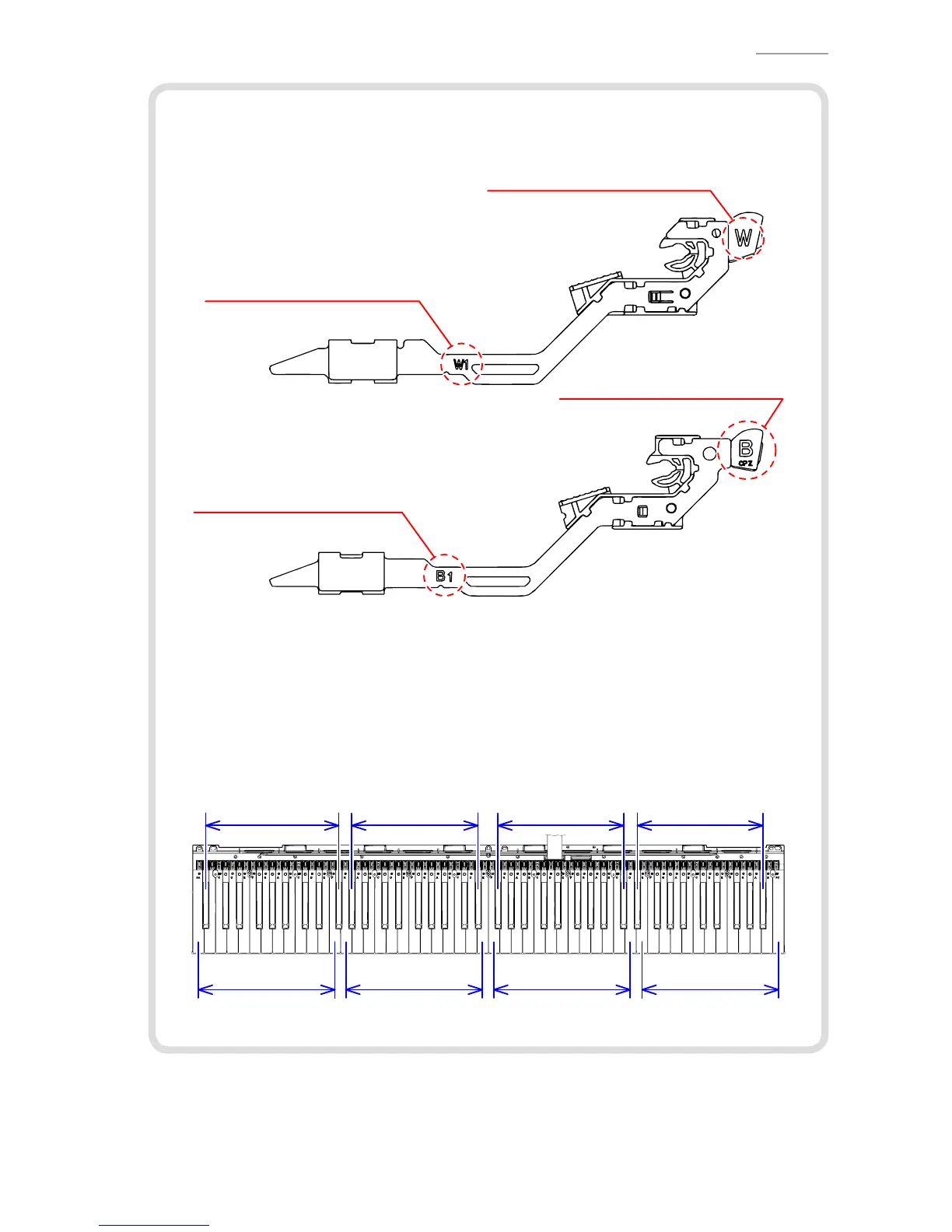

<Kinds of hammers>
There are several kinds of hammers. The type of a hammer may be identied by the code
engraved on it.
Hammer Code (for a black key)
Type of Hammer (for a black key)
Type of Hammer (for a white key)
Hammer Code (for a white key)
Type of Hammer: “W” for a white key, “B” for a black key.
Hammer Code: The hammers for white keys are coded W1, W2, W3, and W4.
The hammers for black keys are coded B1, B2, B3, and W4.
<Location to install the hammer>
A hammer must be installed at the correct location according to its type. The combination of
hammers and keys are shown below.
W1 (13 keys)
<Hammers for white keys>
<Hammers for black keys>
B1 (9 keys) B2 (9 keys) B3 (9 keys) B4 (9 keys)
W2 (13 keys) W3 (13 keys) W4 (13 keys)

Casio CDP-120 Specifications

General

Sound effects	Reverberation
Number of speakers	2
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
USB version	2.0
USB connector type	USB Type-B
Keys quantity	88 keys
Product color	Black

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	11400 g
