Casio CDP-120 - Schematic Diagrams - Keyboard PCB KYB1; Keyboard PCB Schematic (M914-KYB1)

Casio CDP-120
40 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
CDP-120
– 36 –

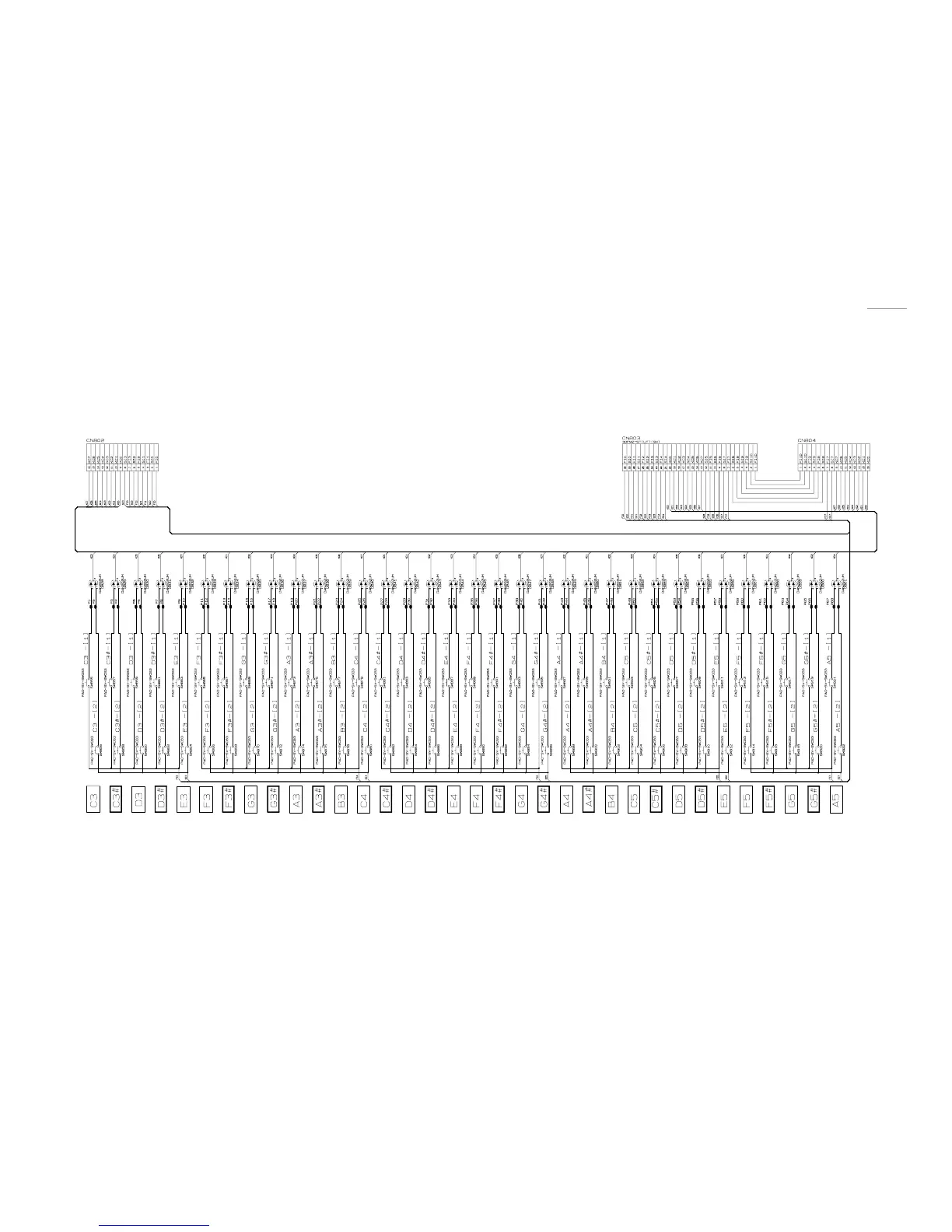

Keyboard PCB: M914-KYB1
(to KYA1/CN801) (to MDA1/CN14) (to KYC1/CN805)
