E-27
Using the CMOS Imager (Imager Models)

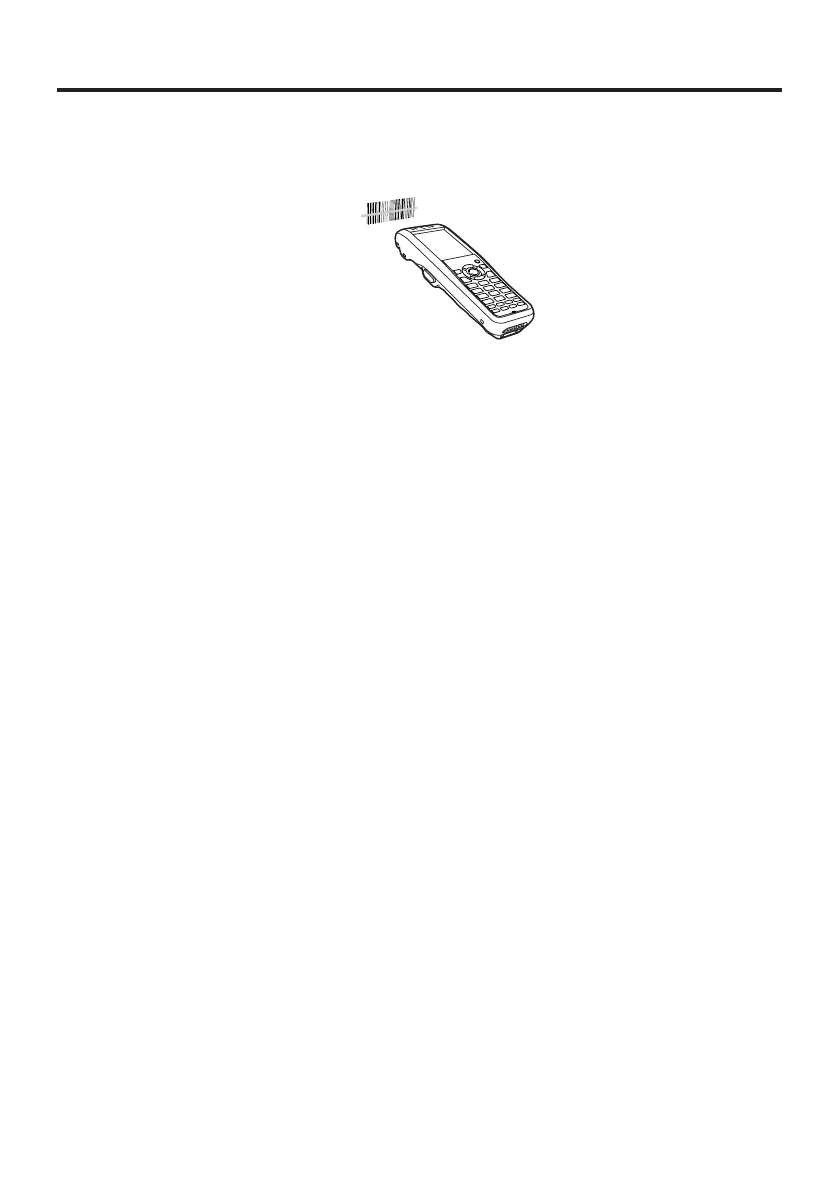

1. Turn on the Handheld Terminal, position its CMOS Imager reader port near the bar
code or 2D code, and then press the trigger key.
2. The Handheld Terminal reads the code by emitting laser and red lights.
Indicator 2 (read operation indicator lamp) lights in green when the reading is
successful.
Bar code and stacked 2D code Reading Guide
When you press the trigger key, LEDs in the Handheld Terminal emit laser and red
lights. Align the laser frame with the center of the bar code or 2D code you are trying
to read. Take particular care aligning the light when there are other bar codes nearby.
When reading a bar code in large size, adjust the position of the Handheld Terminal
so that the entire code is enclosed within the laser frame. For small size, move the
Handheld Terminal closer to it.
Important!
If you have problem not properly reading a code, change the angle and/or the
distance between the code and the Handheld Terminal and try reading it again.
A bar code can be read from a distance of 48mm to 400mm, and a stacked 2D
code can be read from a distance of 43mm to 230mm and matrix 2D code can be
read from a distance of 51mm to 300mm. The actual reading distance depends
on the symbology and the resolution.
Fingerprints, dust, dirt, or stain on the CMOS Imager reader port can cause
abnormal reading. Should the reader port become dirty, wipe it clean with a soft
and dry cloth.
•
•
•
