Casio EXILIM EX-Z16 User Manual

73
Viewing Snapshots and Movies
1. Use an optionally available AV cable (EMC-4A) to connect it to the TV.
• Make sure that you insert the cable connector into the USB/
AV port until you feel it click securely into place. Failure to
insert the connector fully can result in poor communication or
malfunction.
• Note that even while the connector is fully inserted, you still
will be able to see the metal part of the connector as shown in
the illustration.
2. Turn on the TV and select its video input mode.
If the TV has more than one video input, select the one where the camera is
connected.
3. Press [p] (PLAY) to turn on the camera.
This will cause an image to appear on the TV screen, without anything appearing
on the camera’s monitor screen.
• Pressing [ON/OFF] (Power) or [r] (REC) will not turn on the camera while the
AV cable is connected.
• You also can change the aspect ratio of the screen and the video output
system (page 115).

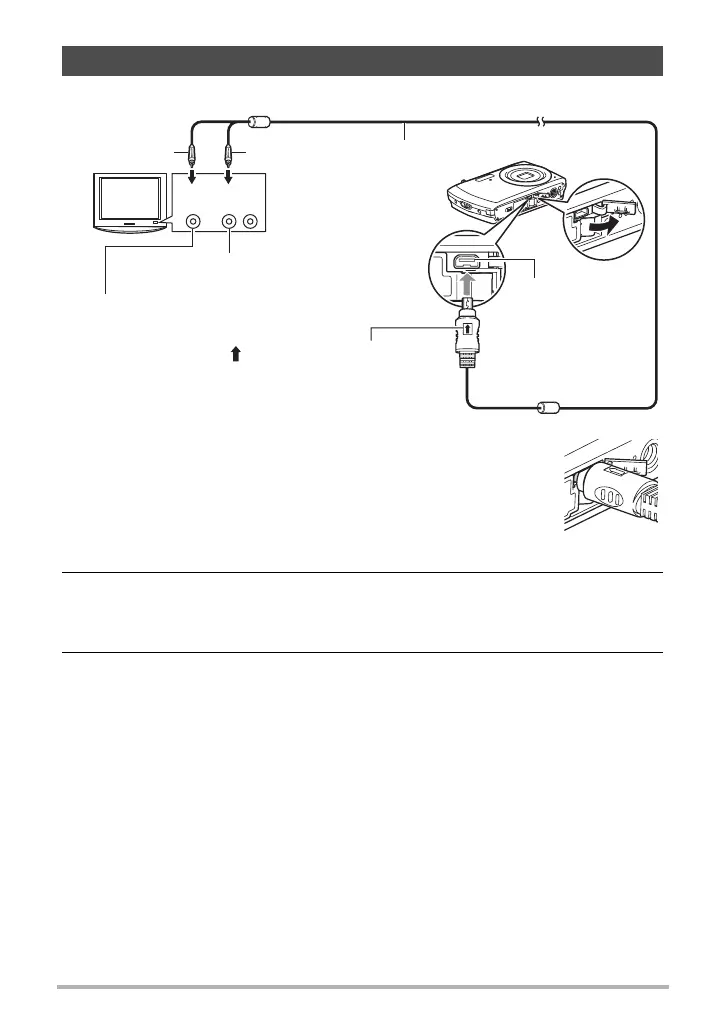

Viewing Snapshots and Movies on a TV Screen
Yellow
AV cable
USB/AV port
White
Making sure that the mark on the AV cable
connector is towards the lens side, connect the cable
to the camera.
VIDEO IN jack (yellow)
AUDIO IN jacks (white)
TV
AudioVideo

Casio EXILIM EX-Z16 Specifications

General

Megapixel	12.1 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	No
Image sensor size	1/2.3 \
Supported aspect ratios	3:2, 16:9
Maximum image resolution	4000 x 3000 pixels
Digital zoom	4 x
Optical zoom	3 x
Combined zoom	18.7 x
Focal length range	6.3 - 18.9 mm
Lens structure (elements/groups)	6/5
Interface	USB 2.0
Built-in flash	Yes
Aperture range (F-F)	2.9 - 5.4
Camera shutter speed	1/2 - 1/2000 s
Compatible operating systems	-
Focal length (35mm film equivalent)	35.5 - 106.5 mm
Auto focusing (AF) modes	Multi Point Auto Focus, Single Auto Focus, Spot Auto Focus
Super Macro focusing range	0.078 - 0.5 m
Macro focusing range (wide)	0.1 - 0.5 m
Auto Mode focusing range (wide)	1 - ∞ m
Light metering	Centre-weighted, Spot
ISO sensitivity	80, 100, 200, 400, 800, 1600, Auto
Flash modes	Auto, Flash off, Red-eye reduction
Flash range (tele)	2 - 5 m
Flash range (wide)	0.3 - 10 m
Internal memory	14.9 MB
Compatible memory cards	SD, SDHC
Video formats supported	AVI
Maximum video resolution	848 x 480 pixels
Display diagonal	2.7 \
Display resolution (numeric)	230400 pixels
USB version	2.0
Scene modes	Self-portrait
White balance	Auto, Daylight, Flash, Fluorescent, Manual, Shade, Tungsten
Camera playback	Single image
Product color	Pink
Battery type	NP-80
Battery life (max)	3.5 h
Battery life (CIPA standard)	270 shots
Camera shutter type	electronic, mechanical

Weight and Dimensions

Depth	21.59 mm
Width	98.8 mm
Height	58.42 mm
Weight	140 g
