E-16
Charging the Battery Pack
Battery pack installed in the terminal can be charged using either cradle or battery
charger. Battery charge condition can be monitored with Indicator 1 on the terminal.
Multiple battery packs can also be charged simultaneously using Dual Battery Charger.

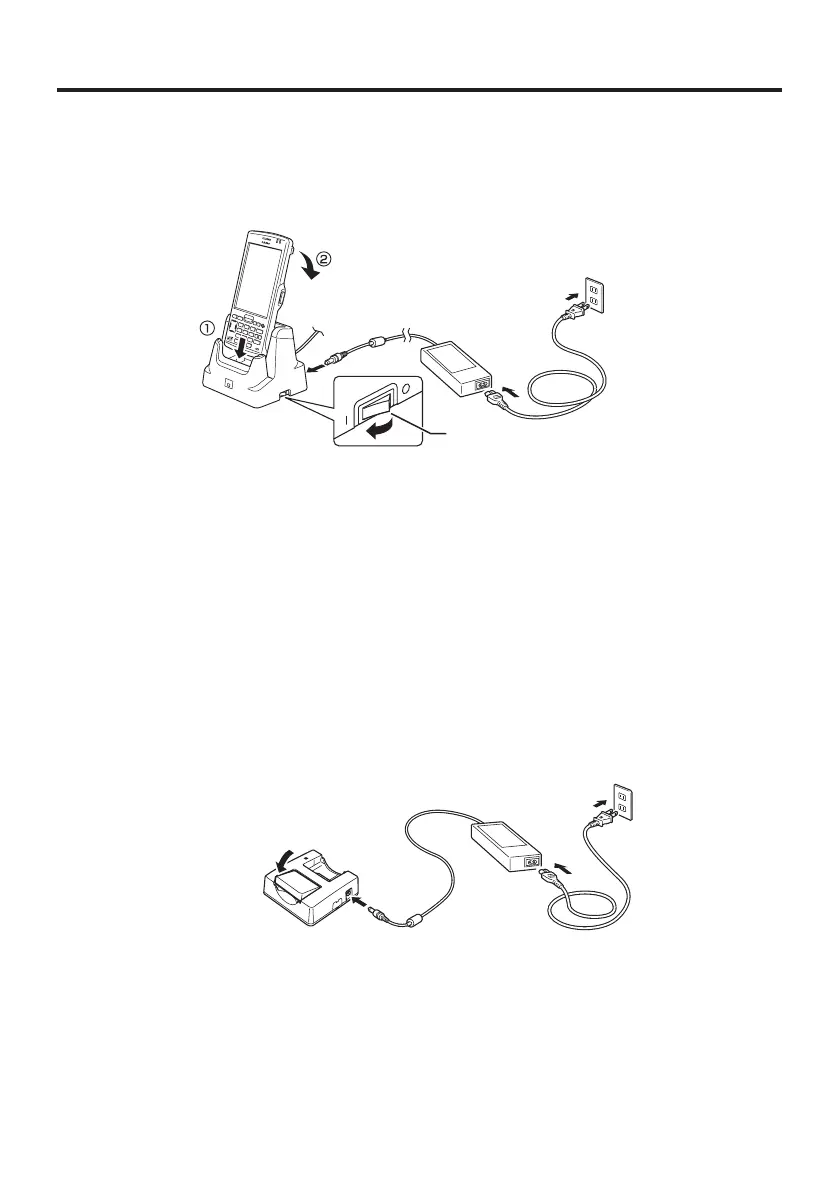

USB Cradle/Ethernet Cradle/Cradle-type Battery Charger
AC adaptor AD-S42120C for
Ethernet Cradle
AC adaptor AD-S15050B
for USB Cradle/Cradle-type
Battery Charger
Ethernet Cradle, USB Cradle only
Status of Indicator 1 on IT-G500:
Orange: Charging
Red: Standby due to battery pack error or the surrounding temperature is out of the
charging temperature range
(charging begins when the temperature is within the charging temperature range)
Green: Charging complete
Important!
Take care not to trap objects such as the neck strap in the cradle.
The data communication terminal should be cleaned from time to time using an
implement such as a dry cotton bud.
Soiling or dust buildup could cause connection problems.
Dual Battery Charger
Taking care that the battery pack is oriented correctly, insert it into the Dual Battery Charger.
This causes the Charge Indicator LED to light in red, indicating that charging has started.
AD-S42120C
You can connect up to three Dual Battery Chargers.
Status of Charge Indicator LED
Off: Not charging
Red: Charging
Red Flashing: Battery pack problem
Green: Charging complete
Green Flashing: Standby due to the surrounding temperature being beyond the
specied temperature range (Approximately 0°- 40°C) (charging
resumes when the temperature reaches the range.)
•
•
