E-48

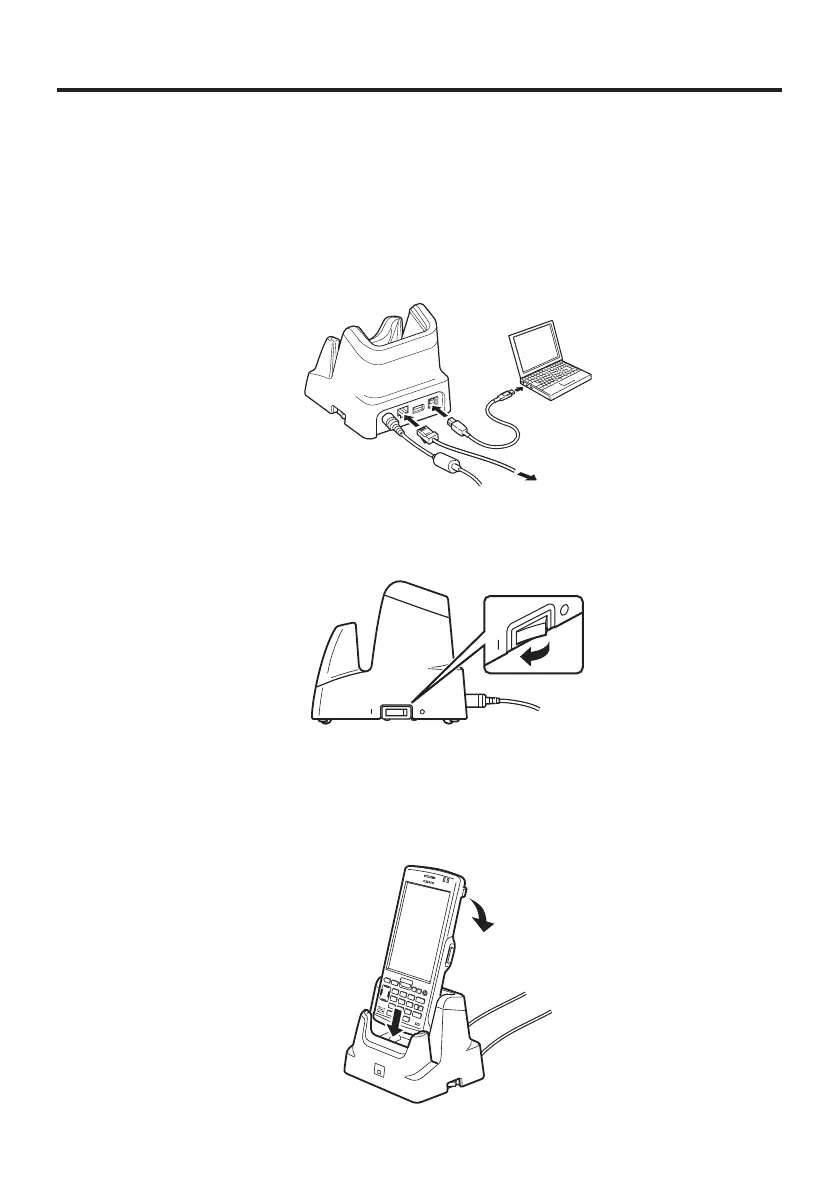

4. Before using the cradle ports, remove the caps from the ports.
When using a LAN, connect one end of the LAN cable to the LAN port and the other
end to the PC or hub.
When using a USB connection, connect one end of the USB cable (DT-380USB-A)
to the USB port and the other end to the PC.
The USB host port is used for connecting the cradle with other USB peripheral
device.
PC
PC or hub
5. Turn on the power switch on the right side of the Ethernet Cradle. The power LED on
the front of the Ethernet Cradle lights red.
6. Align the contacts on the bottom of the IT-G500 with the power contacts of the
Ethernet Cradle when inserting the unit.
The power LED on the front of the Ethernet Cradle will light green if the Handheld
Terminal has been properly mounted.
To Next Page
