PX-150
– 11 –


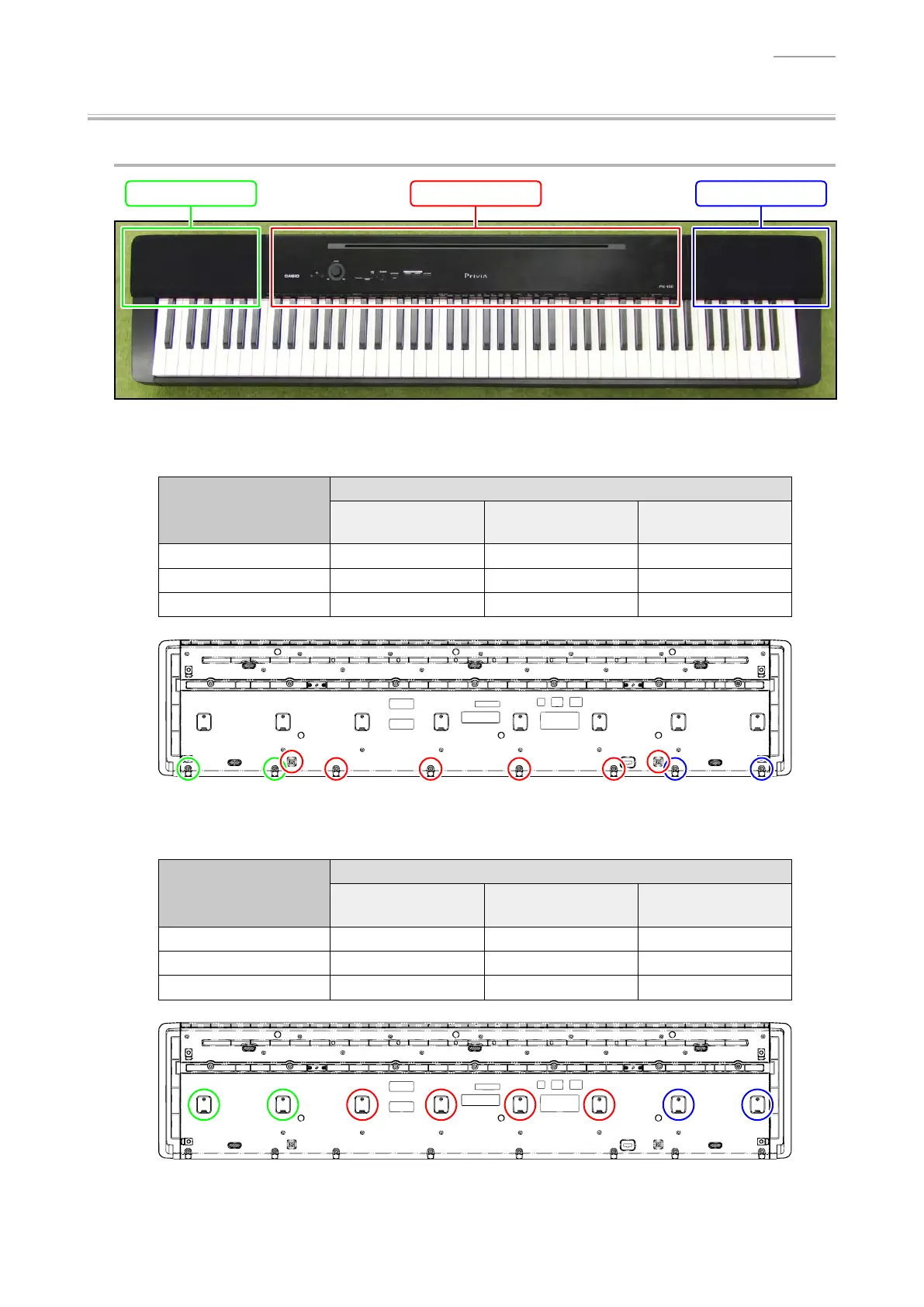

Disassembly Procedure
A. Remove the Case
Console Unit Right panel unitLeft panel unit
A-1. Undo screws on the bottom surface.
NOTE: The number of screws differs by the unit to be removed.
Parts
Screws to Undo
Six places
in red circles
Two places
in green circles
Two places
in blue circles
Console Unit
  
Left Panel Unit
  
Right Panel Unit
  
A-2. Undo screws on the bottom surface and then remove the LOWER COVER.
NOTE: The number of screws and LOWER COVER differs by the unit to be removed.
Parts
Screws and LOWER COVER to Undo/Remove
Four places
in red circles
Two places
in green circles
Two places
in blue circles
Console Unit
  
Left Panel Unit
  
Right Panel Unit
  
