Casio XW-P1 - Editable solo Synthesizer Tone Parameters

Selecting and Creating Tones
E-22
Solo Synthesizer tones are synthesized by combining tones of the six blocks, number (1) through (6), in the illustration below.
Before actually getting into tone editing, you should spend a little time becoming familiar with the structure and the details of each
block.

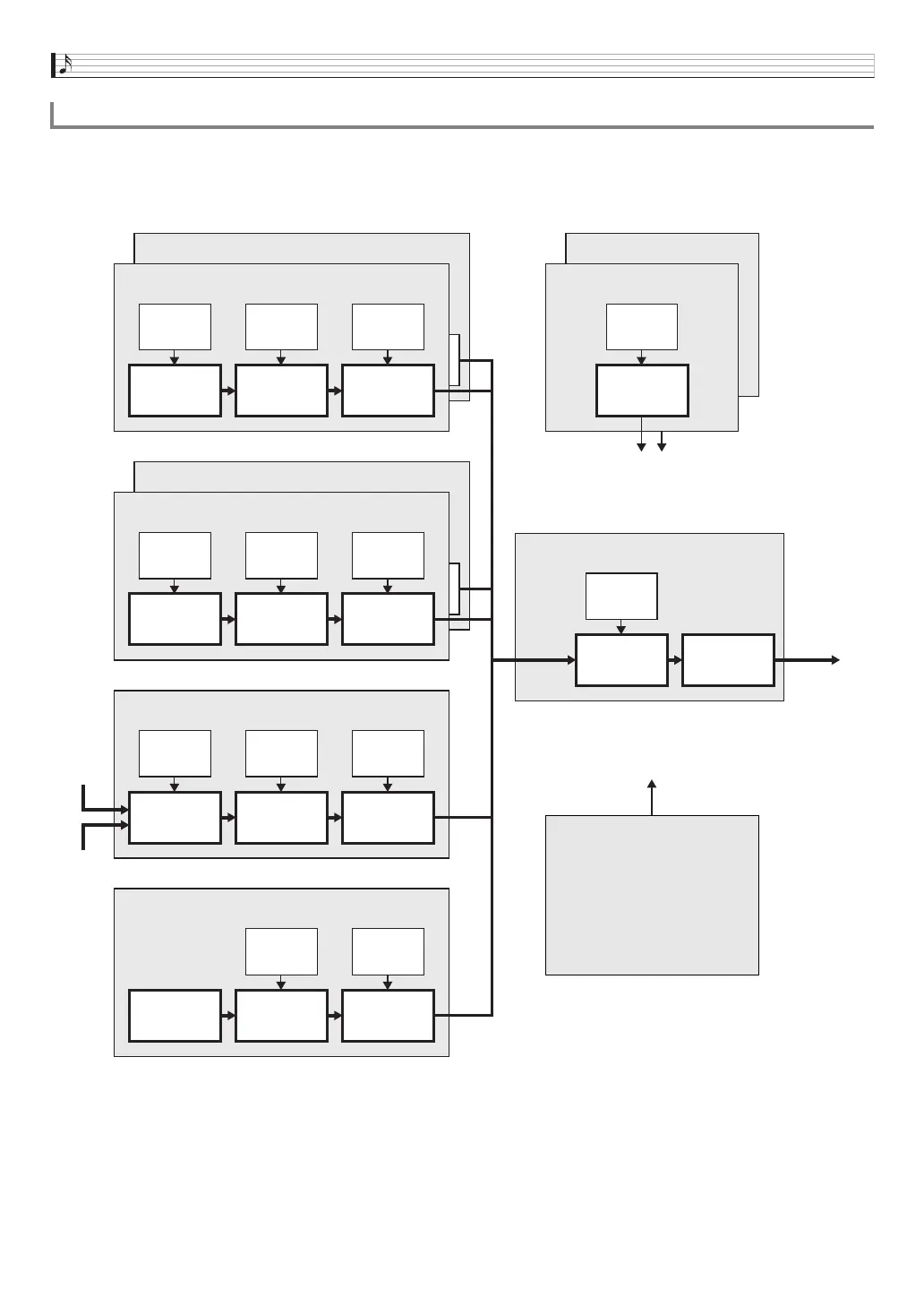

■ Solo Synthesizer Tone Configuration Diagram
* Envelope Generator
Editable Solo Synthesizer Tone Parameters
MIC IN
INST IN
(1) Synth OSC1 Block
EG
*
EG
*
EG
*
Synth OSC Filter Amp
(2) Synth OSC2 Block
(3) PCM OSC1 Block
EG
*
EG
*
EG
*
PCM OSC Filter Amp
(4) PCM OSC2 Block
(5) External Input Sound Block
EG
*
EG
*
EG
*
Pitch shifter Filter Amp
(6) Noise Block
EG
*
EG
*
Noise
generator
Filter Amp
(8) LFO1 Block
EG
*
LFO
(9) LFO2 Block
(7) Total Block
EG
*
Filter
Solo
Synthesizer
DSP
Output
To blocks (1) through (9)
(10) Controllers
• Keyboard
• Pedal
•
bm
HOLD
• Bender
• Modulation
• MIDI receive messages
(Virtual controllers)
To blocks (1) through (7)
