2 DESCRIPTION
2.A DESCRIPTION OF THE CS940 PARTS

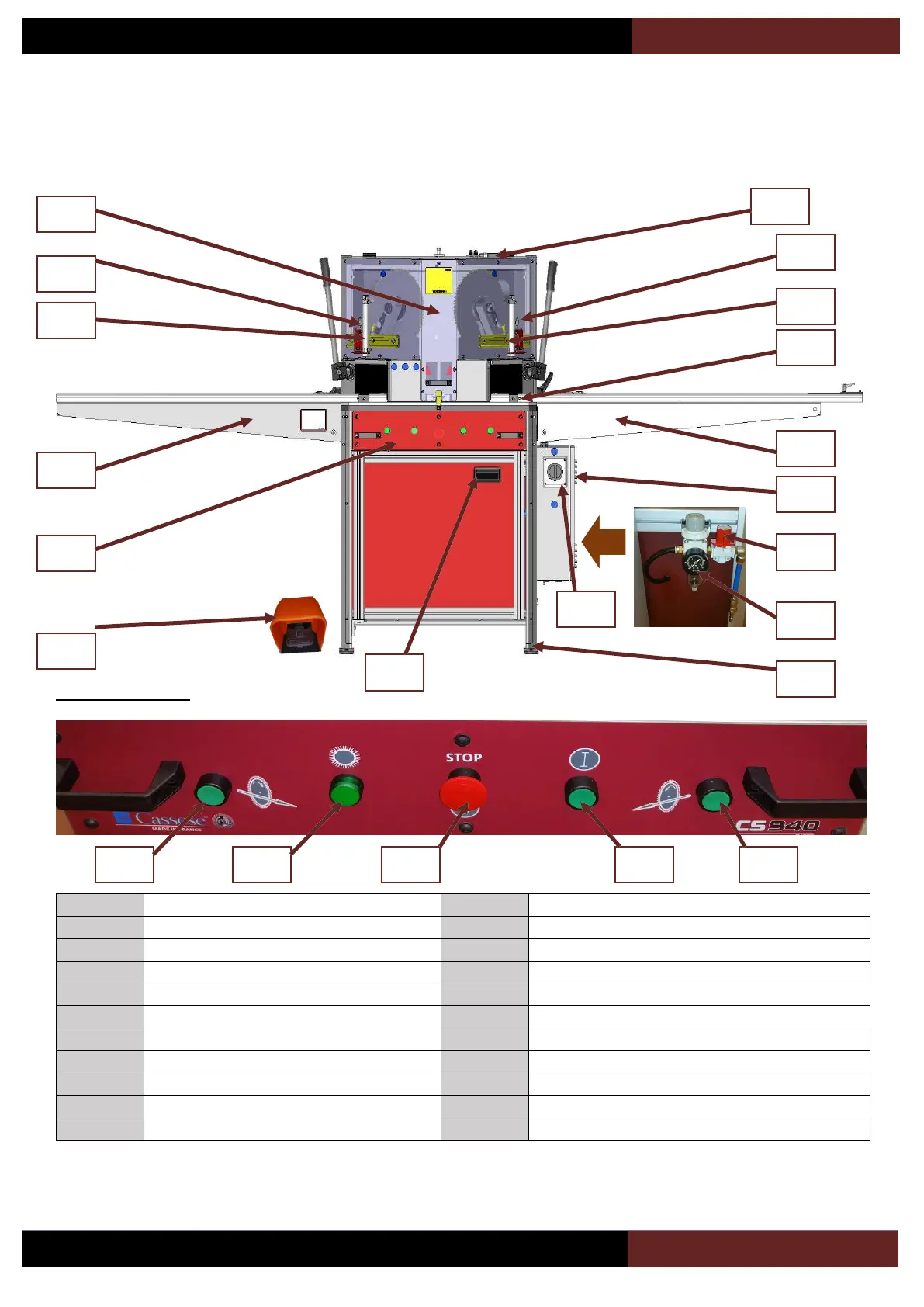

Control panel (10) :
1
Cover
2
Left vertical clamp handle
3
Right vertical clamp handle
4
Left vertical clamp
5
Right vertical clamp
6
Moulding guide
7
Left arm
8
Right arm
9
Electrical cabinet door
10
Control panel
11
Safety switch
12
Main circuit breaker (can be locked with a locker)
13
Air pressure regulator
14
Levelling feet (x4)
15
Air switch (can be locked with a locker)
16
Power light
17
Blade stop button
18
Blade start button
19
Left blade acknowledgment button
20
Right blade acknowledgment button
21
Pedal
22
Wastage compartment door
