INSTALLATION PROCEDURE FOR DECORATIVE CAST SURROUND
8
1. Install the decorative cast surround into the fireplace opening and ensure it is fully sealed including the open
area above the fire (see Fig. 7).
2. Carefully lift the fire box out of the packaging taking care not to damage the ceramic components in the
separate carton.
3. Cut the foam sealing strip (in plastic bag supplied) to length and stick a continuous strip up one side, across
the top and down the other side of the rear of the radiant box. When the box is placed against the cast surround
the foam strip will form a seal around the boxes flange.
4. Lift the fire box on to the two studs at the top of the surround and
c
heck that the flange of the radiant box fits flush against the sealing
face with no gaps present.
5. Locate the decorative frame on to the studs and secure with the
two nuts provided.
6. Insert the two screws into the lower holes in the decorative frame
and carefully tighten ensuring the fire box is securely clamped
between the frame and the surround.

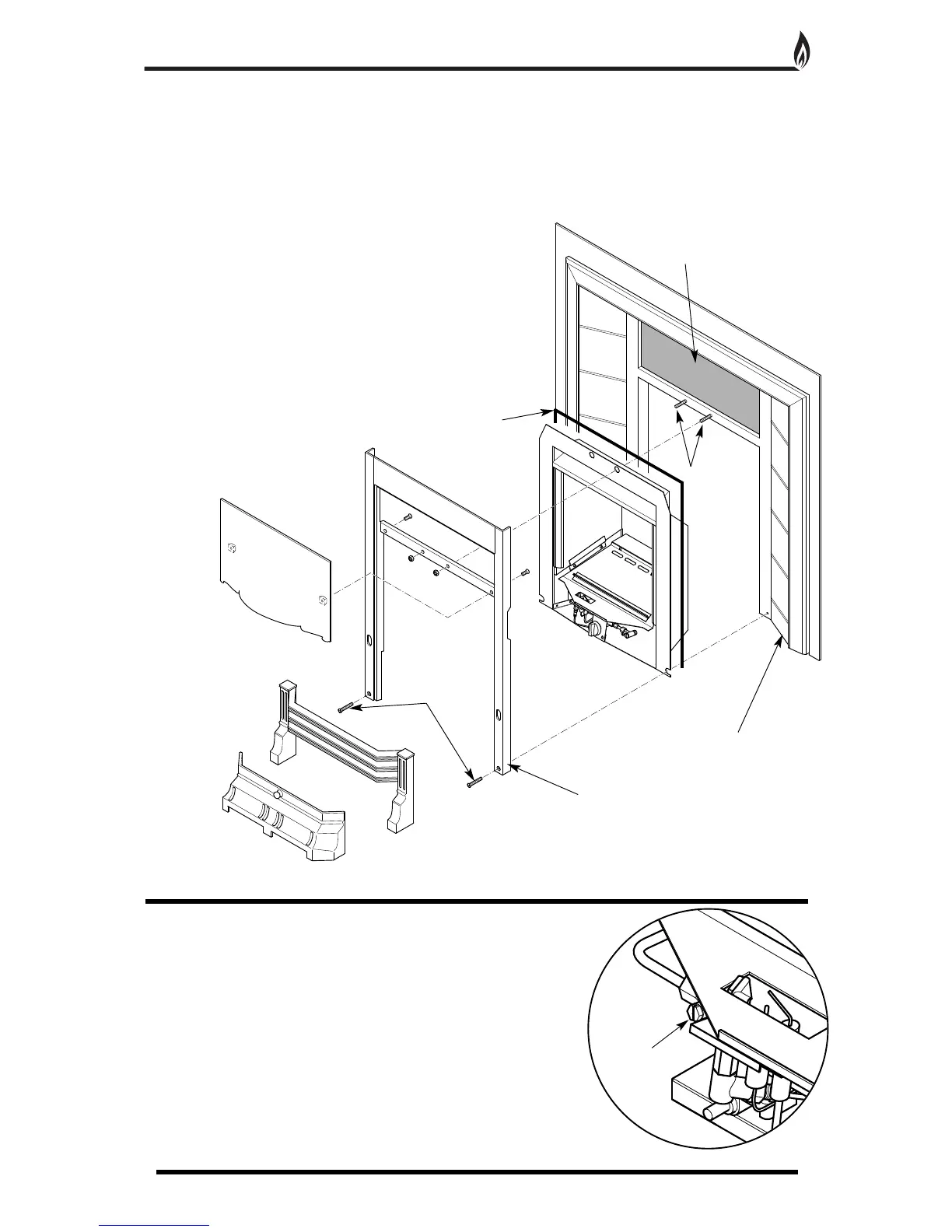

Fig. 7
Decorative Cast
Surround
Securing
S
tuds
Securing Screws
Decorative Frame
E
NSURE THIS AREA
I
S SEALED
Foam Sealing Strip
1. Unscrew the pressure test point sealing screw (Fig. 8) and fit a manometer.
Consult the user instructions (page 15). Ignite the appliance and turn to the
high position.
2. Take a pressure reading and consult the technical data (page 9) to
establish the correct working pressure.
3. Once the pressure has been checked and verified, turn off the
appliance. Consult the ceramic component set up diagrams
(pages 18-19) and fit the ceramics as per the instructions.
Pressure Test Point
COMMISSIONING
Fig. 8
