Caterham 7 - Attaching the Rear Dampers

ASSEMBLY GUIDE
102
PART
NUMBER
QTYUSED ON
1HA
BM12X100
2
A-frame fromt
mountings
2HB
BMCH10X65
2
Front radius arm
(through cockpit)
3HC
BF1/2X2.1/2
4
x 2 Lower Rear
Damper x
2 Rear Radius Arm
4HD
BM6X80
4
Rear Anti Roll Bar
Mounting Blocks
5HE
BF1/2X2.3/4
1 A-frame to DeDion
6HF
NFYH1/2
3
x 2 Rear Radius
Arm x
1 A-frame to DeDion
7HG
NMYF12
2
A-frame front
mounts
8HH
NMYF10 2
Front radius arm
(through cockpit)
9HI
NMYH8
2
Rear Anti Roll Bar
Drop Link
10 HJ
NMYF6
4
Rear Anti Roll Bar
Mounting Blocks
11 HK
NFYF1/4
1
3 - way union on
DeDion tube
Drawings are for illustrative purposes only and are not to scale.
Nyloc Nut 1/4"
Page 1 of 2
Nyloc Nut
M10
Half Nyloc
M8
Nyloc Nut
M6
Bolt 1/2" X 2.3/4"
Grade 10.9
Half Nyloc
1/2" UNF
Nyloc Nut
M12
Caphead Bolt
M10 X 65
Bolt
1/2" X 2.1/2"
Grade 10.9
Bolt M6 X 80
Grade 10.9
REAR SUSPENSION DEDION METRIC
This pack may include extra fasteners to cover different options
ITEM
BASIC
DESCRIPTION
ILLUSTRATION
Bolt M12 X 100
Grade 10.9
H
SERIAL
NUMBER
53
Pack
PACK NUMBER
30R011D

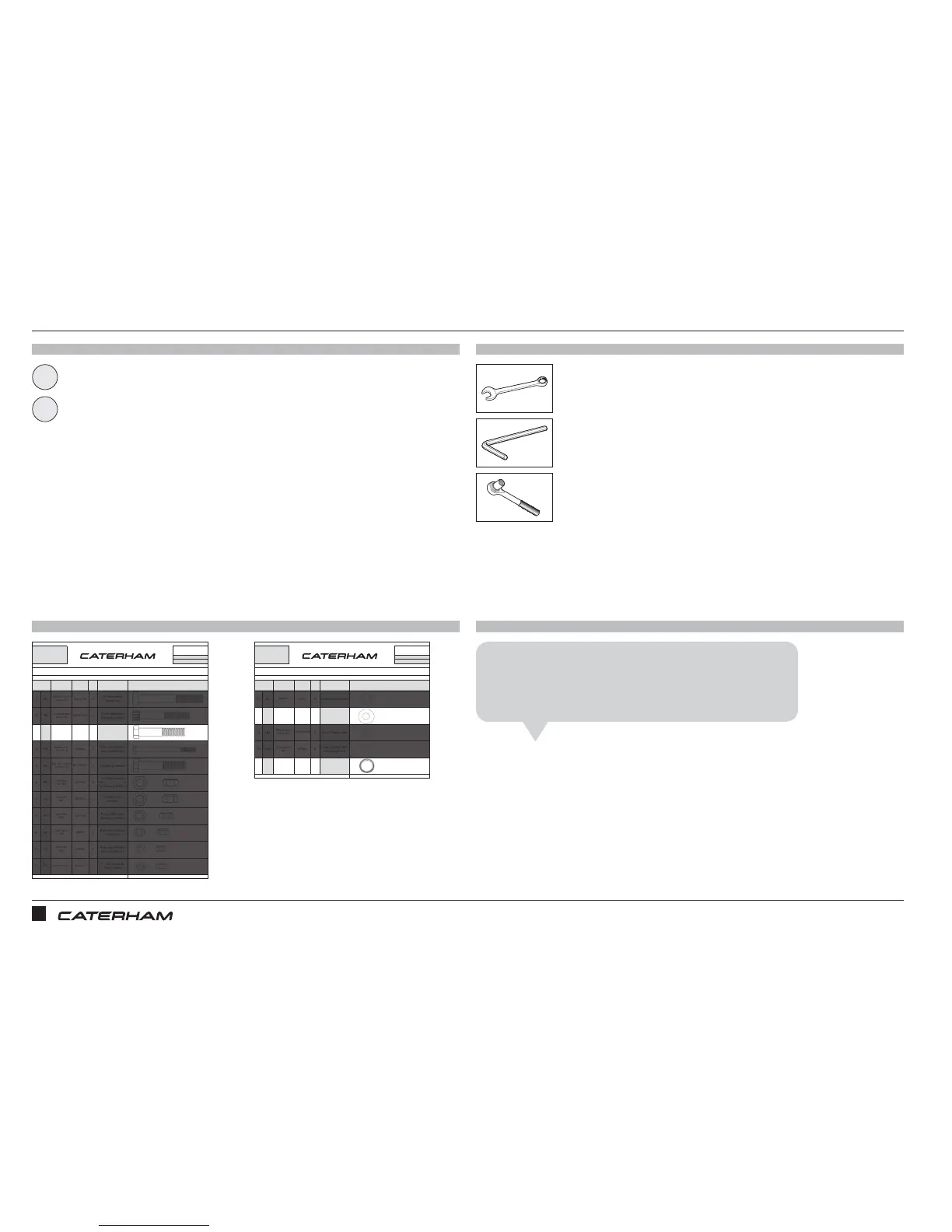

ATTACHING THE REAR DAMPERS
PARTS
FIXINGS
TOOLS
TIPS
PART
NUMBER
QTYUSED ON
12 HL
79029
10 Differential Isolation
13 HM
WPH1/2
20
x 2 Lower Damper
x 10 A-frame
washers x
4 Radius Arm
14 HN
WPH3/8X7/8
2Front Radius Arm
15 HO
WPHM6
4
Rear Anti Roll Bar
Mounting Block
16 HP
30Z1069A
2 Lower Damper
Drawings are for illustrative purposes only and are not to scale.
H
SERIAL
NUMBER
53
Pack
PACK NUMBER
30R011D
REAR SUSPENSION DEDION METRIC
This pack may include extra fasteners to cover different options
ITEM
BASIC
DESCRIPTION
ILLUSTRATION
Washer
Page 2 of 2
Schnorr Washer
M12
Plain Washer
1/2" Chamferred
Plain Washer
3/8" X 7/8"
Plain Washer
M6
x2
Rear damper assembly
Rear damper sleeve
x4
x2
1
2
13mm
14mm
8mm
19mm
Although we show the fitting of the dampers here as part
of the rear suspension, it is better to leave this step until
you've fitted the roll over bar much later in the process.
Jamie A
