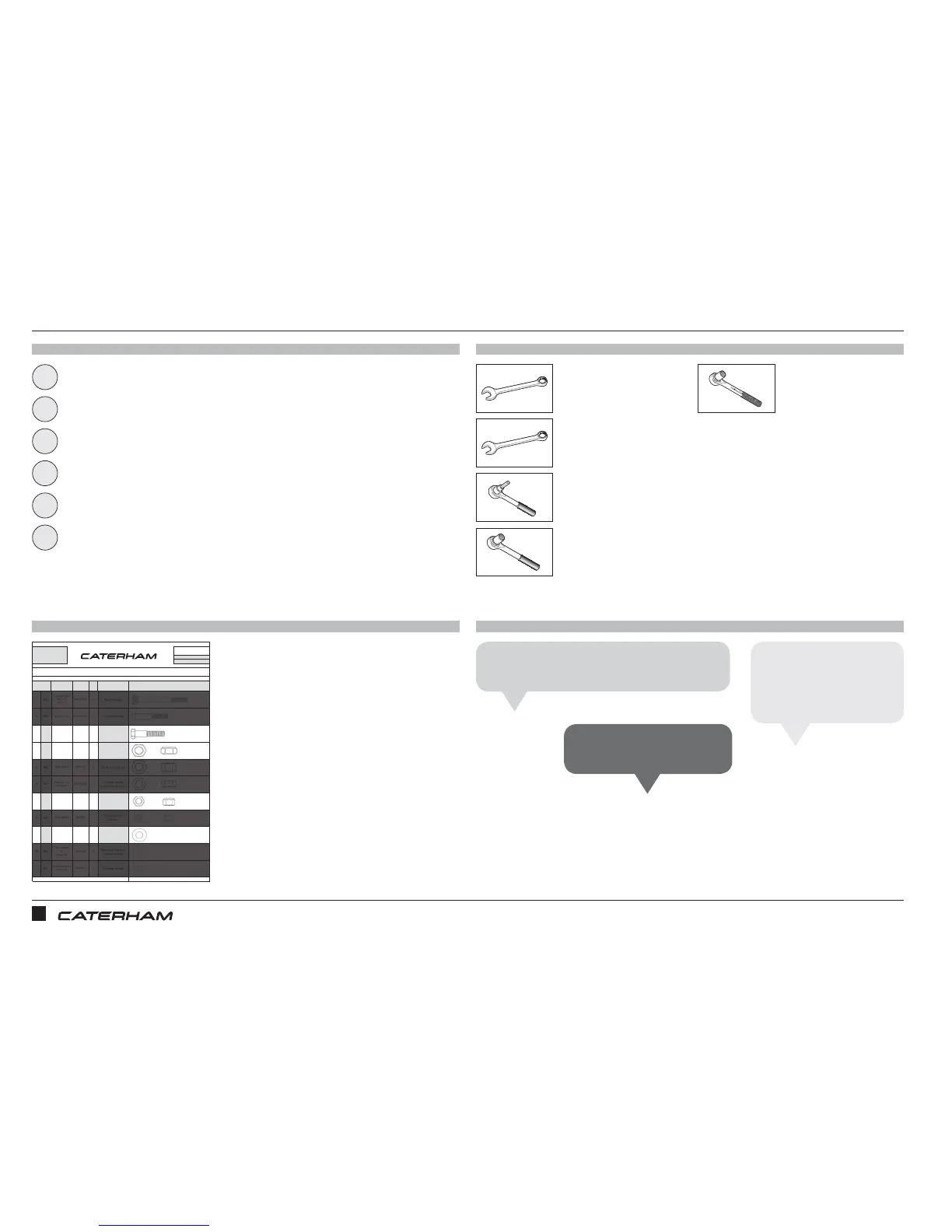

Caterham 7 - Rear Suspension and Drivetrain Assembly; Giving It Some Direction (Steering)

ASSEMBLY GUIDE
86
PART
NUMBER
QTYUSED ON
1BA
BMCH6X70
4Rack clamps
2BB
BF1/4X1.1/2
2Column clamp
3BC
BM8X35
2
Column to rack
universal joint
4BD
NFYH1/2
1Steering wheel boss
5BE
NFPF1/2
2Track rod lock nut
6BF
NFPFH7/16
1
Column clamp
grubscrew locknut
7BG
NMYF8
2
Column to rack
universal joint
8BH
NMYF6
4
Steering rack
clamps
9BJ
WPH1/2
1
Steering wheel boss
10 BK
WPH1/4
6
Rack clamps and
column clamp
11 BL
WSH1/4
2
Column clamp
Drawings are for illustrative purposes only and are not to scale.
B
SERIAL
NUMBER
55
Pack
PACK NUMBER
30S003B
STEERING DeDION CARS (METRIC)
This pack may include extra fasteners to cover different options
ITEM
BASIC
DESCRIPTION
ILLUSTRATION
Caphead Bolt
M6 x 70
DIN 912
Bolt ¼" x 1½"
Bolt M8 x 35
Grade 8.8
Nyloc Nut ½"
Half height
Plain Nut ½"
Plain Nut ⁷⁄₁₆"
Half height
Nyloc Nut M8
Spring Washer ¼
Heavy duty
Page 1 of 1
Nyloc Nut M6
Plain Washer
½" x 1⅛"
Chamfered
Plain Washer
¼"
Heavy duty
PARTS
FIXINGS
TOOLS
TIPS
x2
x1
x2
x1
⁄"
11mm
Lower steering column
Steering column clamp
Steering column bush
Upper steering column
Grub screw
Steering column clamp plate
⁄"
⁄"
1
3
6
2
5
4
GIVING IT SOME DIRECTION
Put the clamp in the middle of column recess.
Jamie A
Grease the steering bushes.
Lee A
Fit the clamp bolts first,
then grubscrew & finish
with the locking nut.
Tiago O
