PACK NUMBER
30F015B
FRONT SUSPENSION DeDION CARS (METRIC)
This pack may include extra fasteners to cover different options
ITEM
BASIC
DESCRIPTION
ILLUSTRATION
Bolt M12 x 100
Grade 10.9
Bolt M12 x 65
Grade 10.9
Bolt M10 x 65
Grade 10.9
Bolt M10 x 60
Grade 10.9
Bolt M8 x 40
Grade 10.9
Plain Nut M14
x 1.5 thread
Nyloc Nut M12
Plain Washer
⅜" x ¾"
Heavy duty
Page 1 of 2
Nyloc Nut M10
Plain Washer
M12
Chamfered
Plain Washer
M8
Heavy duty
PART
NUMBER
QTYUSED ON
12 AM
WSHM12
2
Lower wishbone
front
13 AN
WSHM8
6
Anti-roll bar
mounting brackets &
upper damper
mount
14 AP
WSS3/8
2 Brake pipe
15 AR
NFYH1/2
2Wing stay
16 AS
NFYF1/2
2
Front brake, upright
mounting (std track
ONLY)
Drawings are for illustrative purposes only and are not to scale.
A
SERIAL
NUMBER
44
Pack
PACK NUMBER
30F015B
FRONT SUSPENSION DeDION CARS (METRIC)
This pack may include extra fasteners to cover different options
ITEM
BASIC
DESCRIPTION
ILLUSTRATION
Spring Washer
M12
Nyloc Nut ½"
Full height
Page 2 of 2
Spring Washer
M8
Washer ⅜"
Shake-proof
Nyloc Nut ½"
Half height

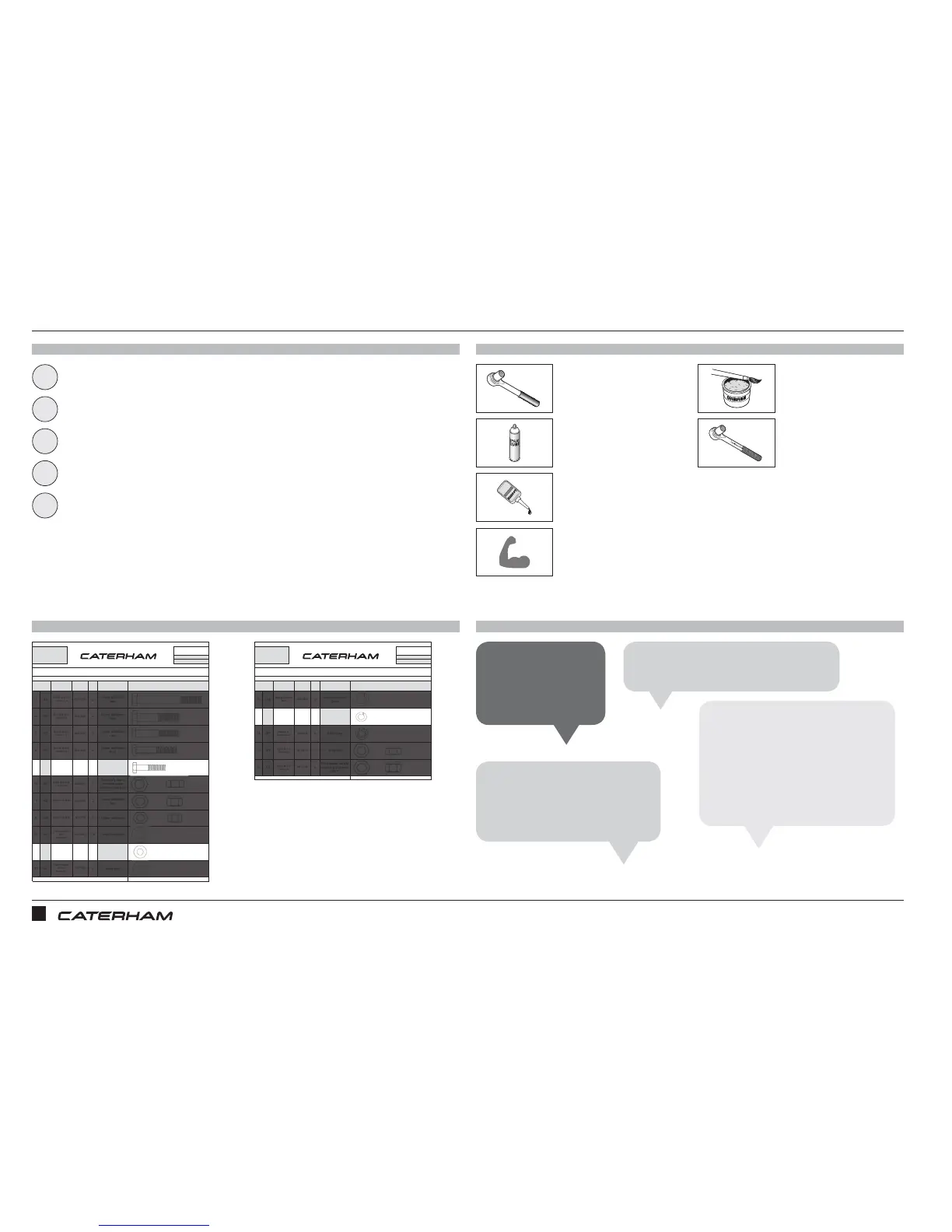

LAST PART OF THE FRONT SUSPENSION: CONNECTING THE TWO SIDES TOGETHER
PARTS
FIXINGS
TOOLS
TIPS
x4
x4
13mm
Anti-roll bar
Anti-roll bar rubber
Anti-roll bar bracket
Anti-roll bar dust cover
Anti-roll bar ball
x4
LOCT ITE
LOCT ITE
1
3
2
5
4
Getting the assembled anti‑roll
bar fully into both cups on the
upper wishbone can be a bit of a
fight. It’s made of springy stuff,
so don’t worry that you are
bending it.
Jamie A
Use four small cable
ties to secure the
dust cover.
Mick F
Grease the balls and cups generously.
Matt T
Check that the colour of the
mounting rubbers matches the
colour spot on the bar.
John K
