Cateye VELO WIRELESS+ - Mount the speed sensor; Mount the magnet

2
3
4
Appendix
SET
1
3
SENSOR ZONE
SENSOR ZONE
Max.
70 cm
(27”)
Mounting the computer
2

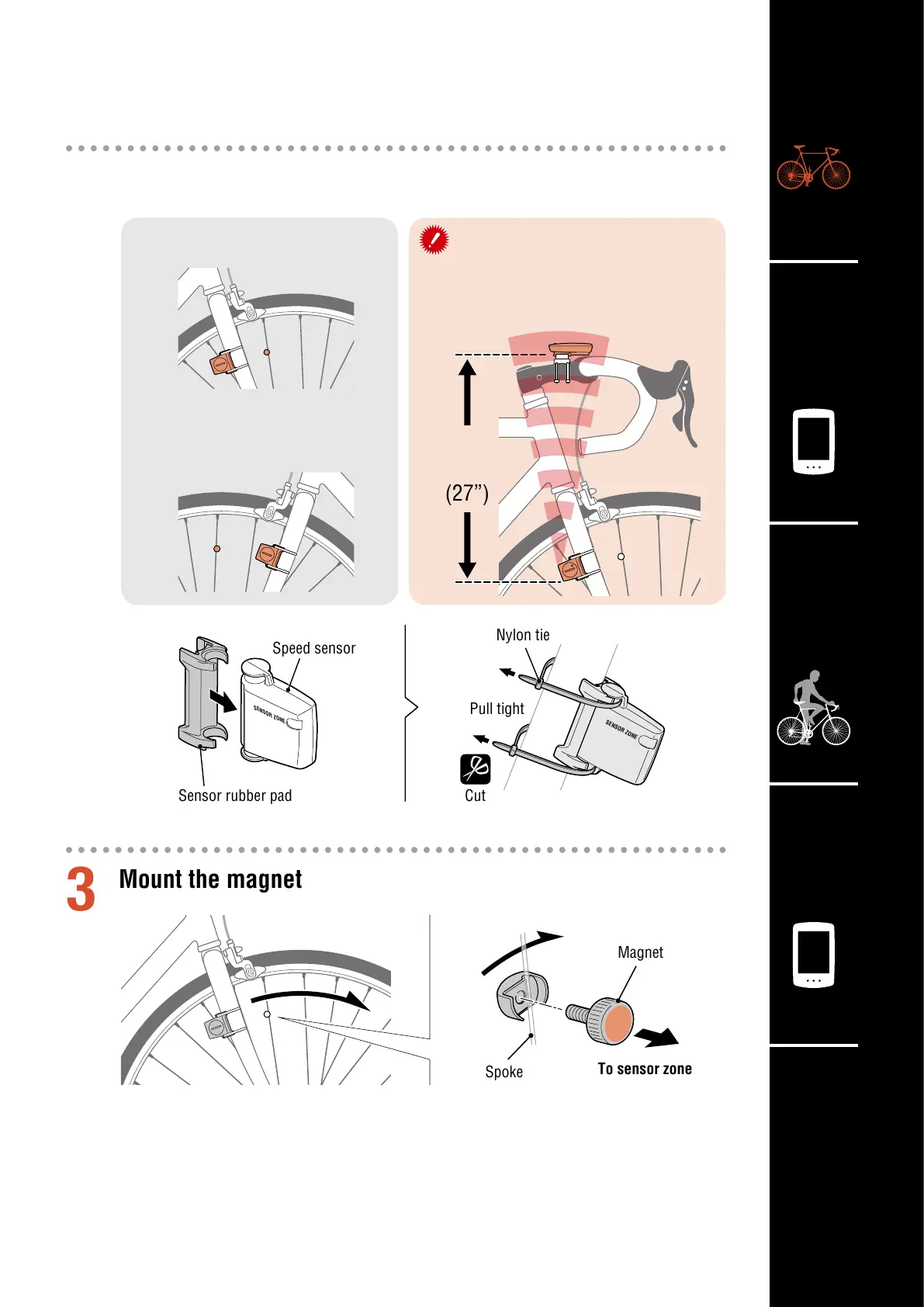

Mount the speed sensor
Mount the speed sensor in a posi-
tion where the distance from the
computer to the speed sensor is
within the signal range.
3
Mount the magnet
Speed sensor
CutSensor rubber pad
Nylon tie
Pull tight
•
Mounting on left front fork
•
Mounting on right front fork
To sensor zone
Spoke
Magnet
