OWNER’S MANUAL PAGE 15

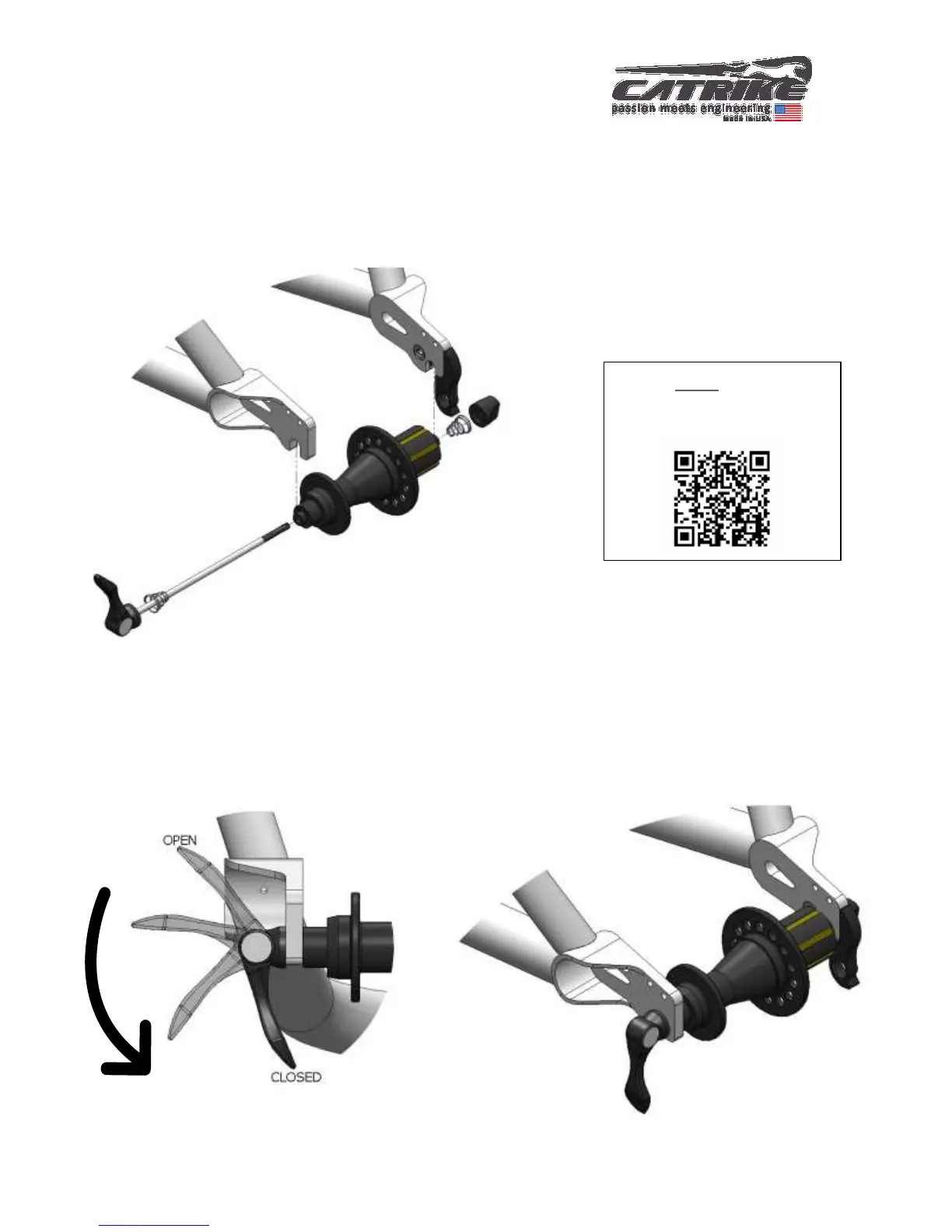

Installing the rear wheel
Insert quick release into the non-drive side of the hub and partially thread quick release nut.
Insert rear wheel into dropouts.
Push lever side of quick release against the outside face of the left dropout. With the lever in
the open position, tighten the quick release adjusting nut until nut contacts derailleur hanger.
Move the quick release lever to the closed position shown in the image below. Closing lever
should require a considerable amount of force. If lever is easy to close, reopen quick release
lever and turn adjusting nut an 1/8 of a turn. When sufficient clamping force is achieved, the
lever should leave an imprint on your palm. Repeat until clamping force is sufficient.
