OWNER’S MANUAL PAGE 31
Install the chain
Start at the chain rings in the front of
the trike. Run the chain through the
front derailleur; between the main cross
member and the tie rod; through the
upper chain tube; under the idler wheel;
over the rear cassette; through the rear
derailleur and back through the lower
chain tube.
Now you can use the MasterLink to connect the chain together.

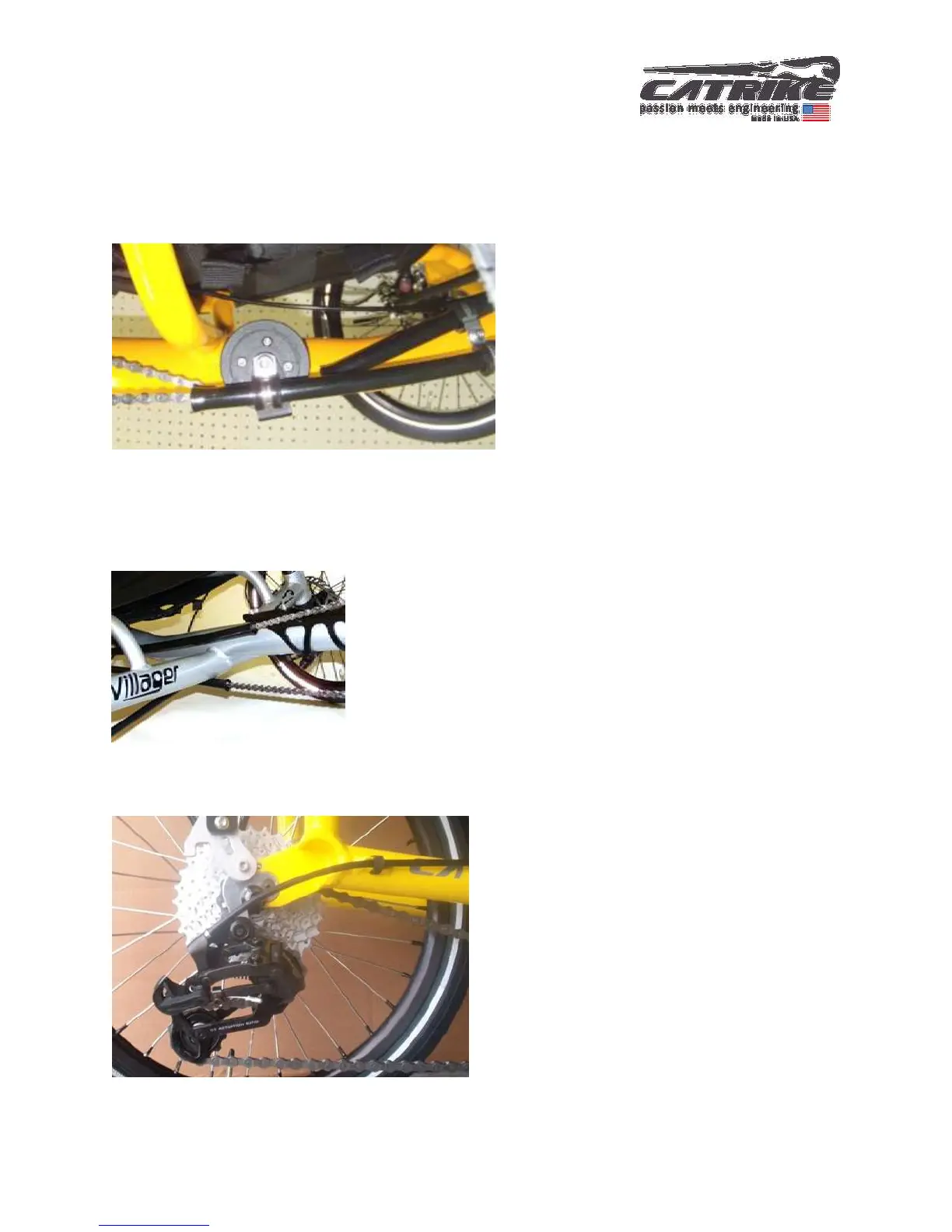

Note the chain routing (left) there is a chain guide tube
(return) running beneath the cross member. The drive part
of chain runs underneath the black guide pulley and over
the top of the chain ring.
It's easier to thread the chain if you
immobilize the crank. This can get messy!
Protect your work surface and keep paper
towels handy. It's easy to thread the chain
through the rear derailleur cage incorrectly.
Make sure the chain runs cleanly through
it, and not over the retaining tabs.
