Speaker Connection
13
Attach the positive from your speaker to the 4 or 8
ohm terminal and the negative to the 0 ohm
terminals separately. If your speakers are 6 ohm, 4
ohm or 8 ohm (recommended) terminal is
preferential and it would not cause damage to the
amplifier.Connecting the left and right speakers
according to the guidance can make sure of the
acoustic fidelity.
Connect the speaker cables with the amplifier after it is
well connected with the speakers.
Connect both of the speakers to make sure of the
acoustic fidelity.
Please notice the signal direction indication of the
cables.
Do not mix up the positive and negative ends of speaker
cables or it will cause short circuit.
•
•
•
•
1. Unscrew the terminal knob
2. Insert the speaker cable
3. Screw the terminal knob
Check the impedance of your speakers:
NOTE:

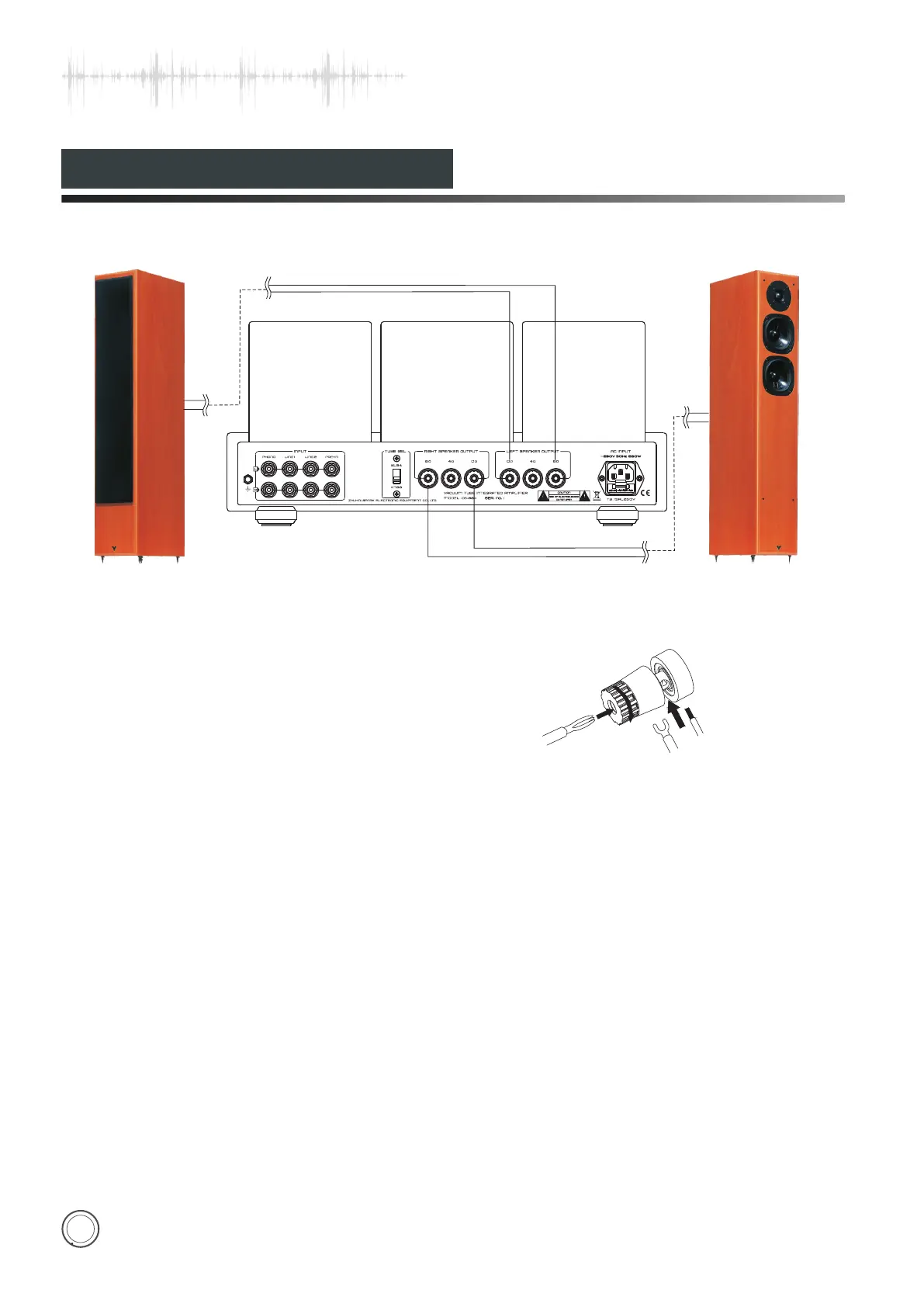

Connection of speaker cables:
BLACK
RED
BLACK
RED
speaker（Left） speaker（Right）
Banana plug
Normal plug
CS-88A
ZH UHAI SPA R K E LECTRO NIC EQUIP M ENT CO., LTD.
T3.15AL250V
TUBE SEL.
EL34
KT88
PRE IN
PHONO
LINE1 LINE2
