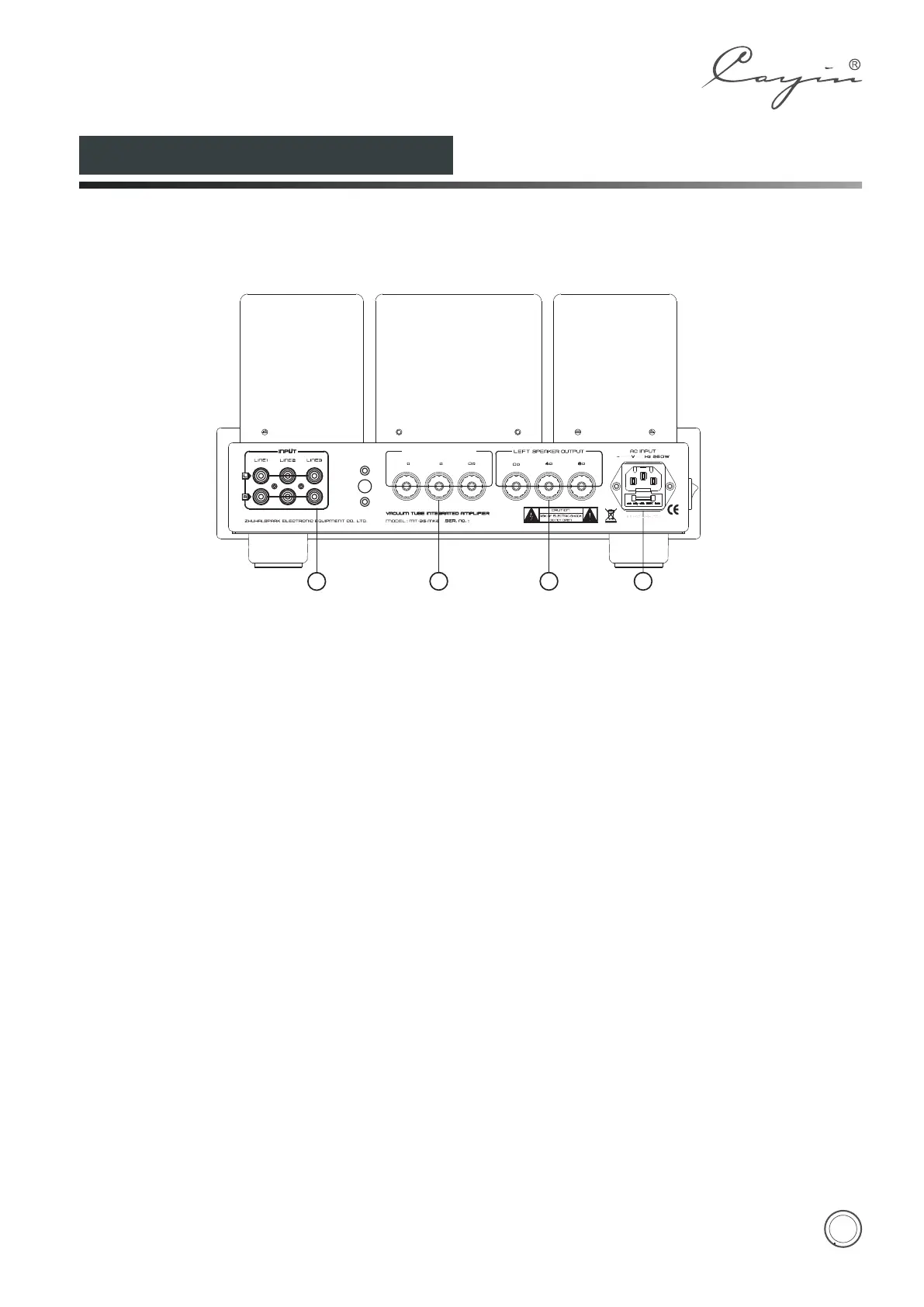

Rear Panel
1. Signal Input Terminal
Used for audio source input.
2. Right Channel Output
Used to connect with the right channel of speaker.
3. Left Channel Output
Used to connect with the left channel of speaker.
4. Power Socket with Main Fuse
Main fuse is located just below the power socket.
Replace the fuse with the same type as indicated.
