37

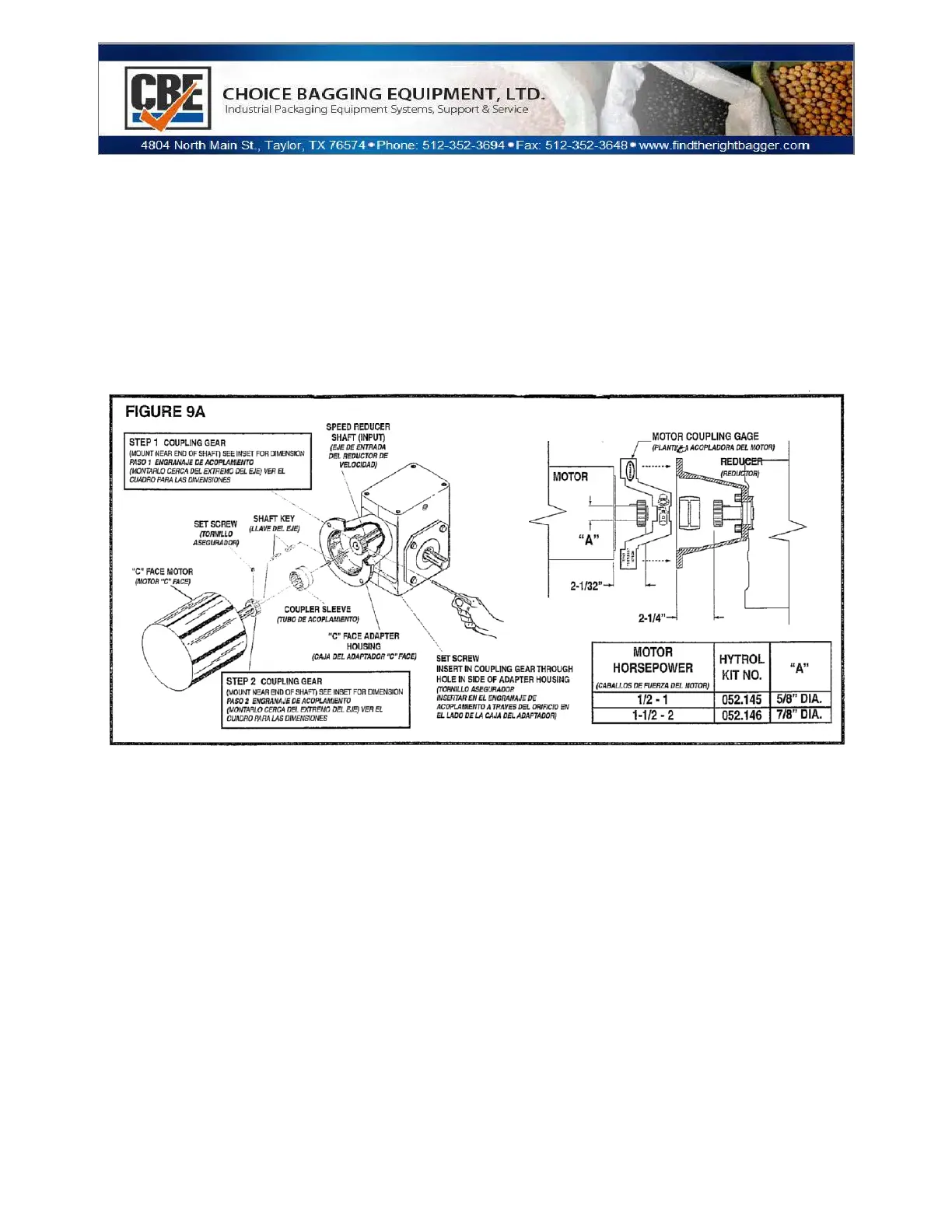

Align motor mounting holes to C-Face adapter and install mounting bolts.
"C" Face adapters use a plastic coupling to connect the motor to the reducer input shaft.
The gears nest inside the plastic coupling.
It is important for these gears to be properly spaced on the shafts. Incorrect gear setting
can result in excessive coupling noise and bearing failure.
*************
Included in this manual are parts drawings with replacement parts lists. Please contact our parts
department at 512-352-3694 for assistance ordering parts for your system.
