Digital Video Security Systems

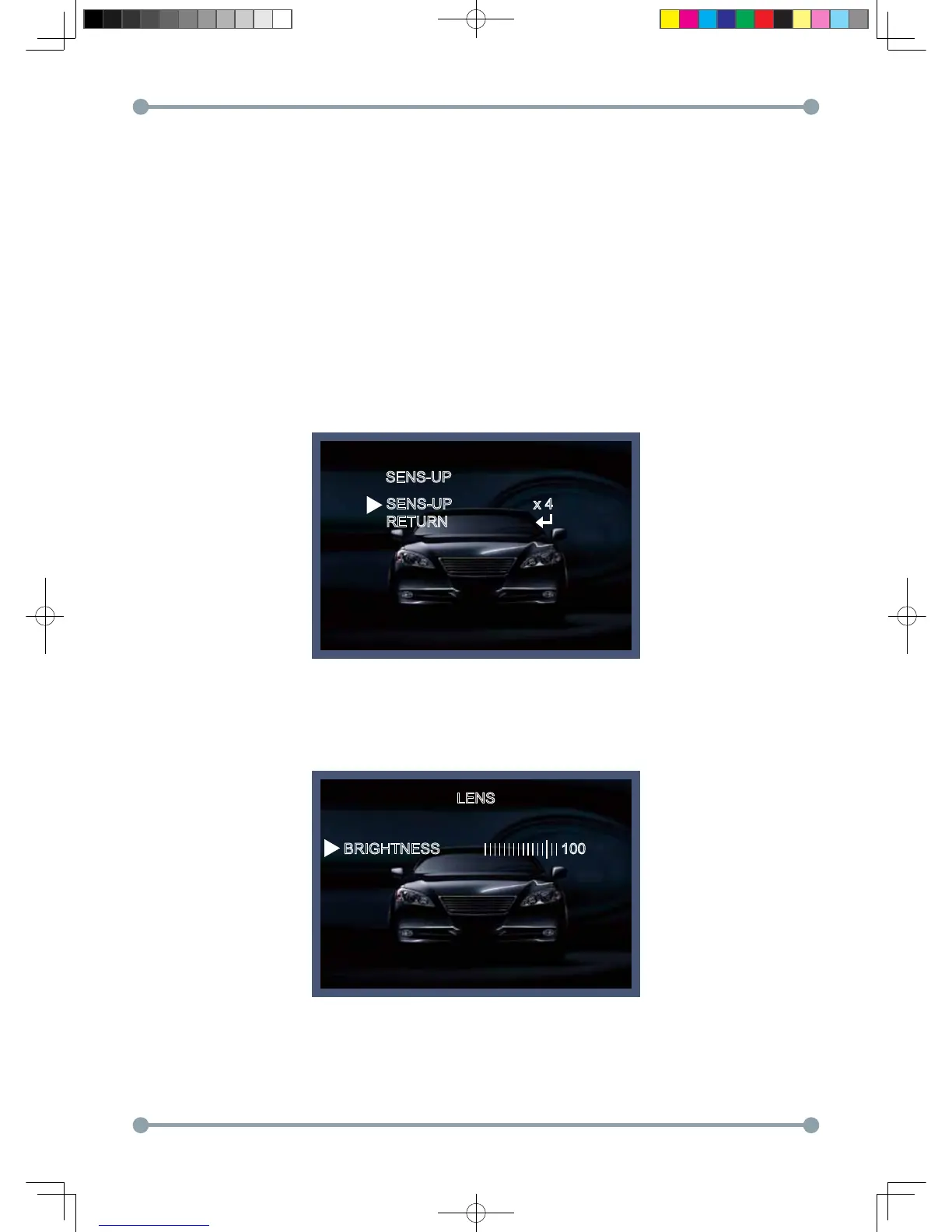

HD-SDI DNR DAY & NIGHT COLOR CAMERA
SENS-UP
SENS-UP
RETURN
x 4
* AGC(AUTO GAIN CONTROL):
A higher gain increases brightness but also increases any noise.
OFF : Deactivates the AGC function
LOW : Sets automatic gain control to LOW.
MIDDLE : Sets automatic gain control to MIDDLE.
HIGH : Sets automatic gain control to HIGH
* SENS - UP:
At night and/or in dark conditions, the Sens-Up mode can be selected to desired value from x2 ~ x256.
* When DC is selected, the brightness can be adjusted. The brightness control range is 1 ~ 100.
LENS
BRIGHTNESS 100
