Digital Video Security Systems
HD-SDI DNR DAY & NIGHT COLOR CAMERA
3DNR is used to reduce the level of background noise in a low luminance environment.

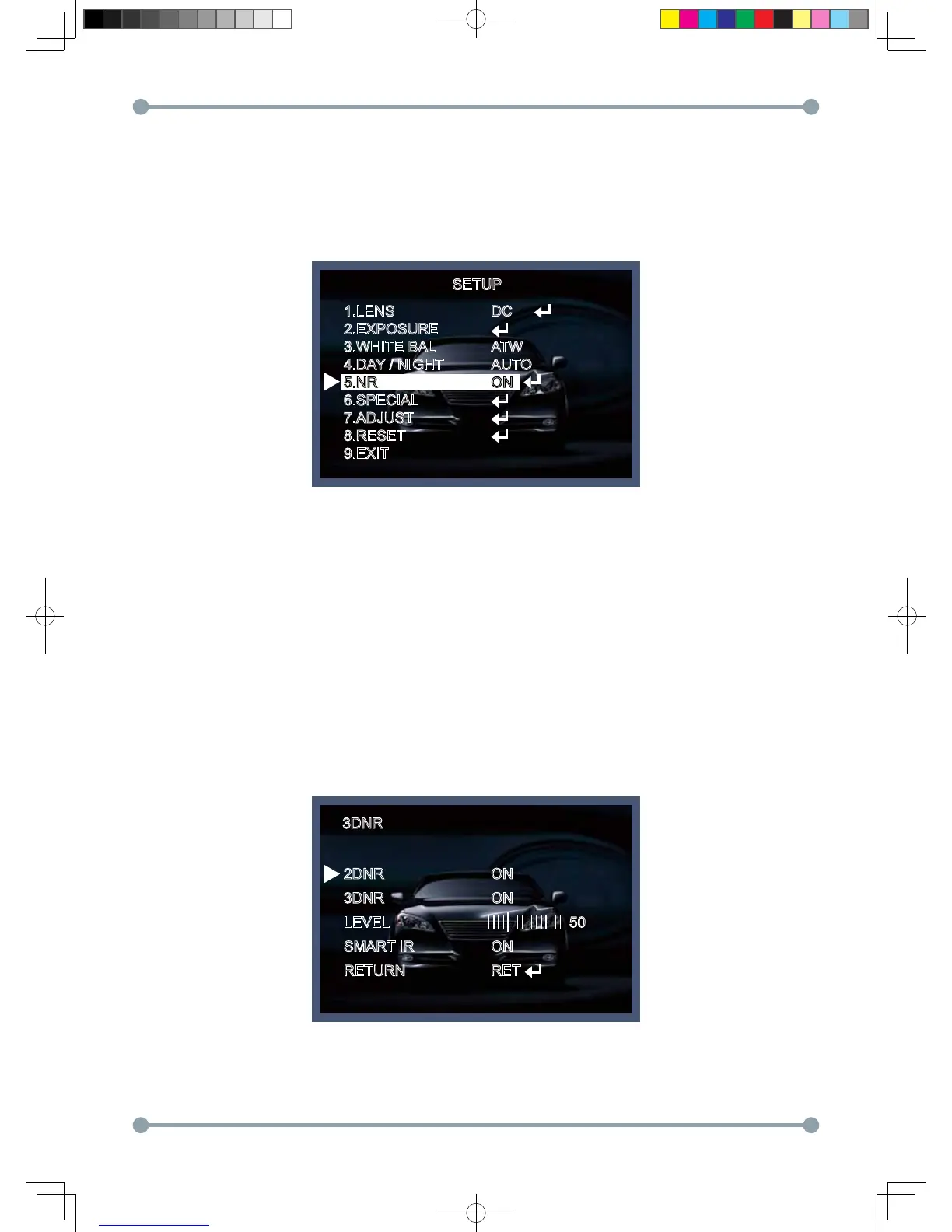

1. Move the arrow indicator to NR by using the Up and Down button.
2. Select whether or not to activate 2DNR by using the Left and Right buttons.
: based on noise variance from AGC value
: 2D-edge preserving & flat area noise reduction
3. Select whether or not to activate 3DNR by using the Left and Right buttons.
: motion adaptive temporal IIR filtering
: edge preserving & ghost elimination
: adaptive weight control by noise level
* Select RETURN by using the Up or Down button to return to Set Up menu.
NR
3DNR
2DNR
3DNR
LEVEL
SMART IR
RETURN
ON
ON
50
ON
RET
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
AUTO
ON
