that the water outlet is not pushed too far into the waste
standpipe. The lowest part of the water outlet should be
level with the bottom basket of the dishwasher.
• When connecting to the sink, ensure that the waste pipe
runs higher than the level of the sink bowl to prevent
syphoning.
Fitting the Integrated Appliance Door
Where non-standard integrated appliance doors are supplied,
additional fitting instructions are required to ensure compatibility
with this product.
The machine is supplied with a fitting template and these
instructions should be followed as normal.
However, the fitting template needs to be located lower down the
fascia door; this is shown below.

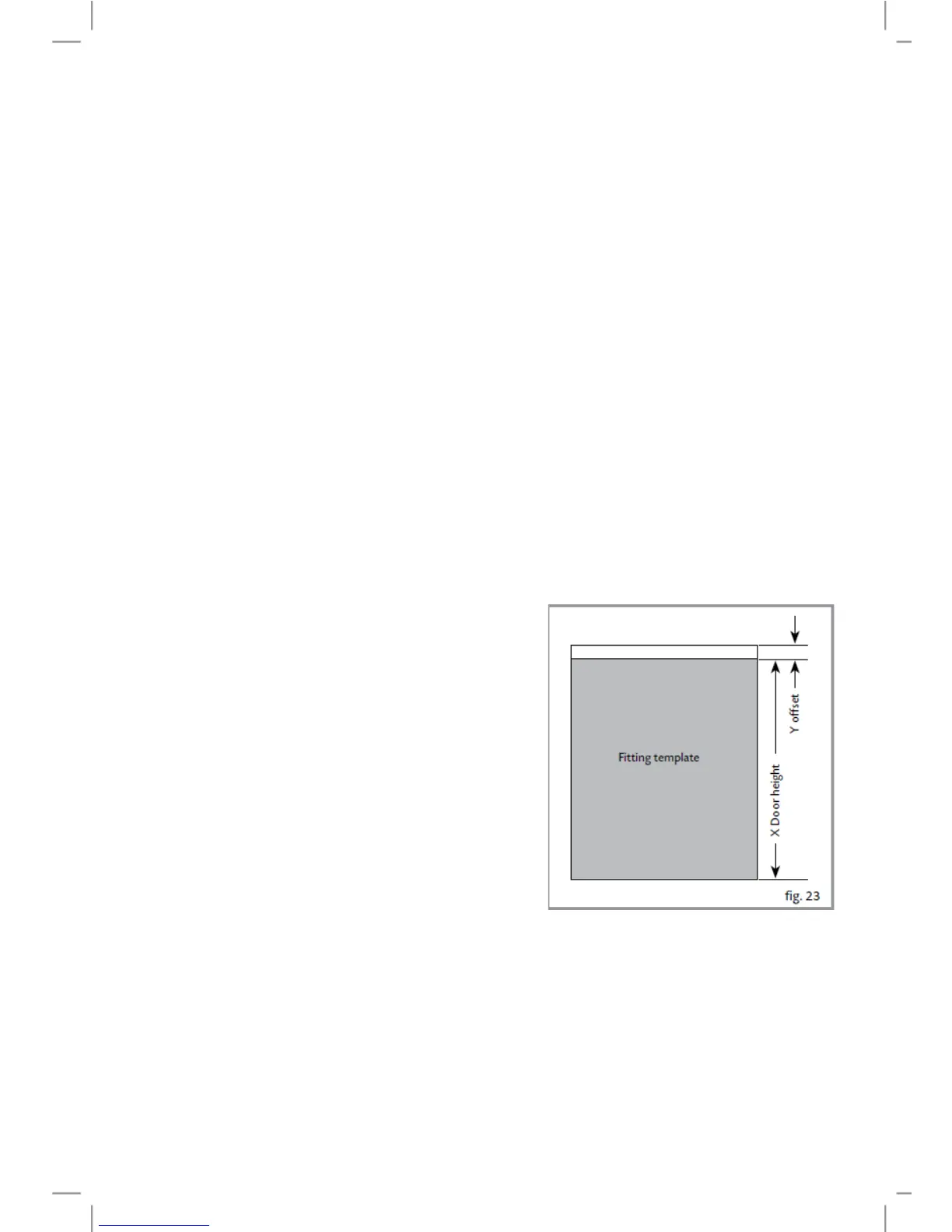

The amount of offset, Y, depends on
the height of the fascia door and can
be calculated as X = 723mm.
For example, if you have a 731mm tall
fascia door and are fitting a door to
your dishwasher,
then Y = 731-723 = 8mm.
Ensure that the hinge tensioners are
adjusted to balance the weight of the
door.
