PLACING INTO SERVICE
PLACING INTO SERVICE
Metal-bodied Pigs
As a transmi er deployed with a metal-bodied pig must be mounted
outside the pig casing, installa on of a transmi er fl ange is required.
Flange kits are available for all T-series transmi ers except the T3. (See
Accessories, pg. 31)
Metal-bodied TransmiƩ ers (T0, T1A/HP/VHP, T4A):

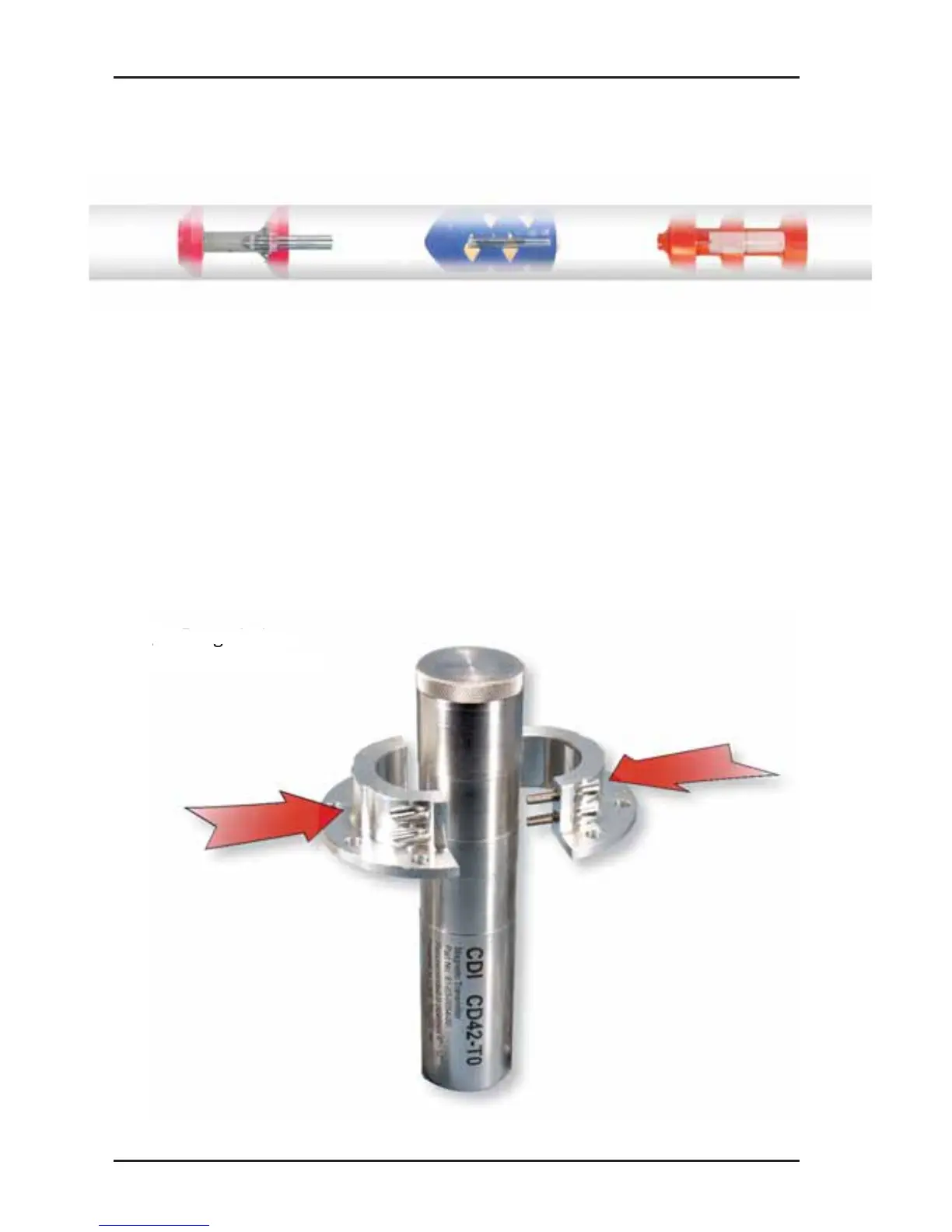

Align fl ange halves
with machined groove
gn fl ange halves
th
m
g
m
ac
h
ined
g
roov
e
