CDI CD42-T1A - All Models Mounting; Foam and Plastic Pigs Installation

22 Hz ELECTROMAGNETIC TRANSMITTER USER GUIDE
Page 36 of 52
PLACING INTO SERVICE
All Models

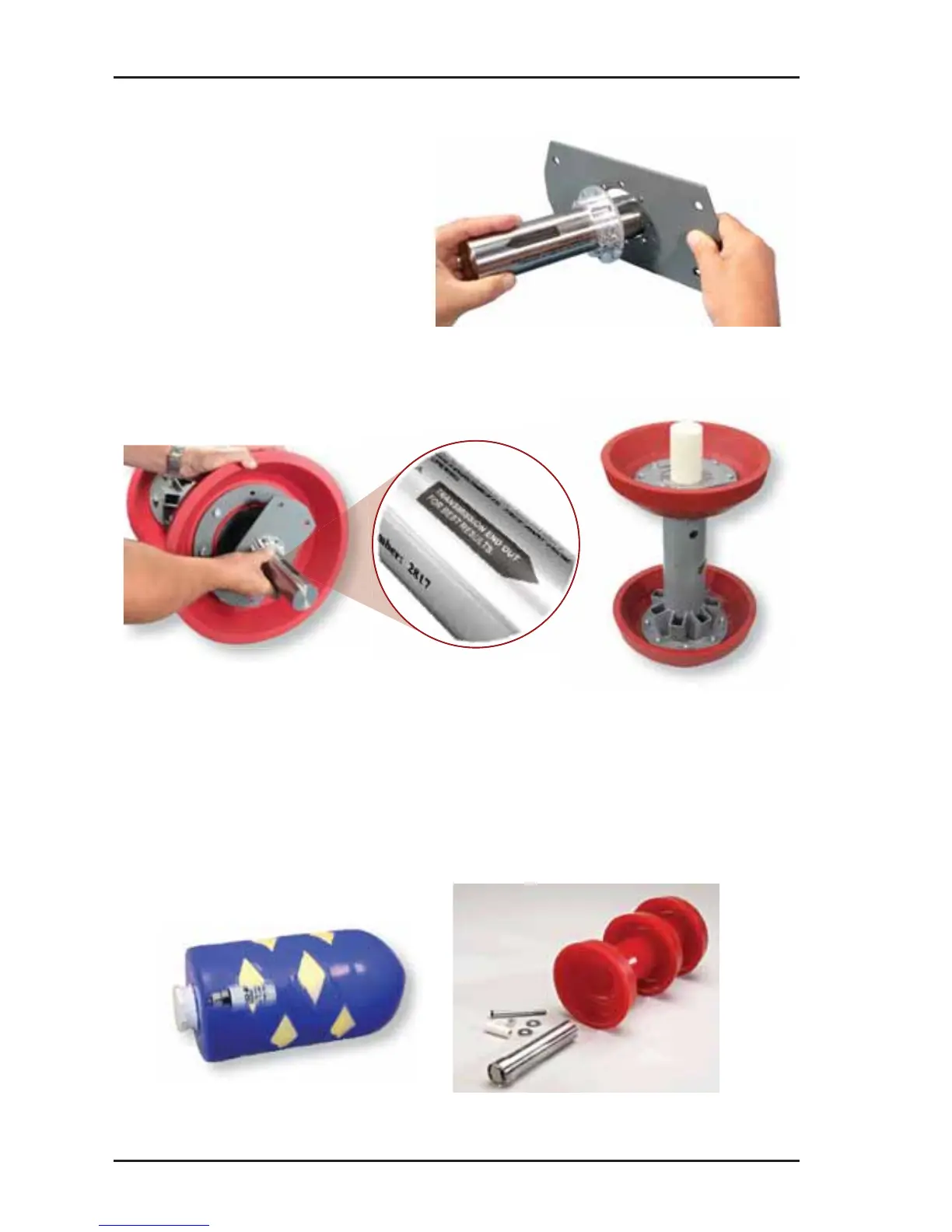

Mount fl anged transmi ers
directly to pig or moun ng
plate (where applicable).
Mount securely to pig with transmission coil out. (If not marked, coil
end is usually opposite of end cap.)
Foam and Plas c Pigs
Remove plug or bolt.
Place transmi er in cavity (align transmi er in either direc on)
Replace plug or bolt
